Project Gallery

Surface Clean

Feb 20, 2019

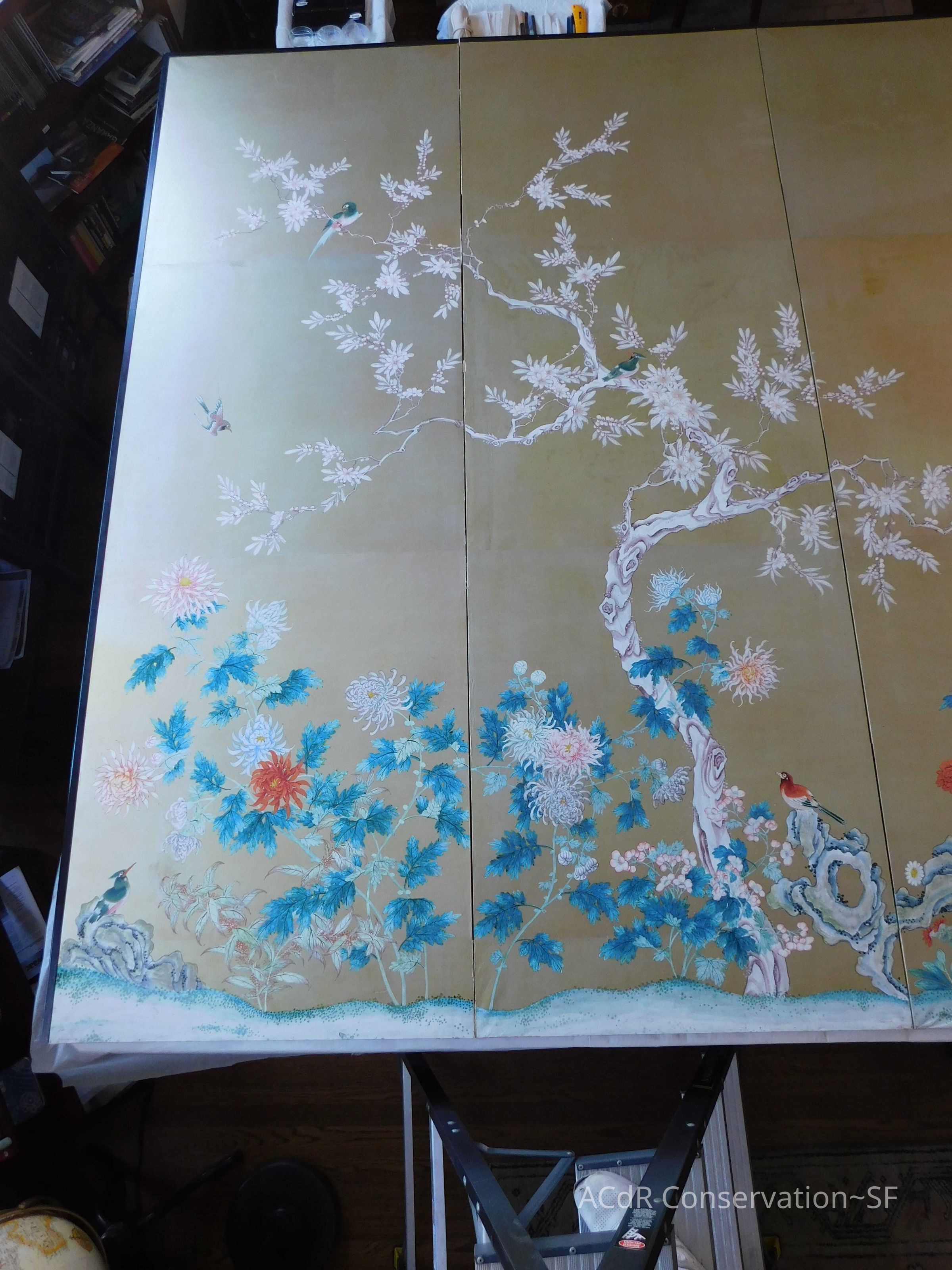

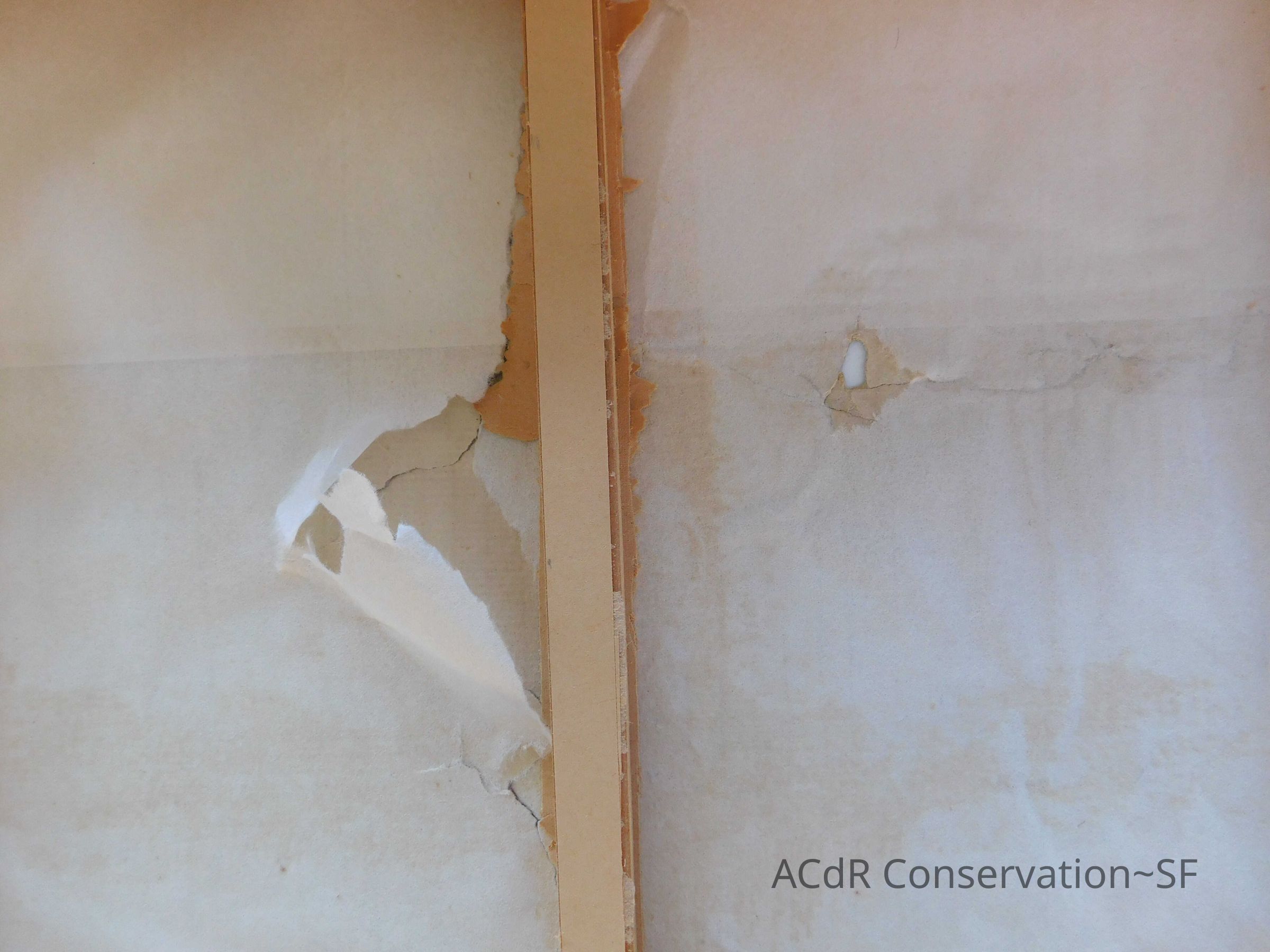

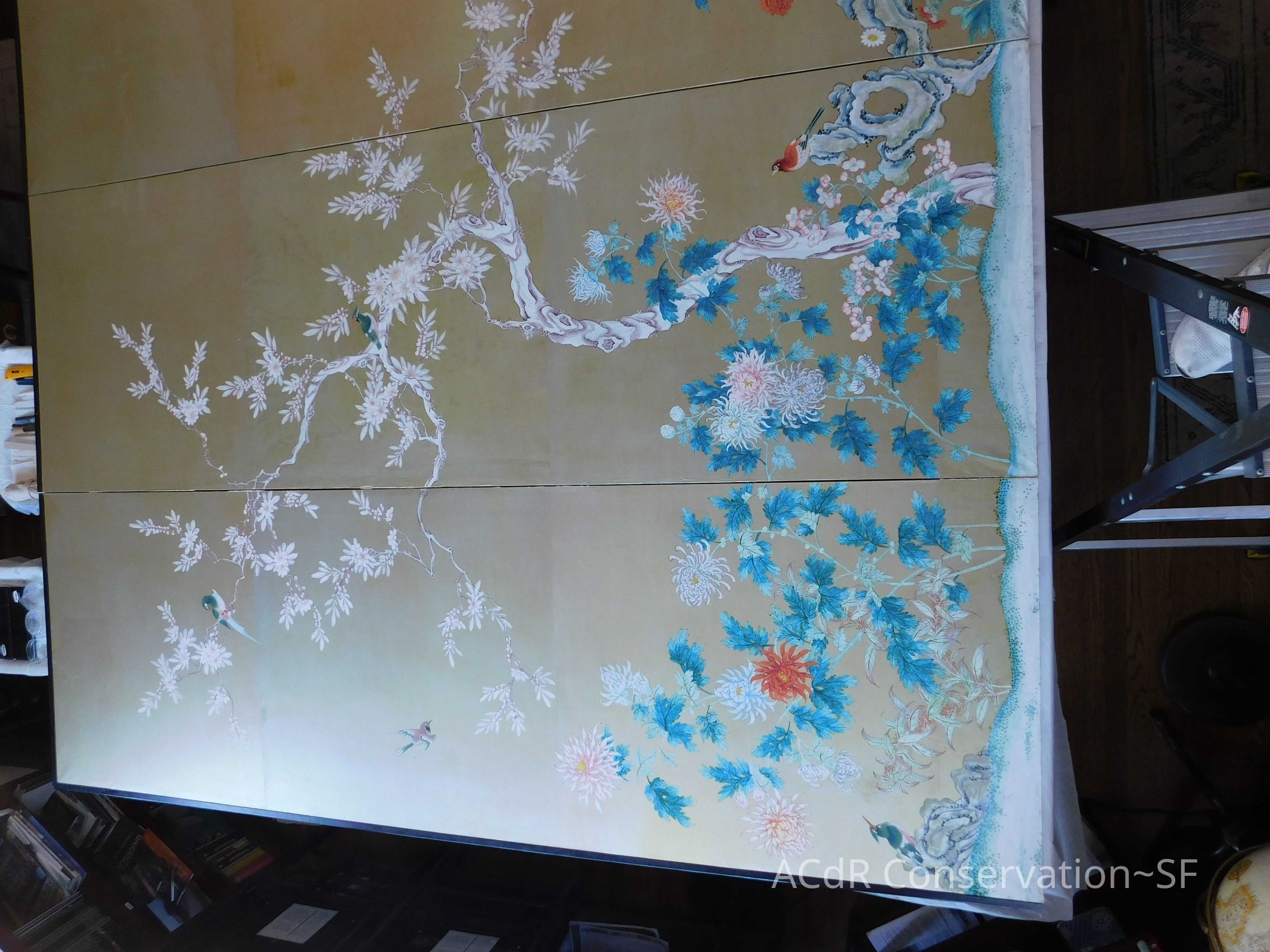

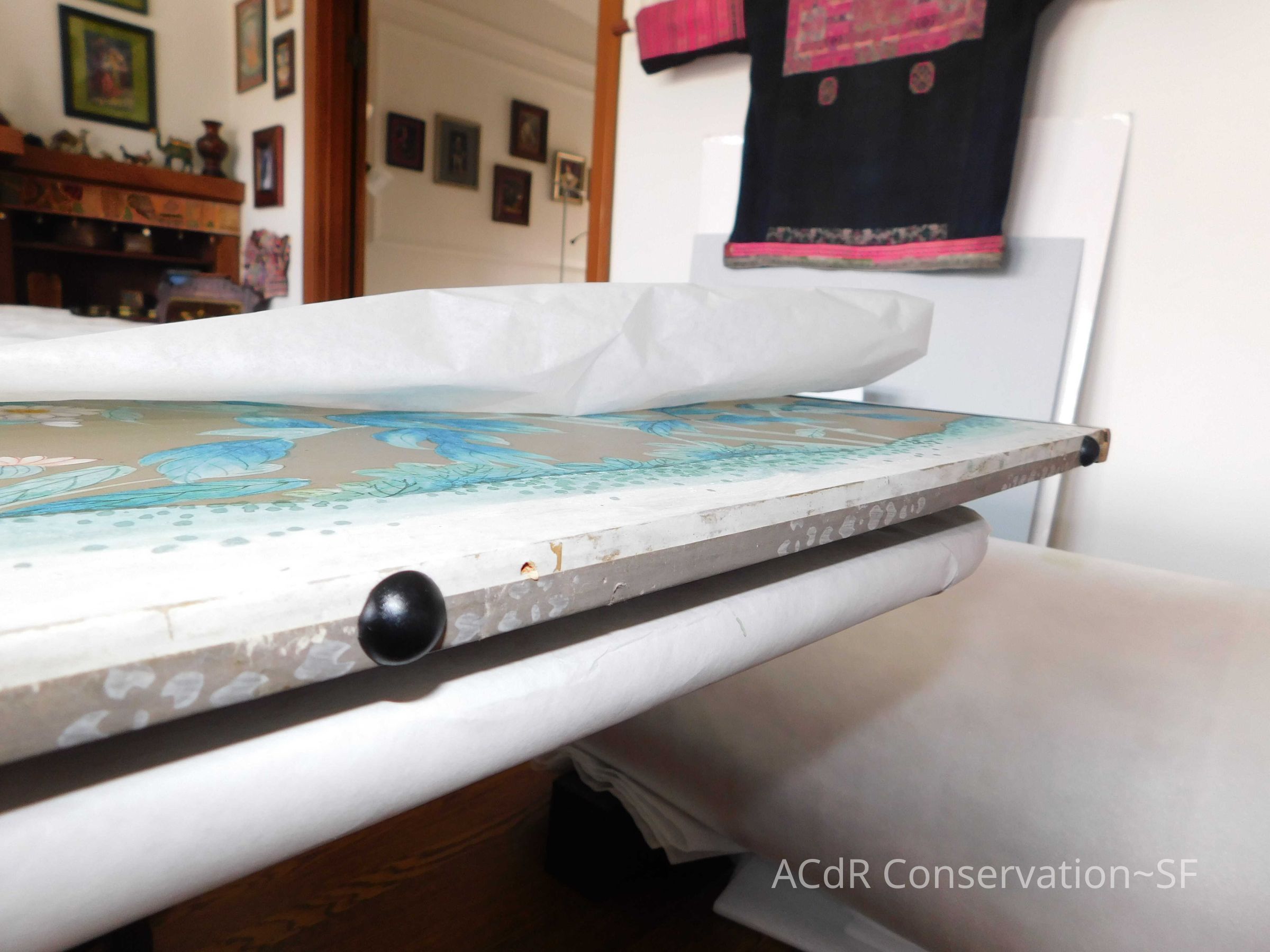

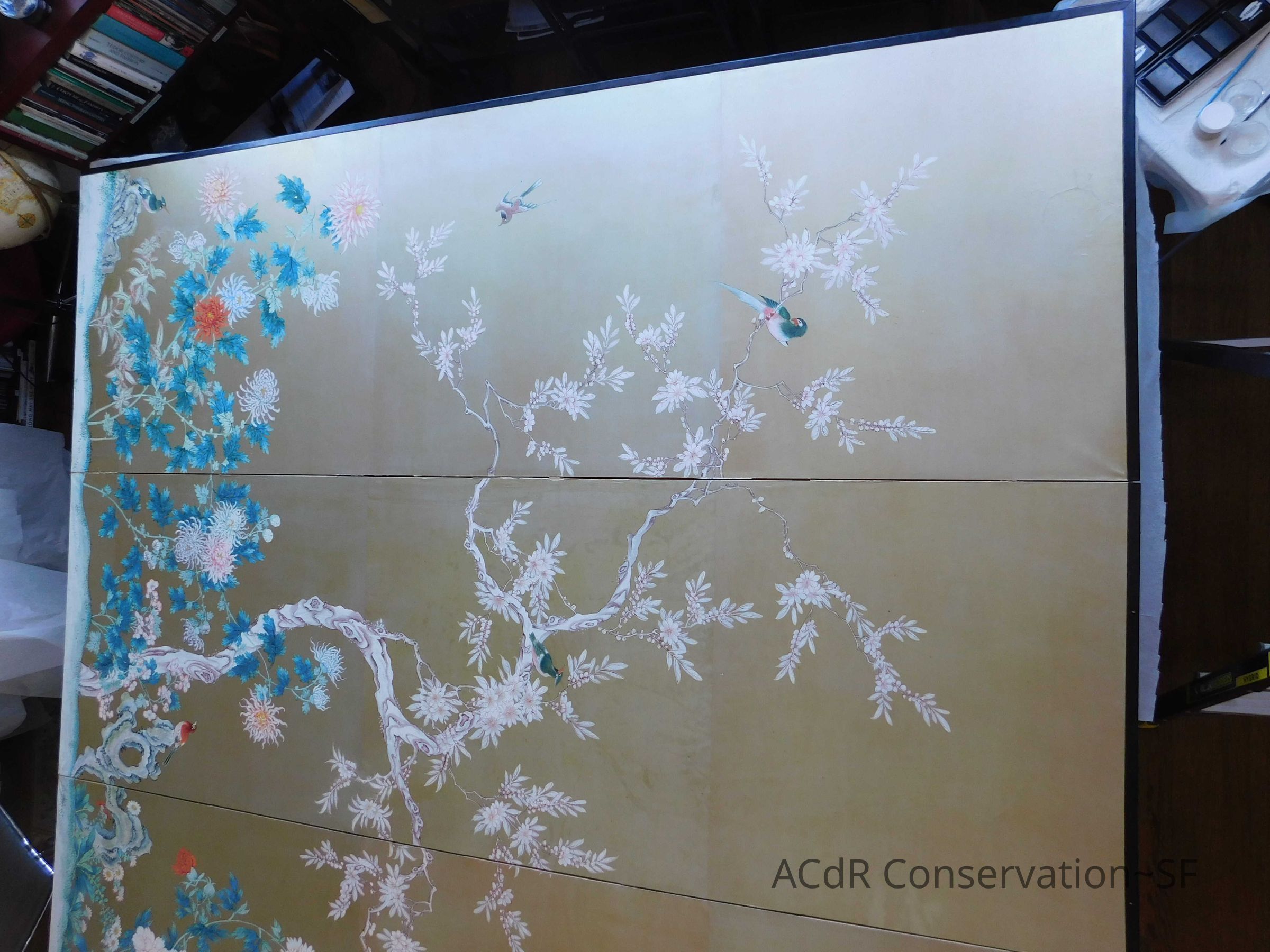

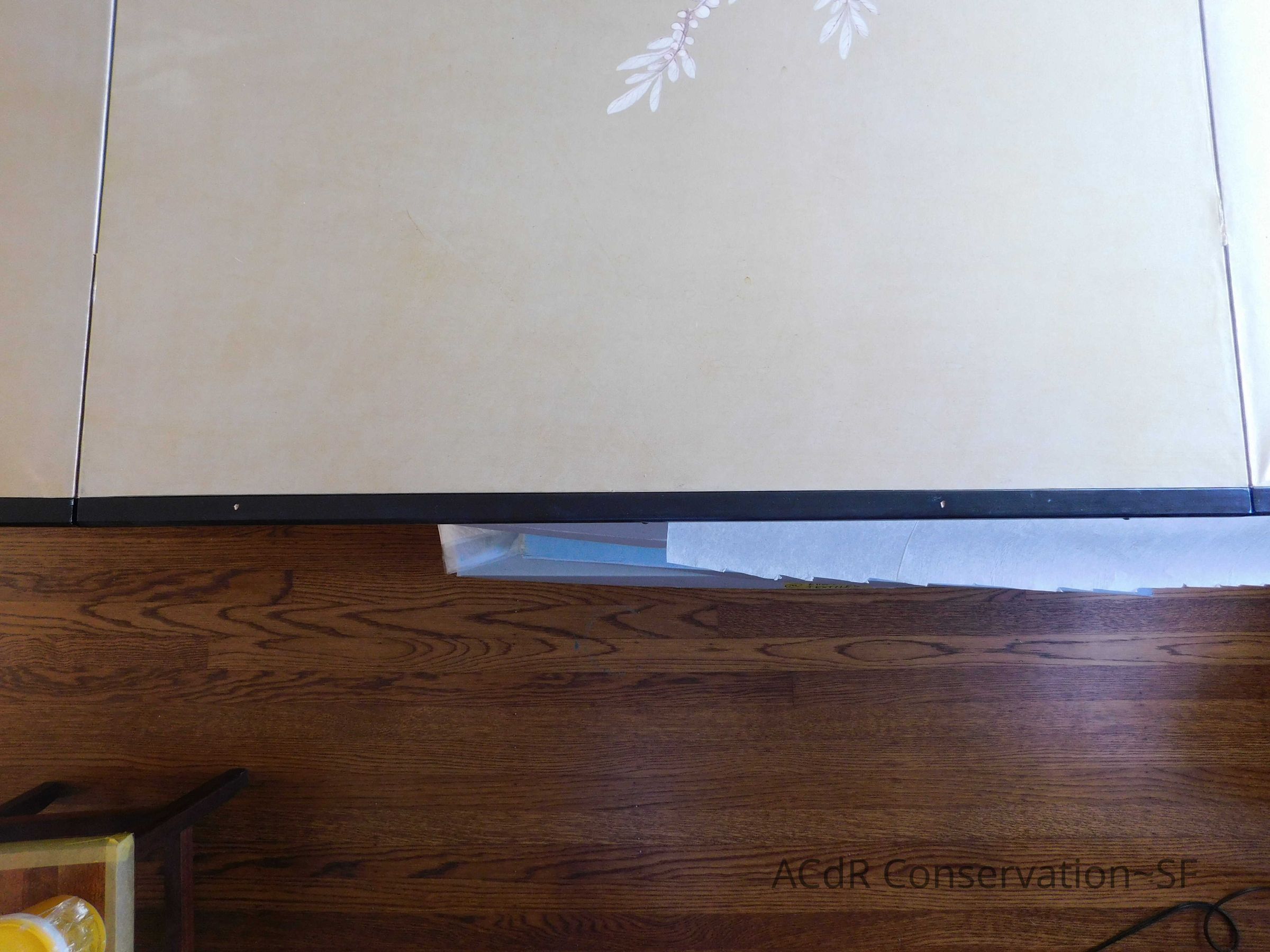

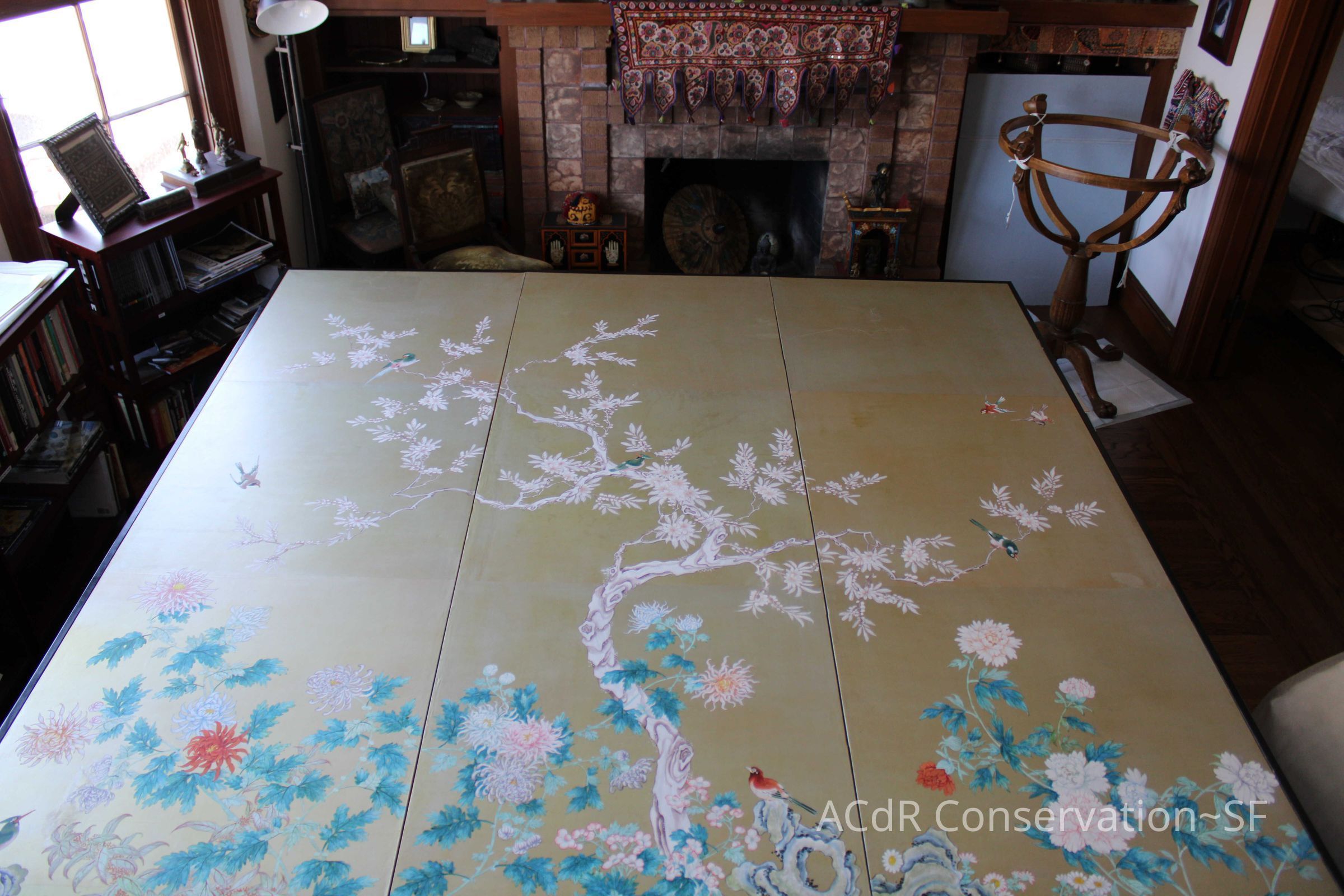

Surface cleaning of two holes on the screen with a soft brush. Set up tables and foam to rest the screen open face.

Humidification

Feb 20, 2019

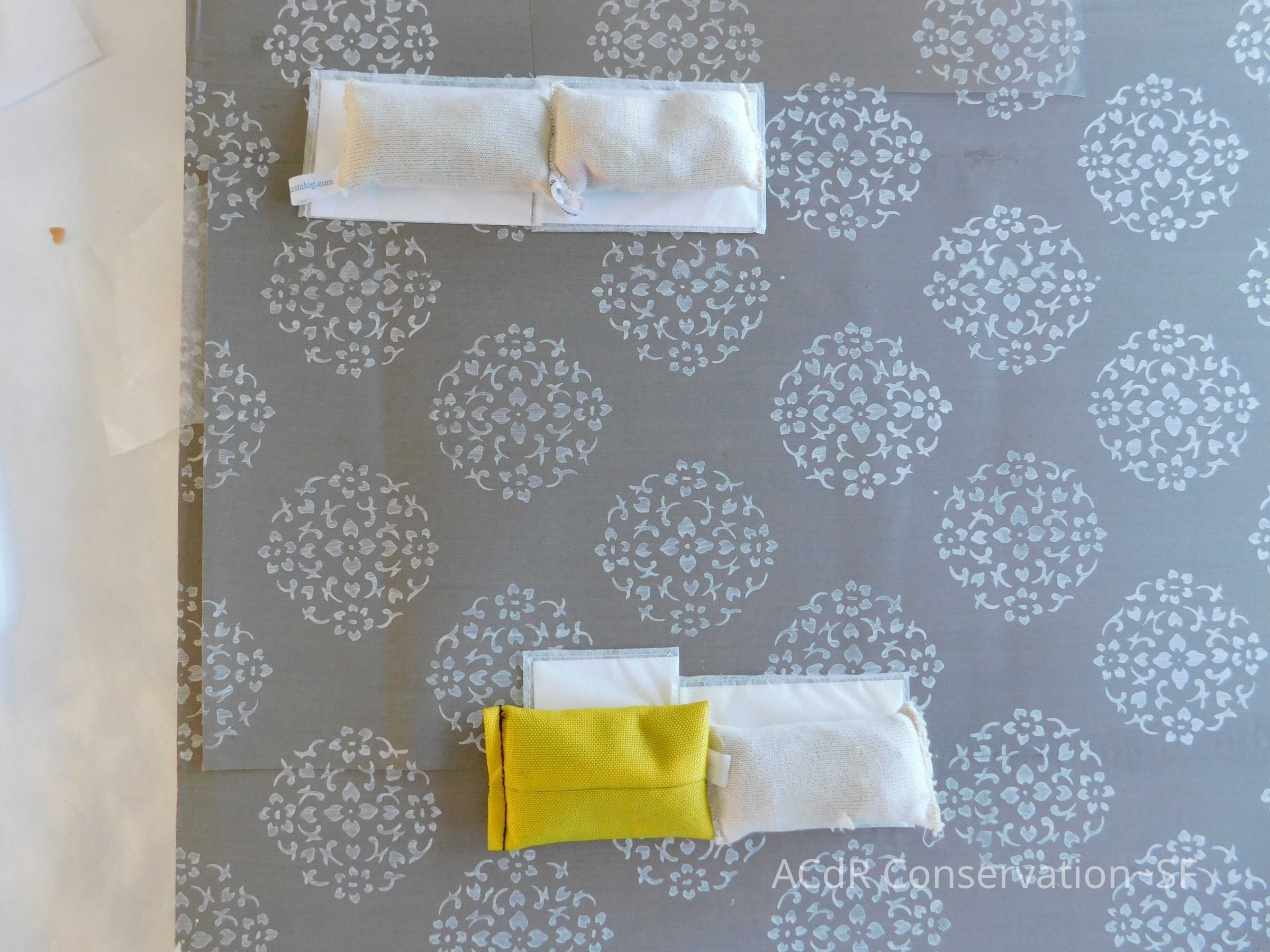

Humidified bigger hole locally using a plastic bag, a piece of Mylar, a piece of wet blotter paper, eight pieces of Hollytex, and a piece of felt. After mending tears, humidified first layer (with drawing) by brush from back side, and pressed into sandwich layers to flatten the first layer.

Adhesive Repair/Removal

Feb 20, 2019 - Feb 22, 2019

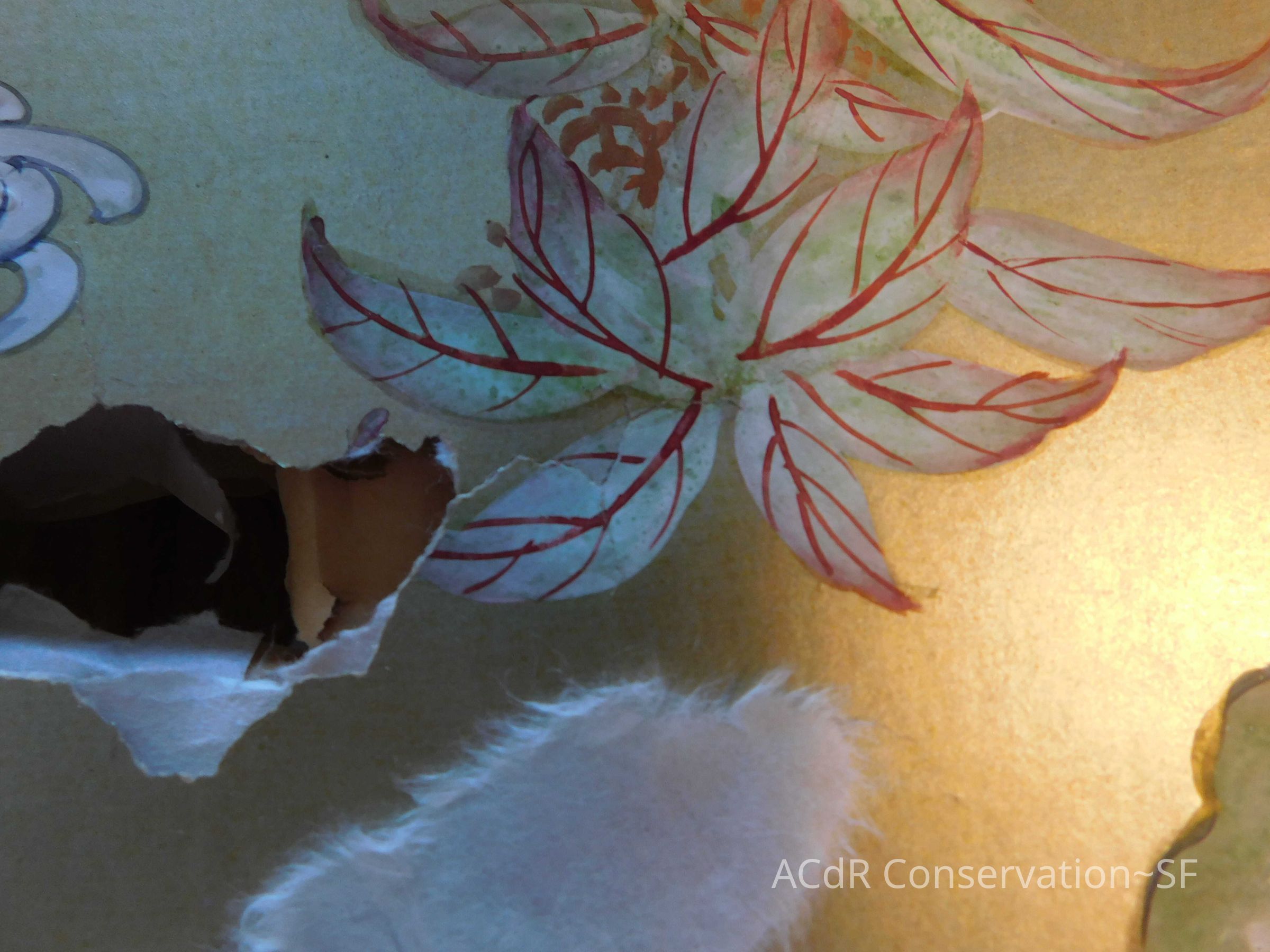

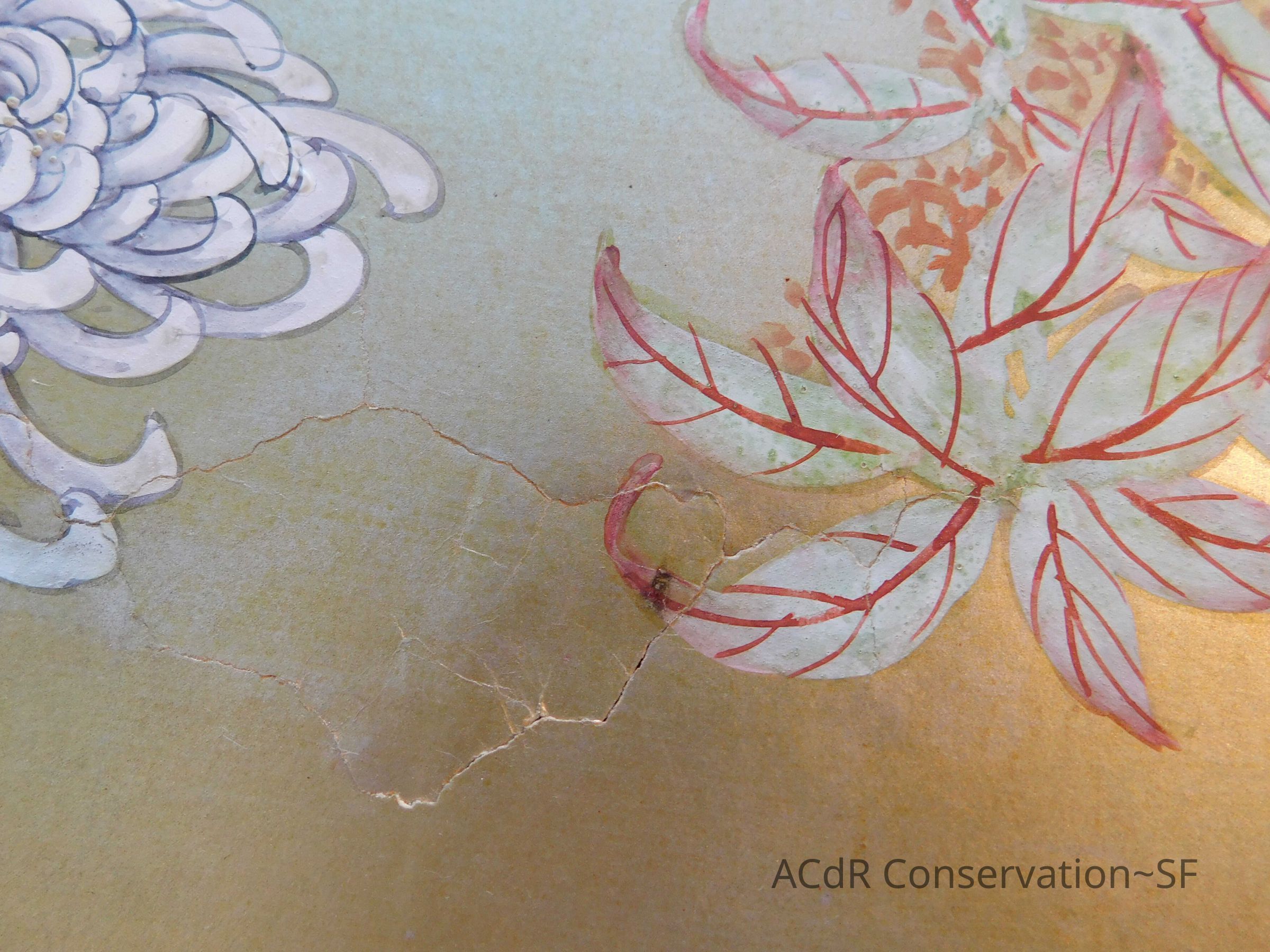

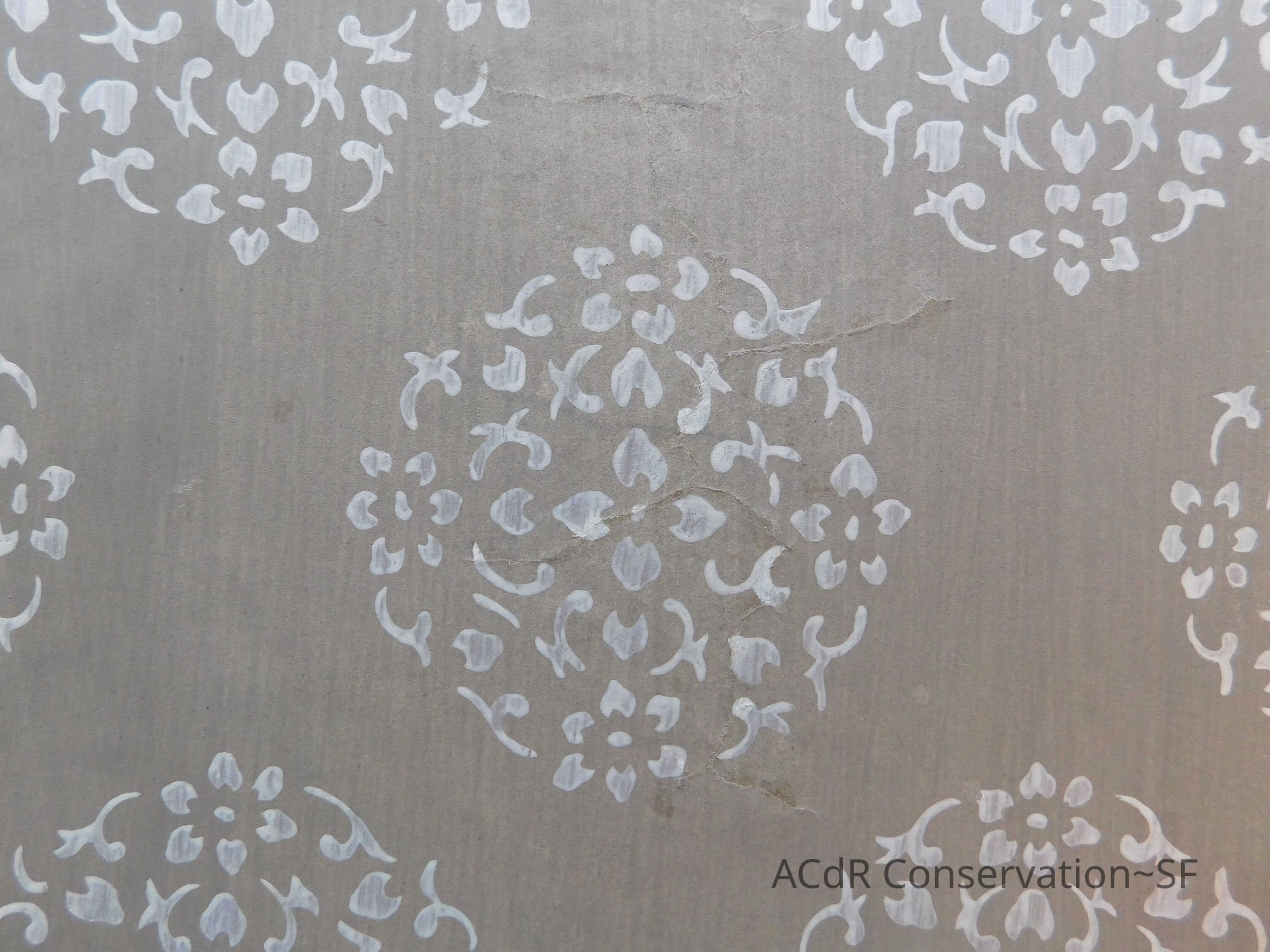

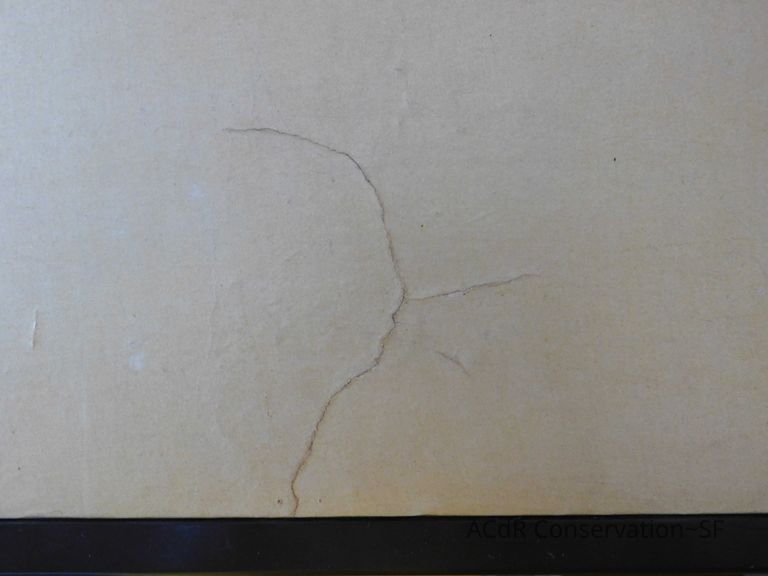

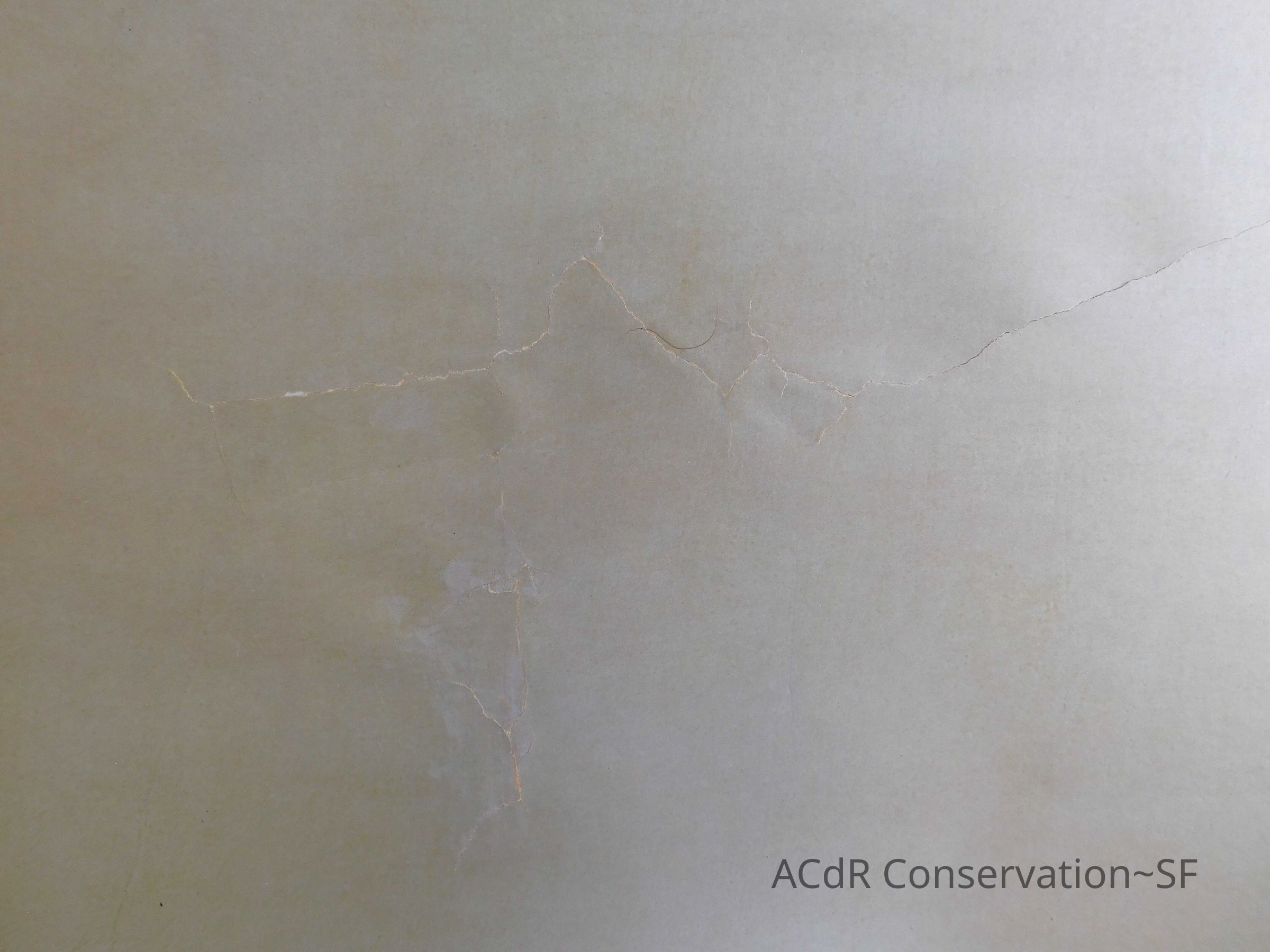

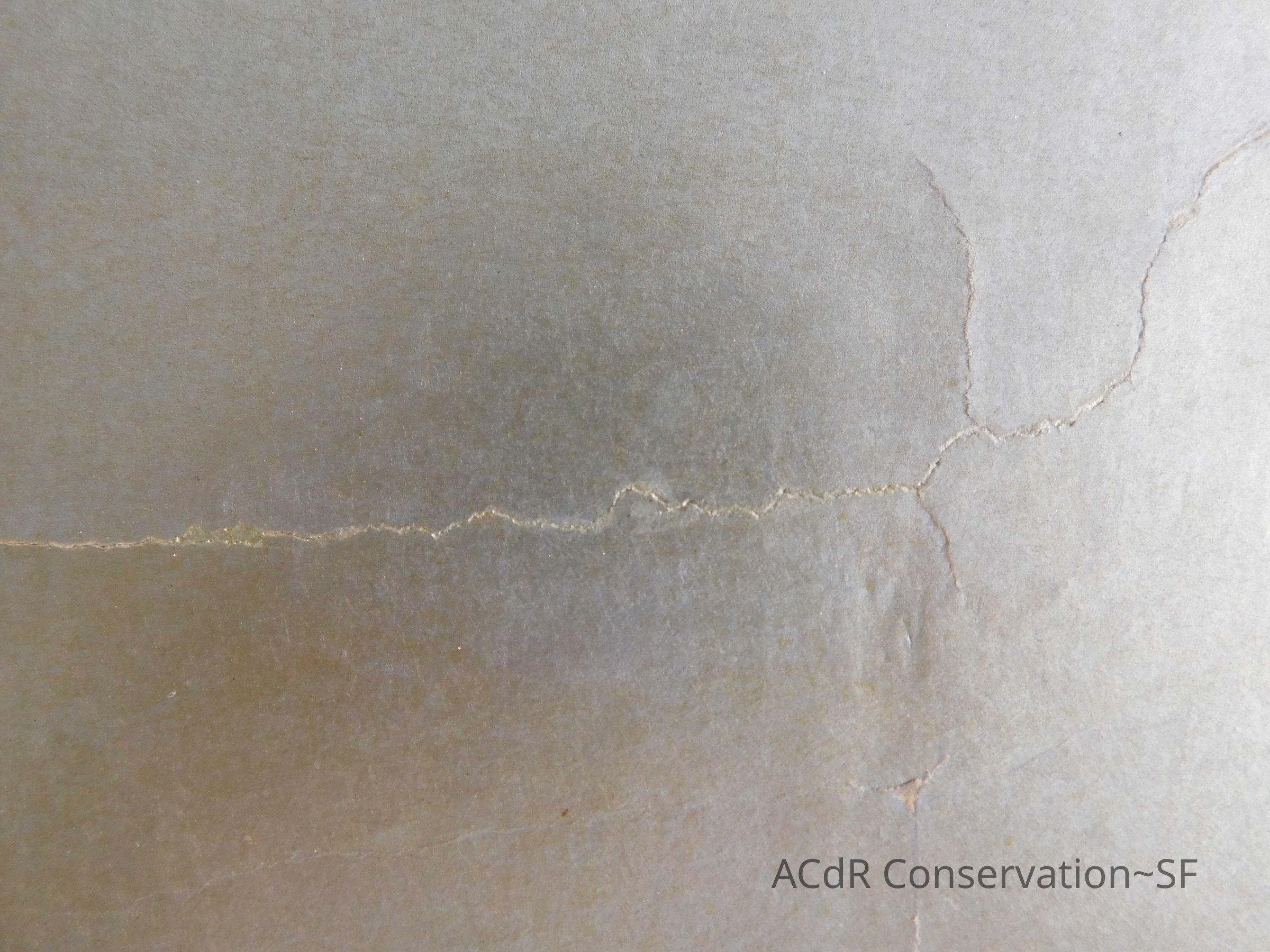

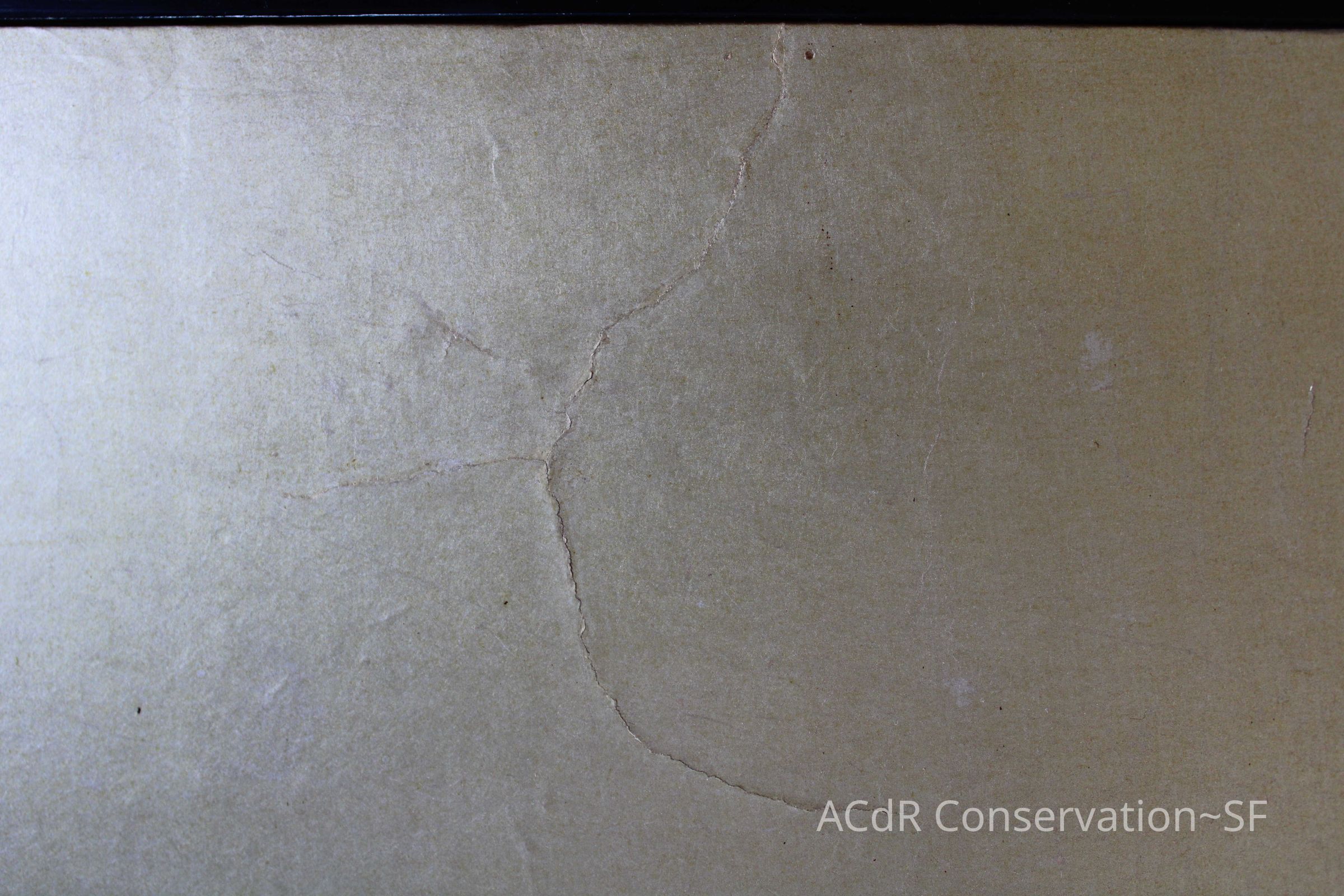

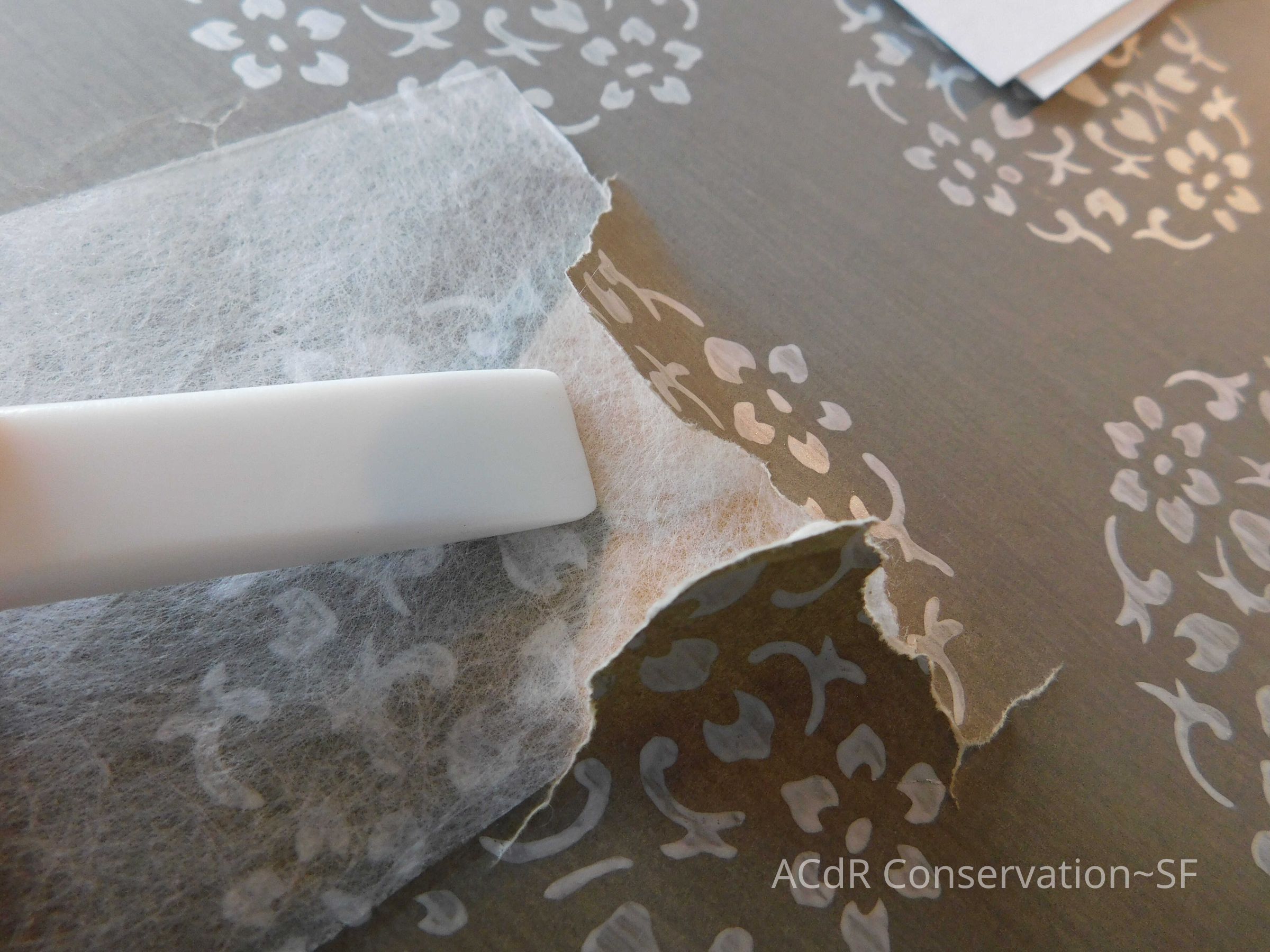

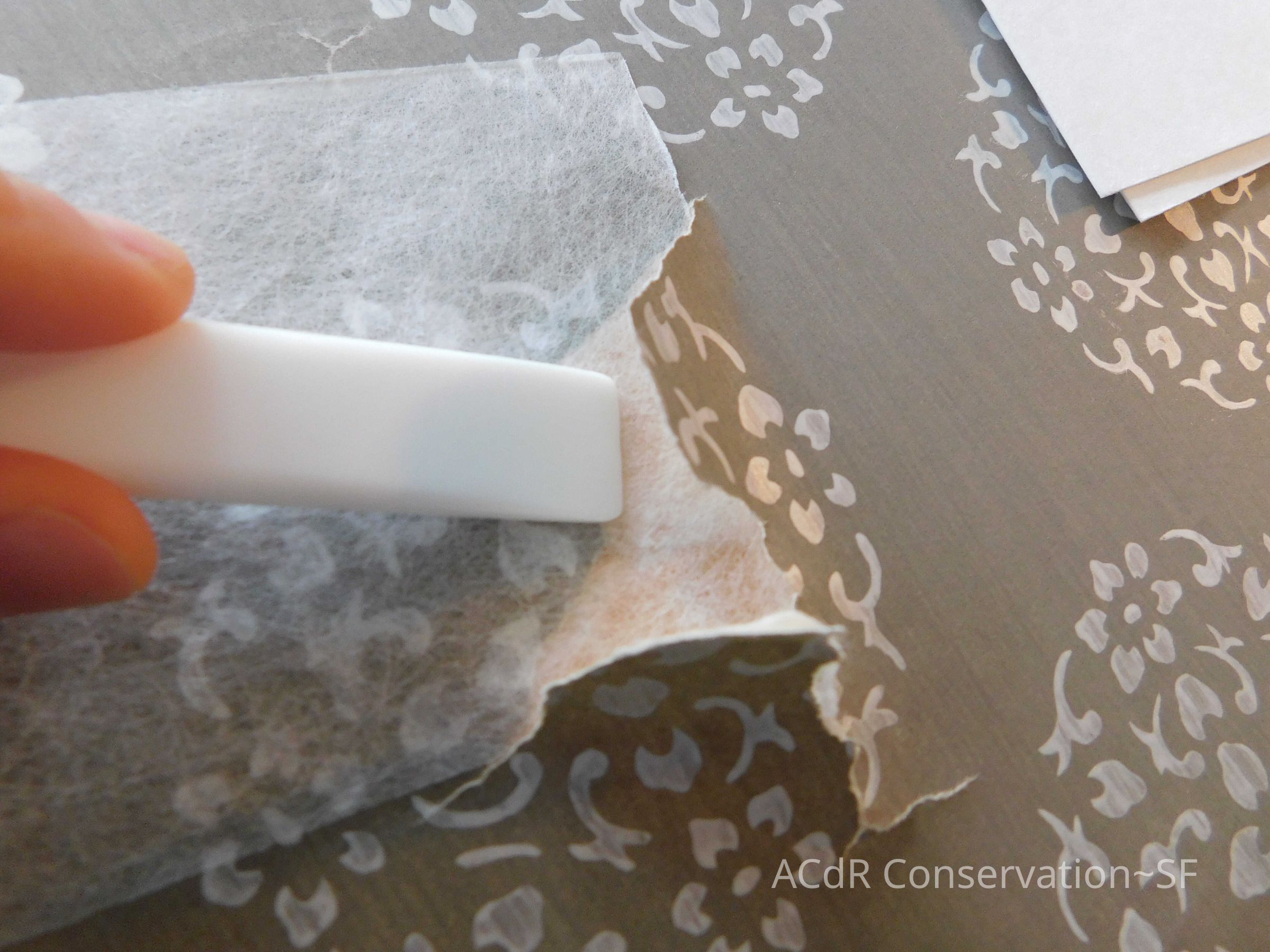

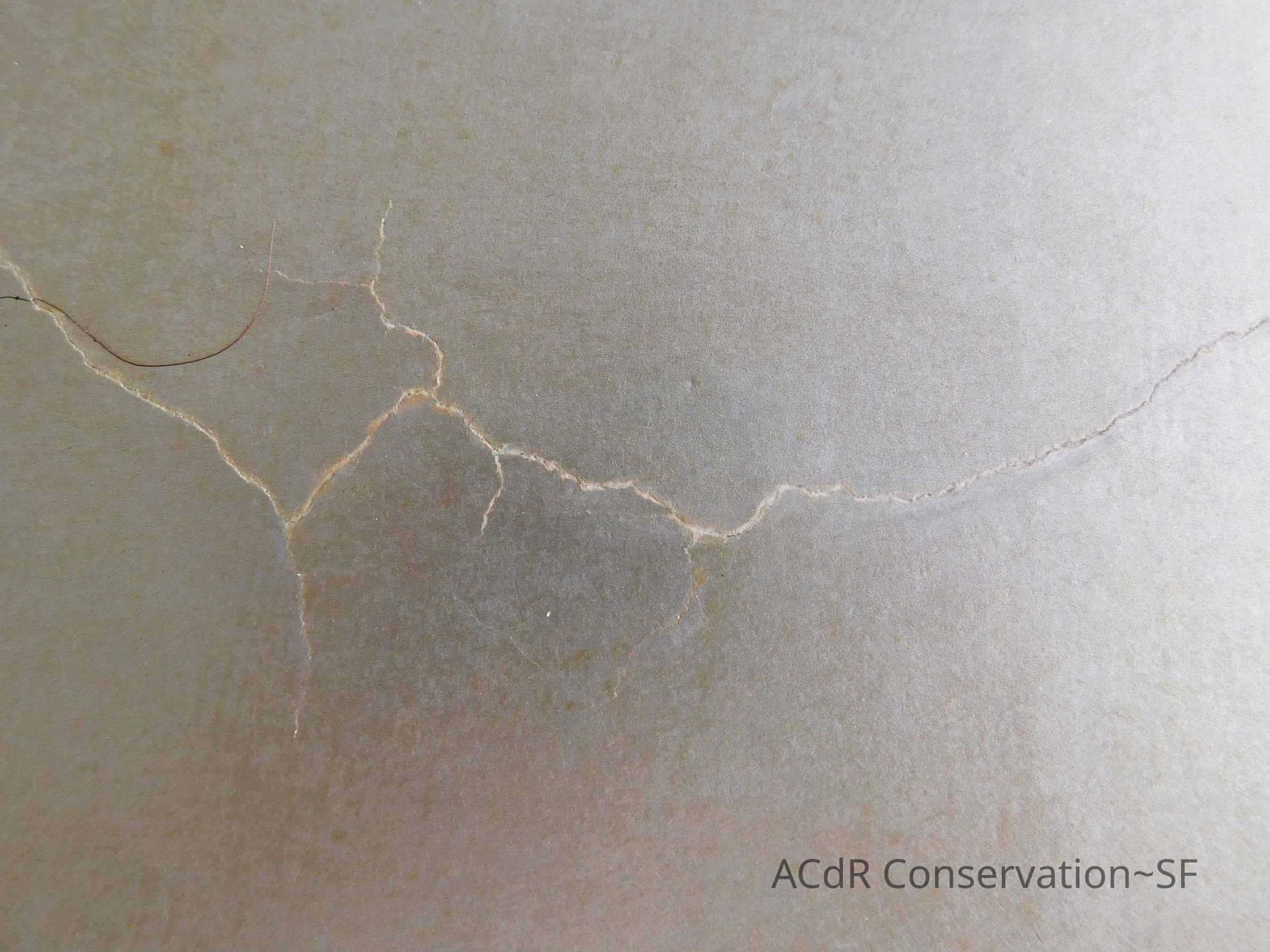

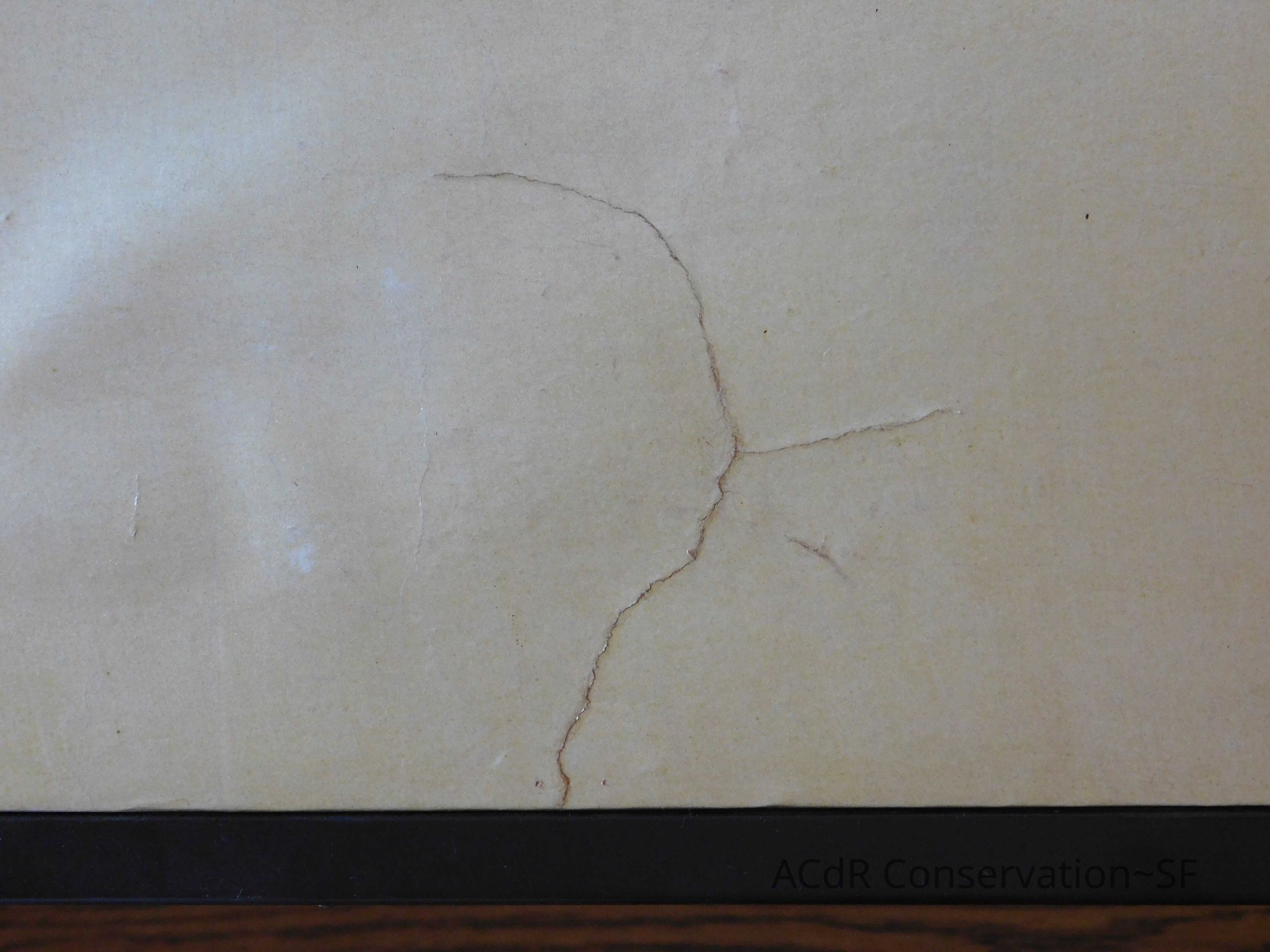

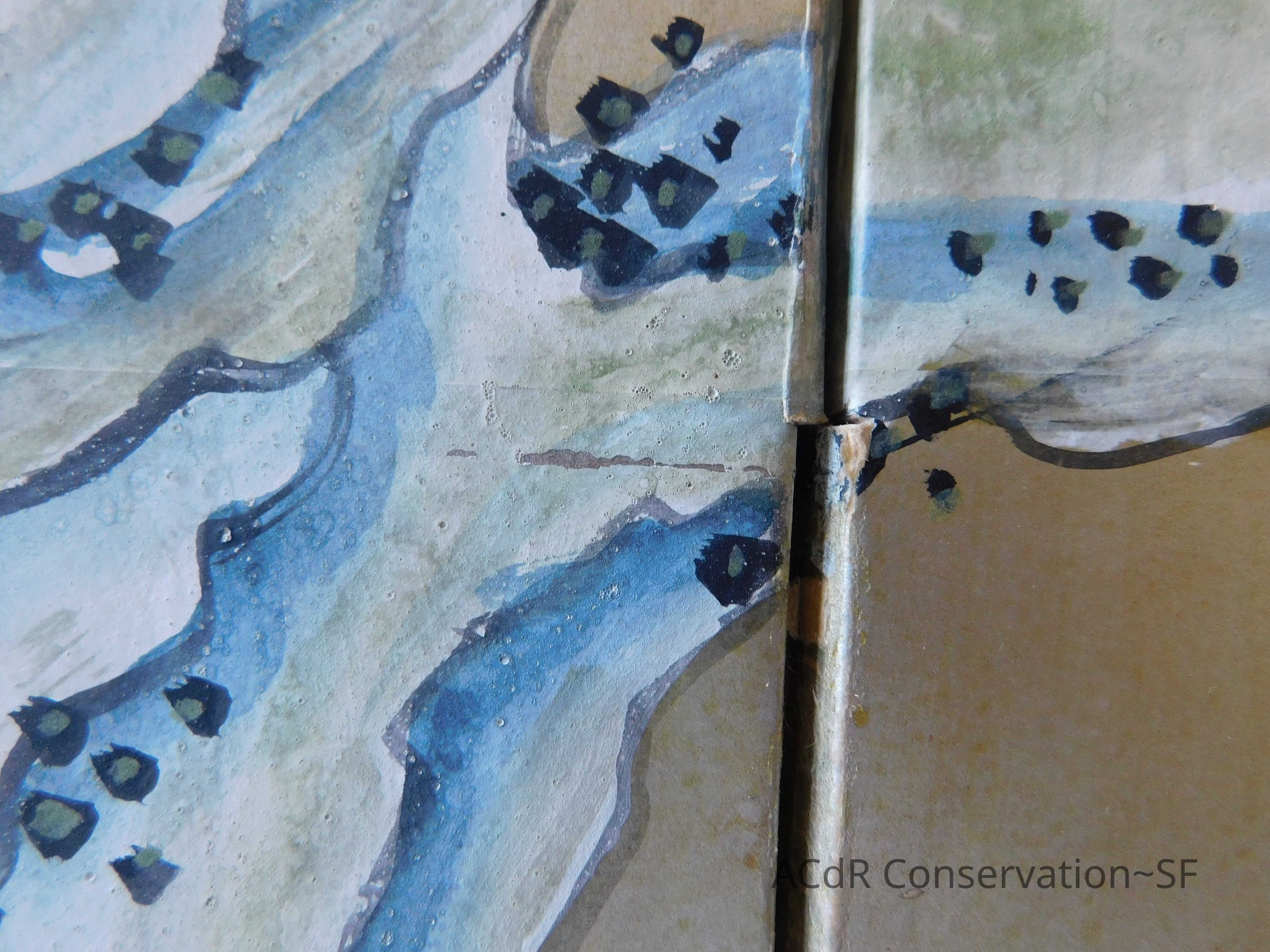

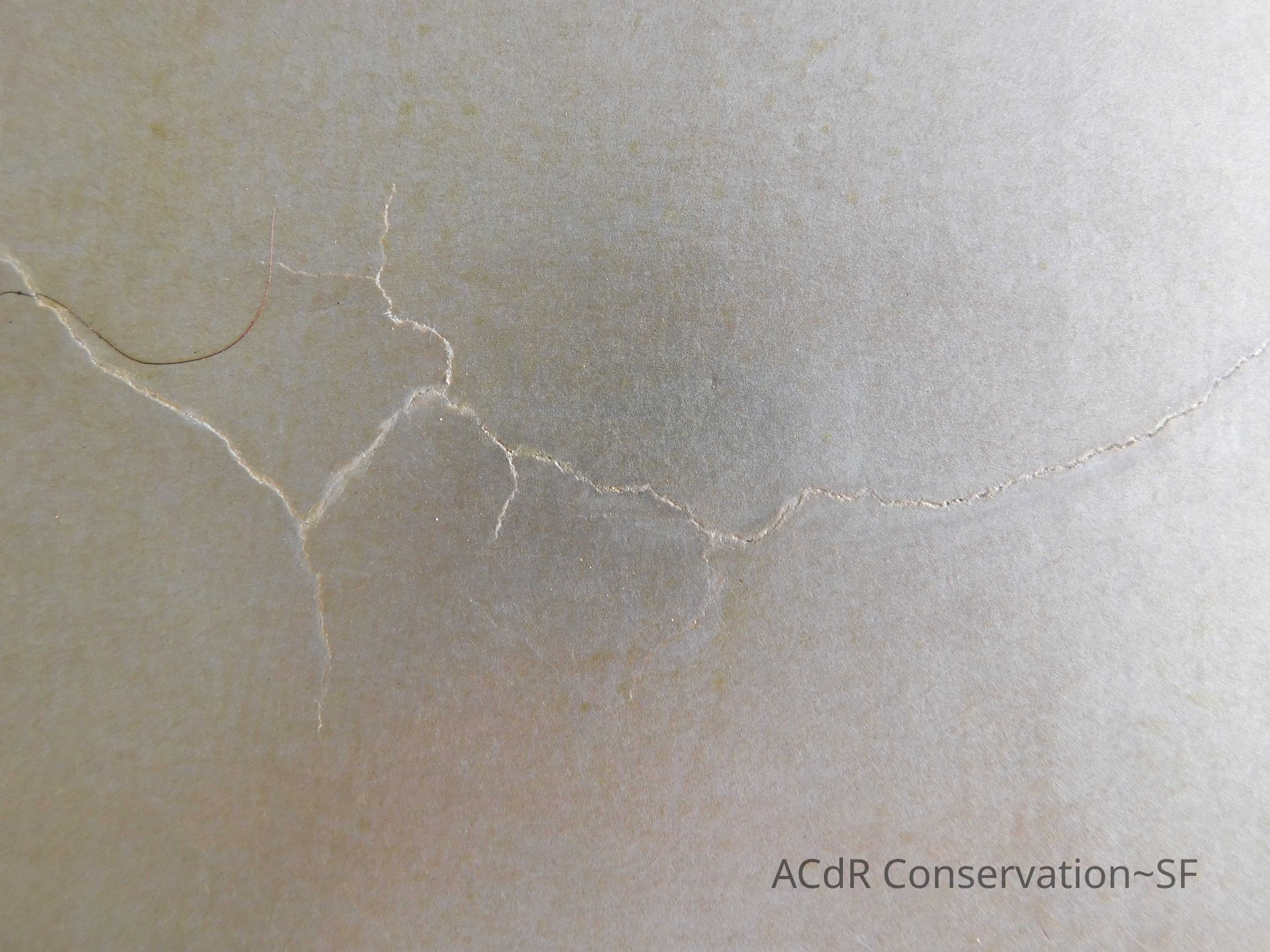

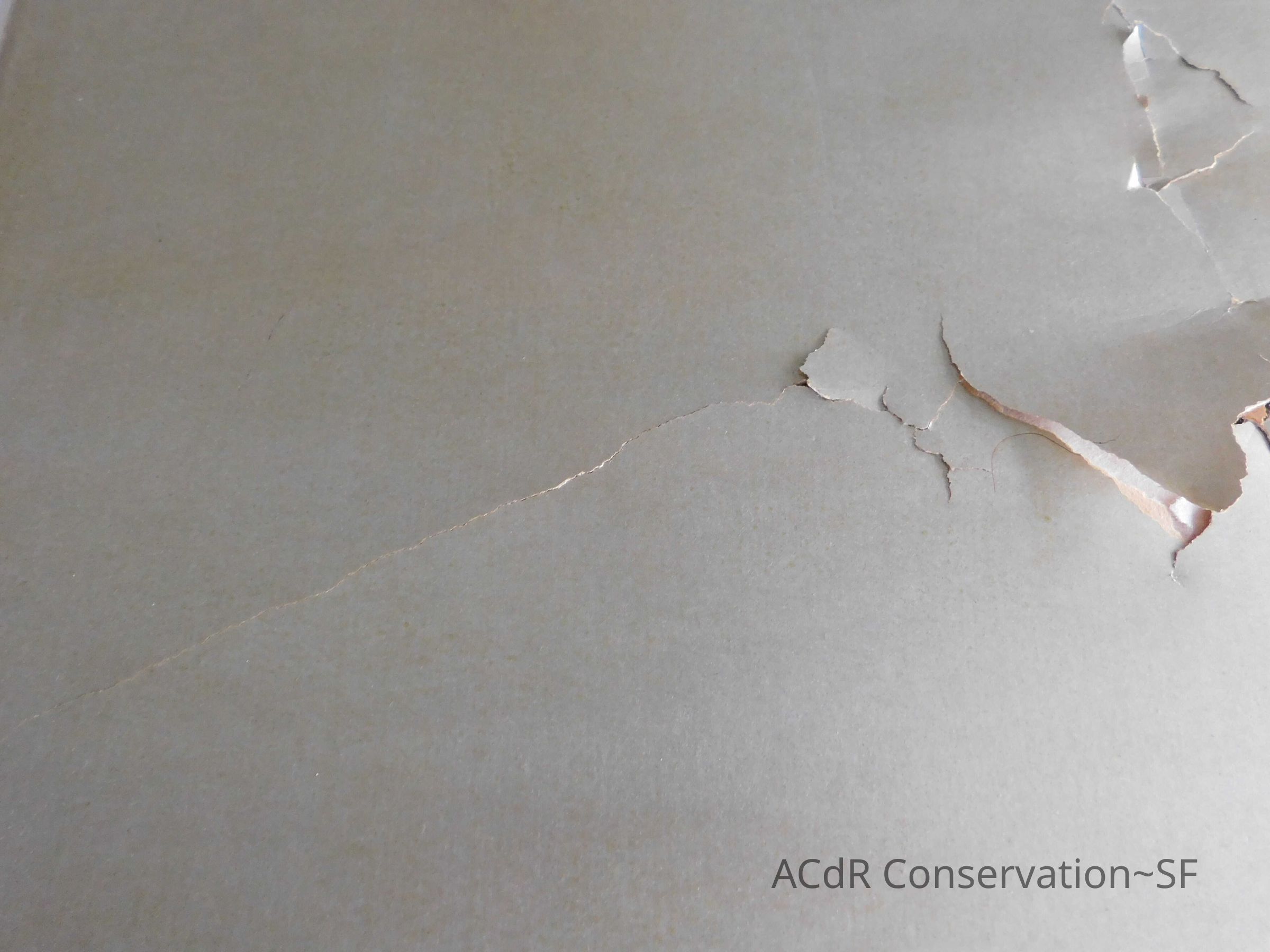

Put the fiber and the bevel of the tears in order from the front side. Attached the fiber and the bevel. Pressed the tears and let it dry. Chose Japanese paper and tear into strips. Mending tears using strips, pressing into sandwich layers. For the bigger hole, put fiber and bevel of the tears in the right order and attached them.

Lining Support

Feb 22, 2019

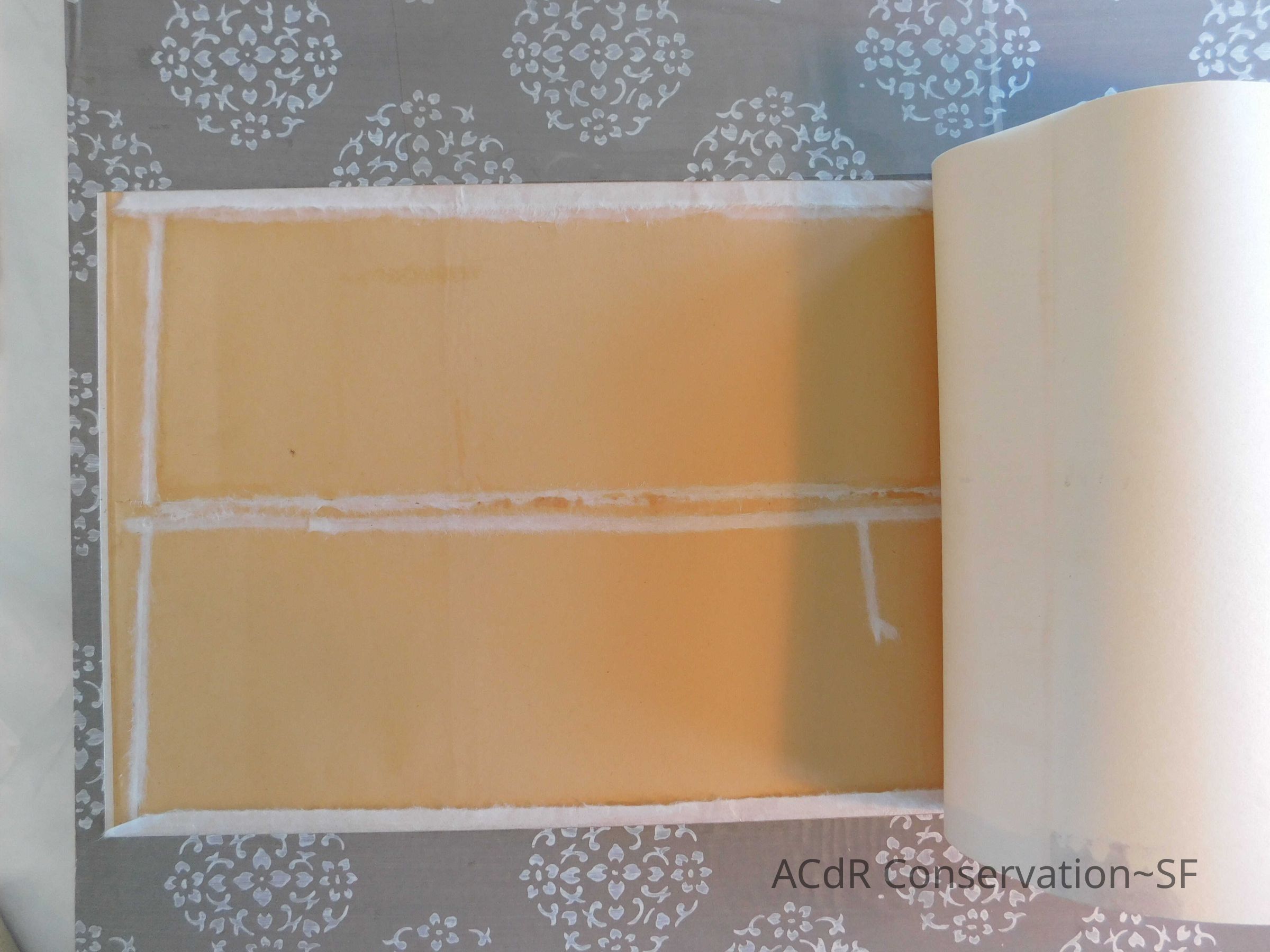

Tearing a piece of Japanese paper for lining. Also cut a piece of cardboard, Hollytex, and blotting paper to the gift size to tuck them under the lining for support. Pressed the lining and let it dry.

Humidification

Feb 22, 2019

Humidified lining again and rubbed from back side due to undulation of the surface. Humidified again and tucked the cardboard from the front side, rubbing and pressing from the back.

Adhesive Repair/Removal

Feb 25, 2019 - Mar 11, 2019

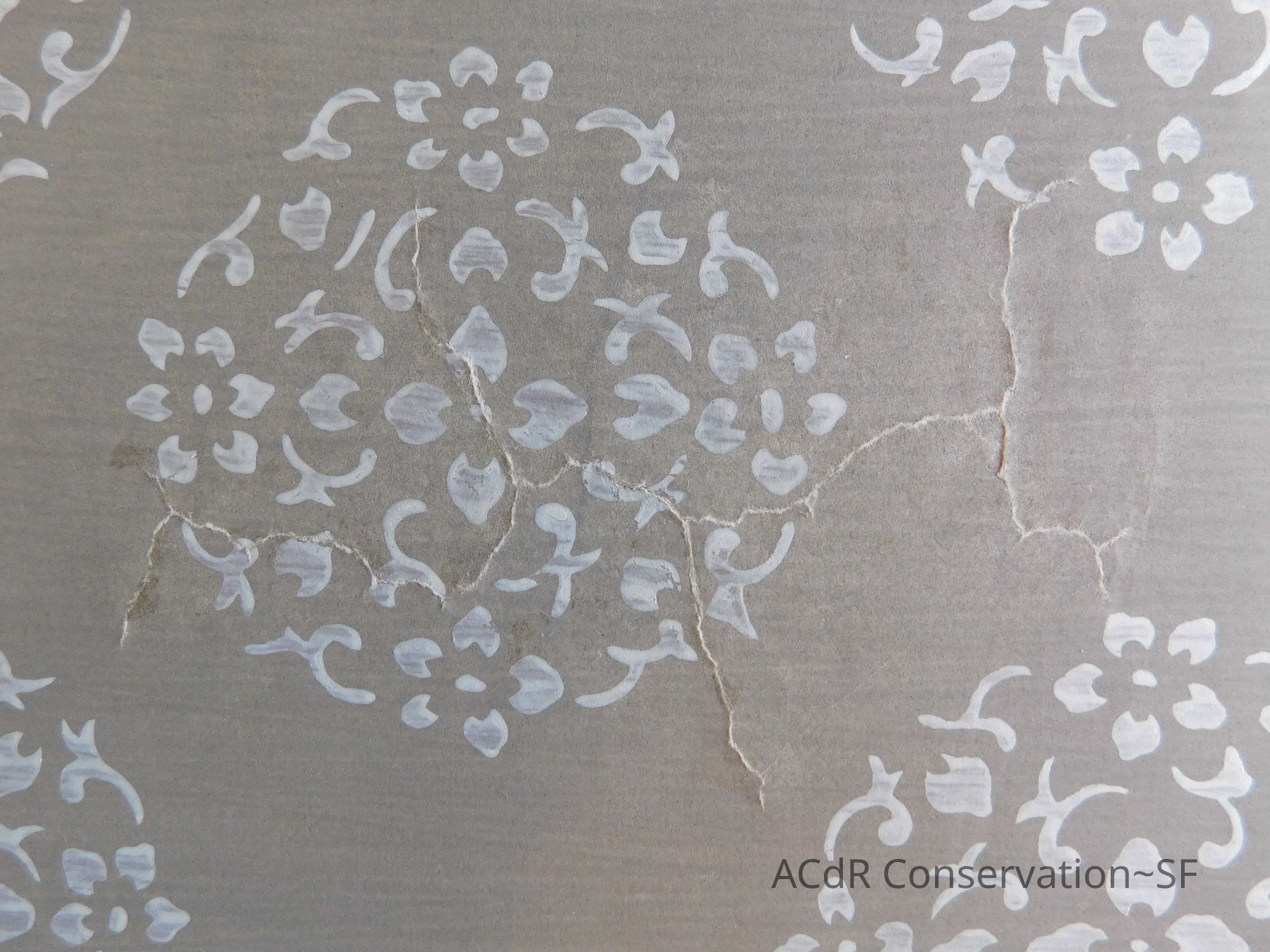

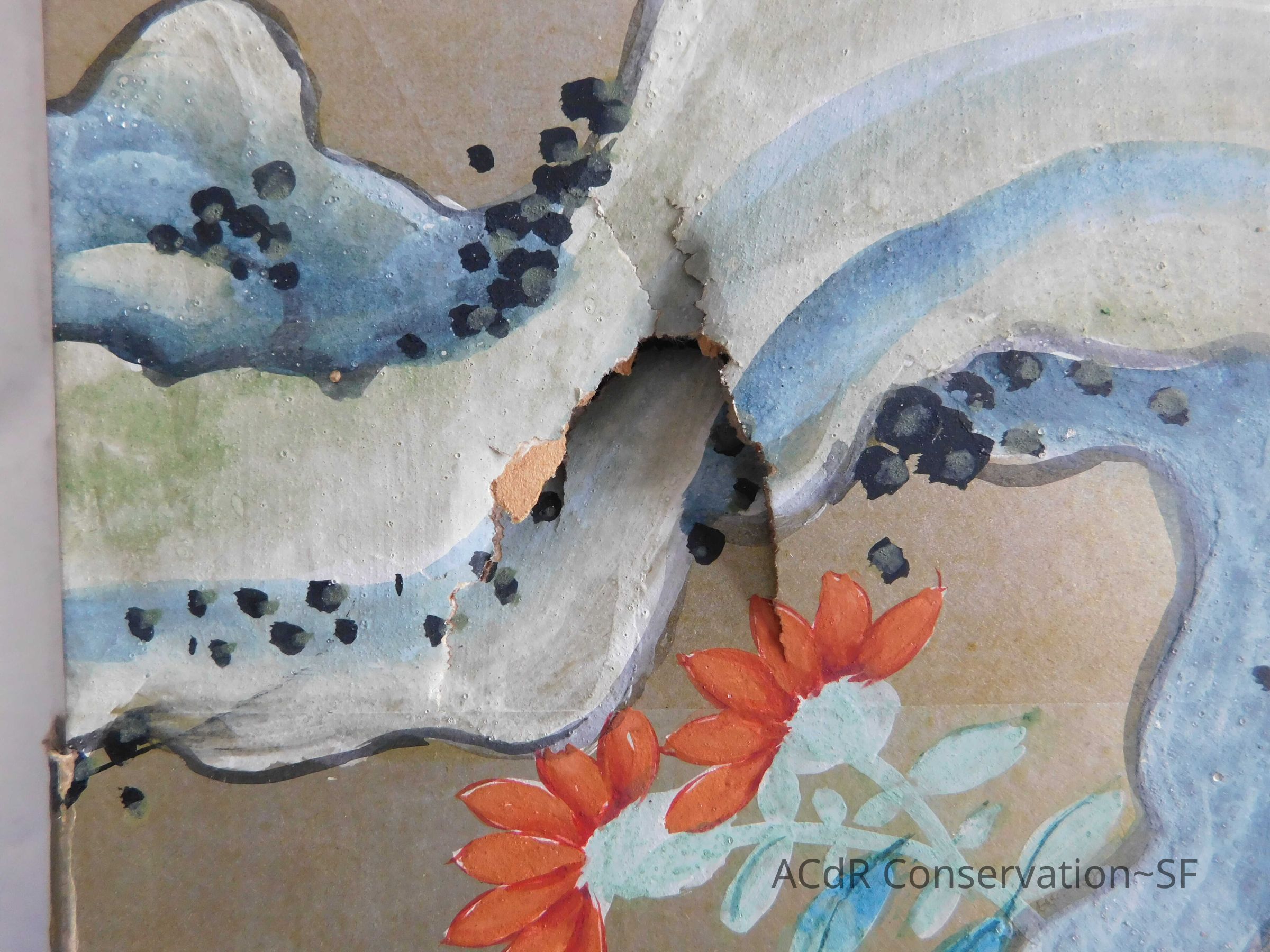

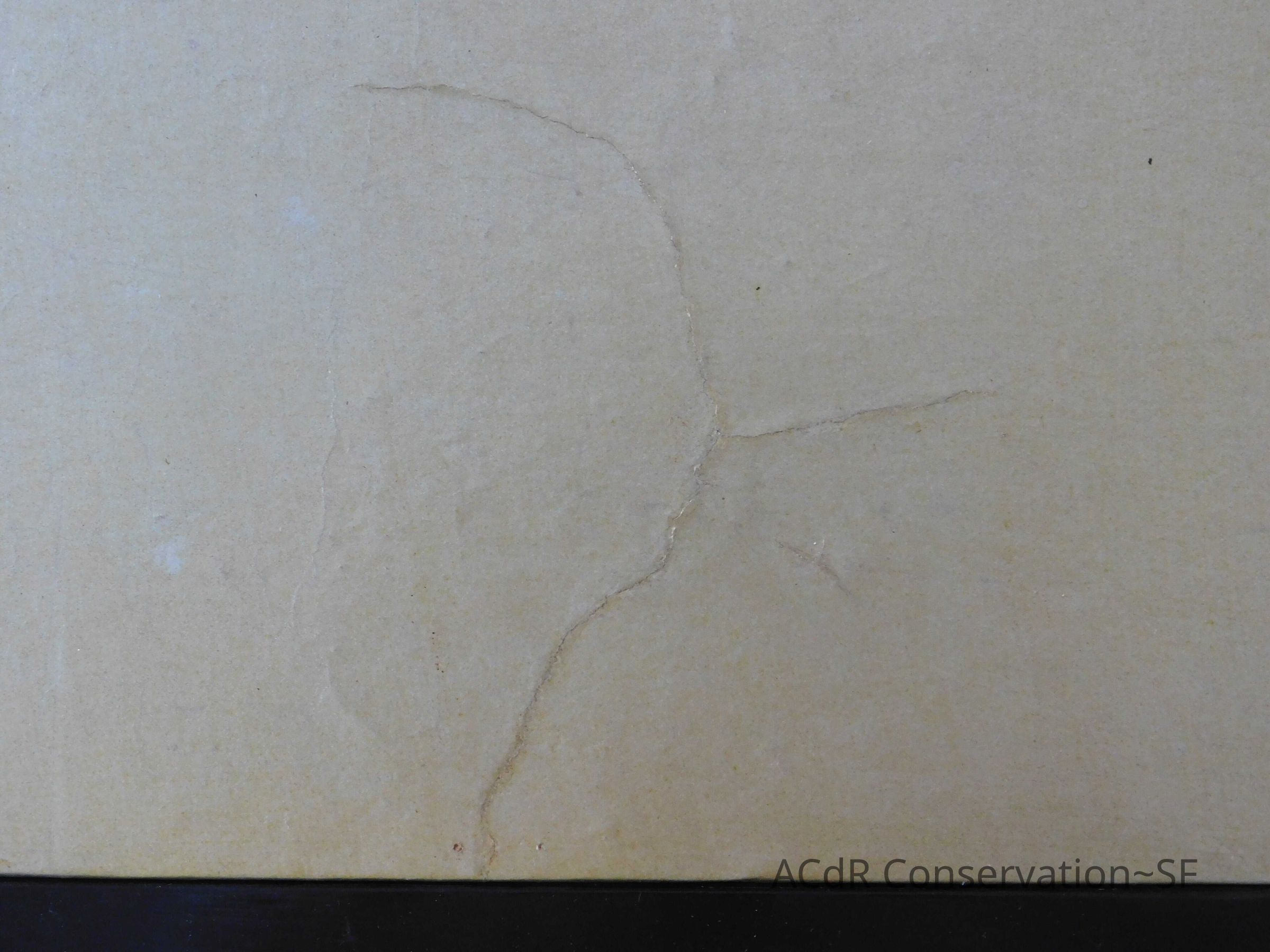

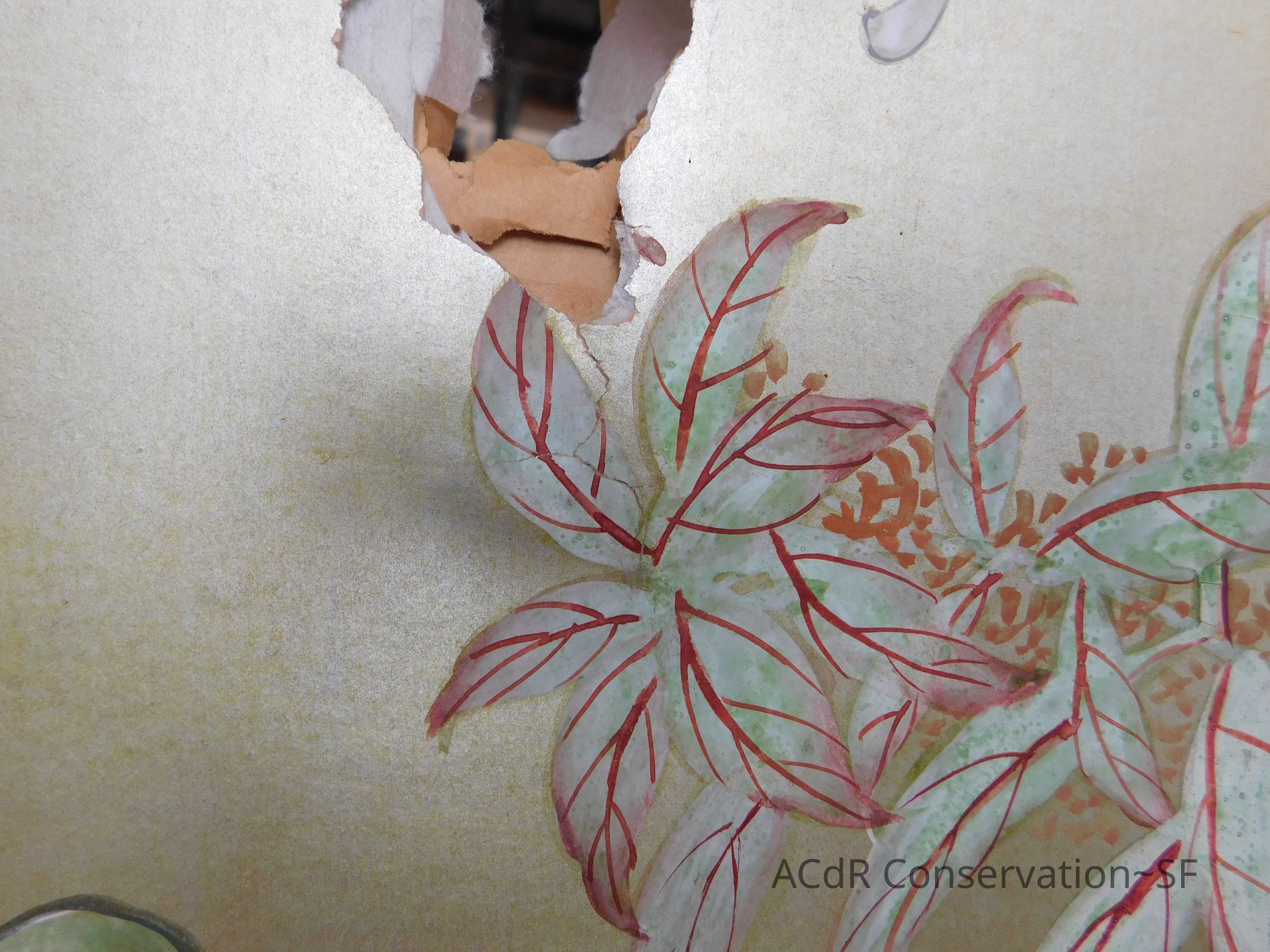

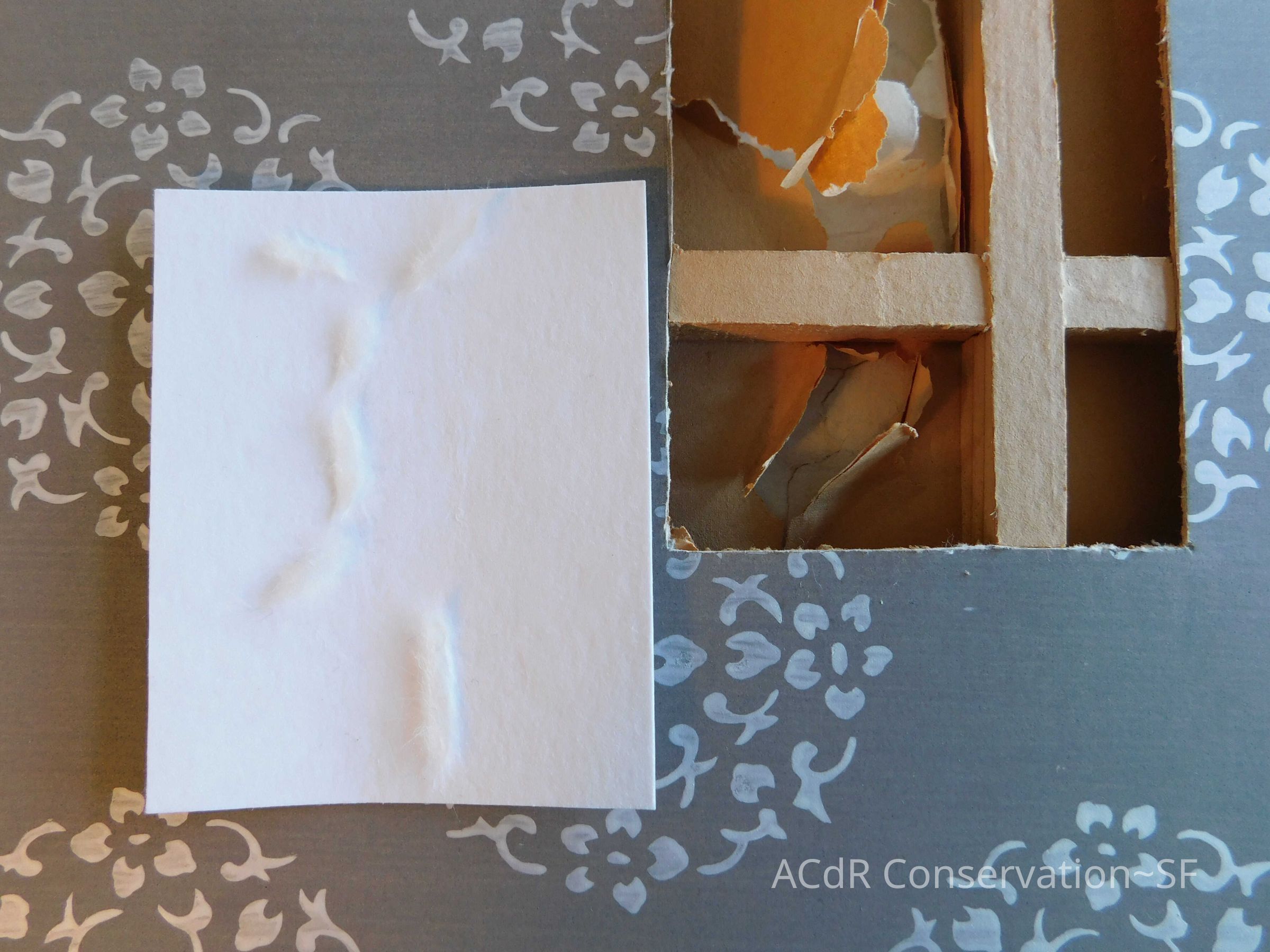

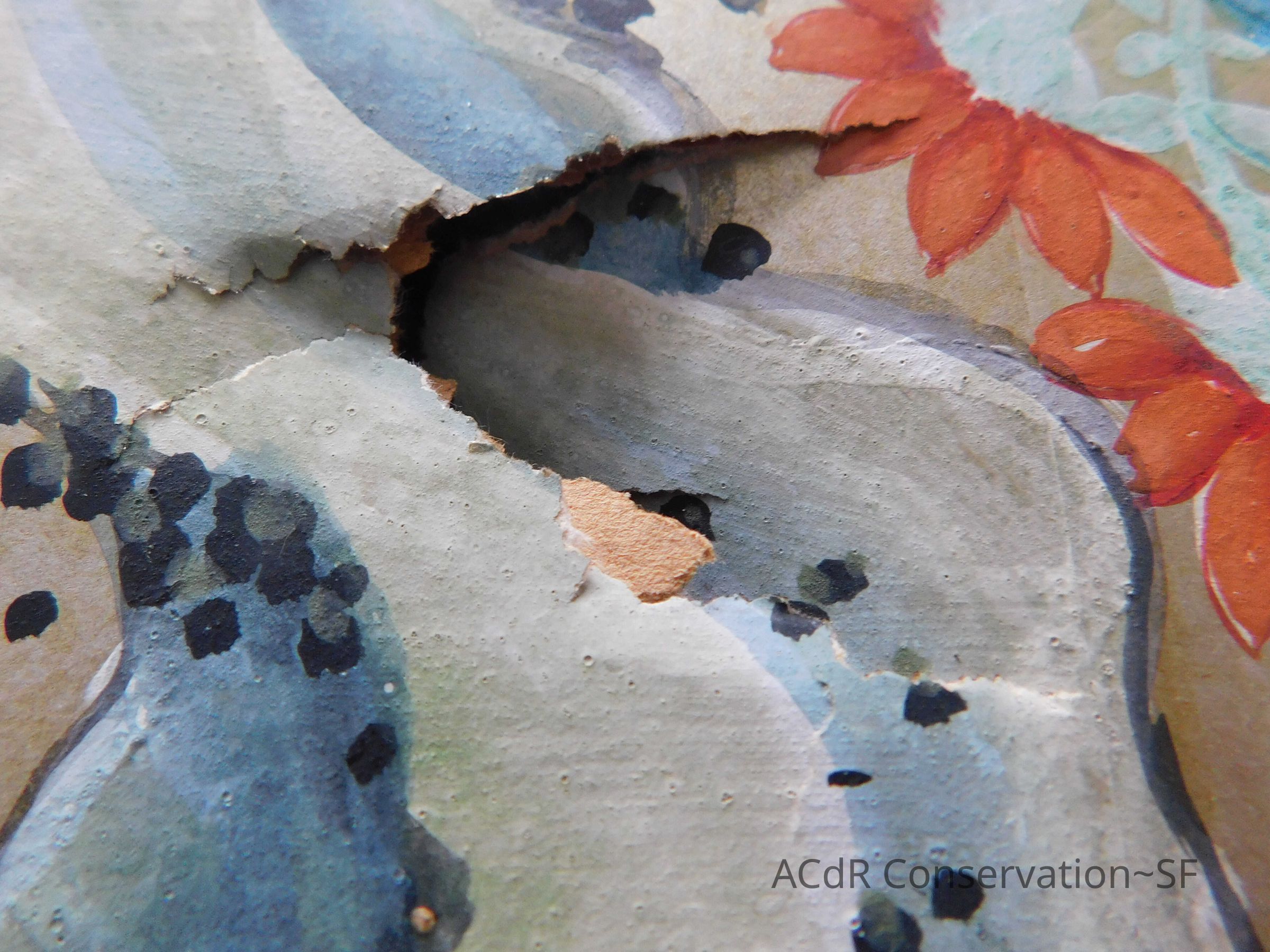

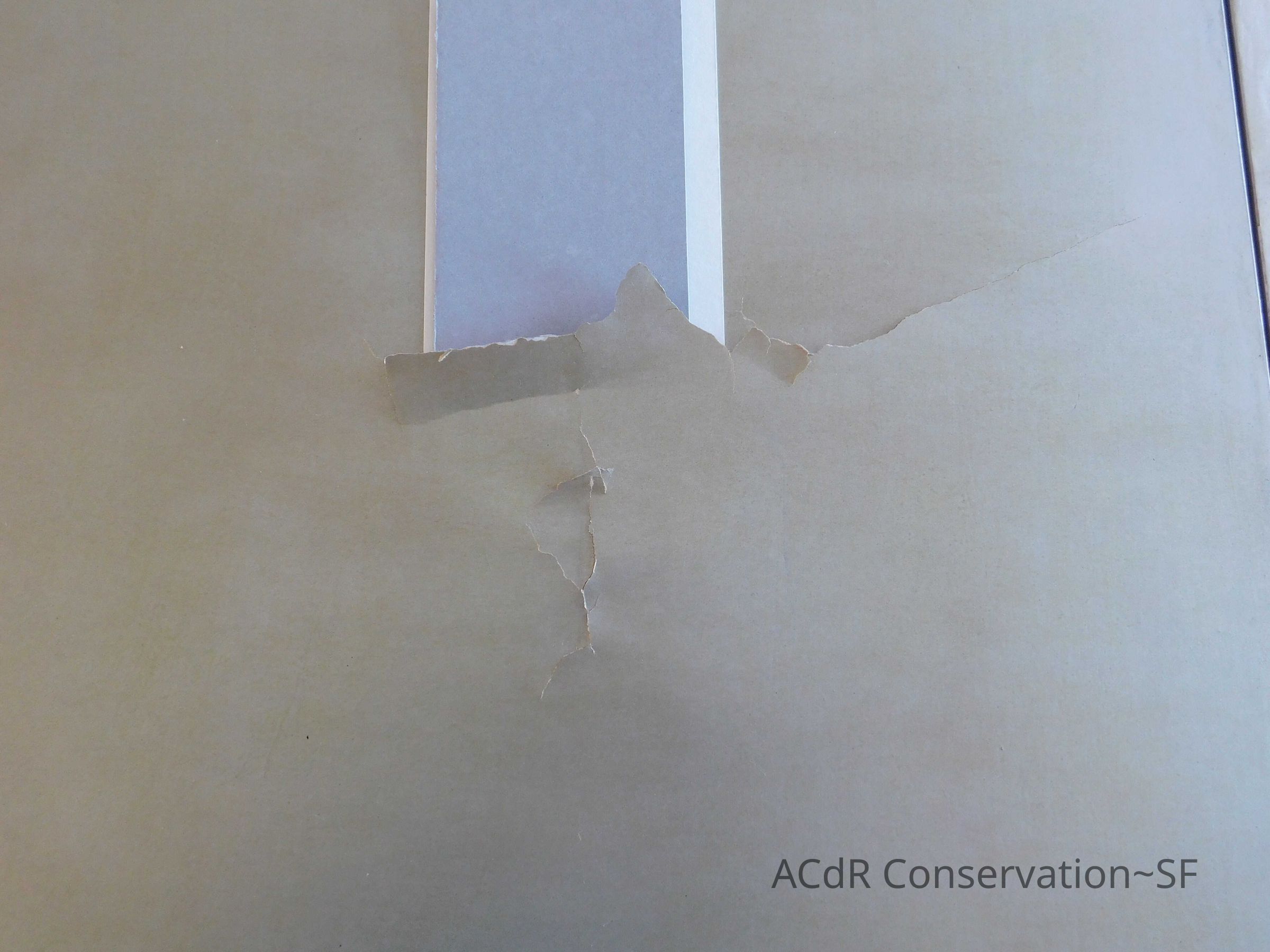

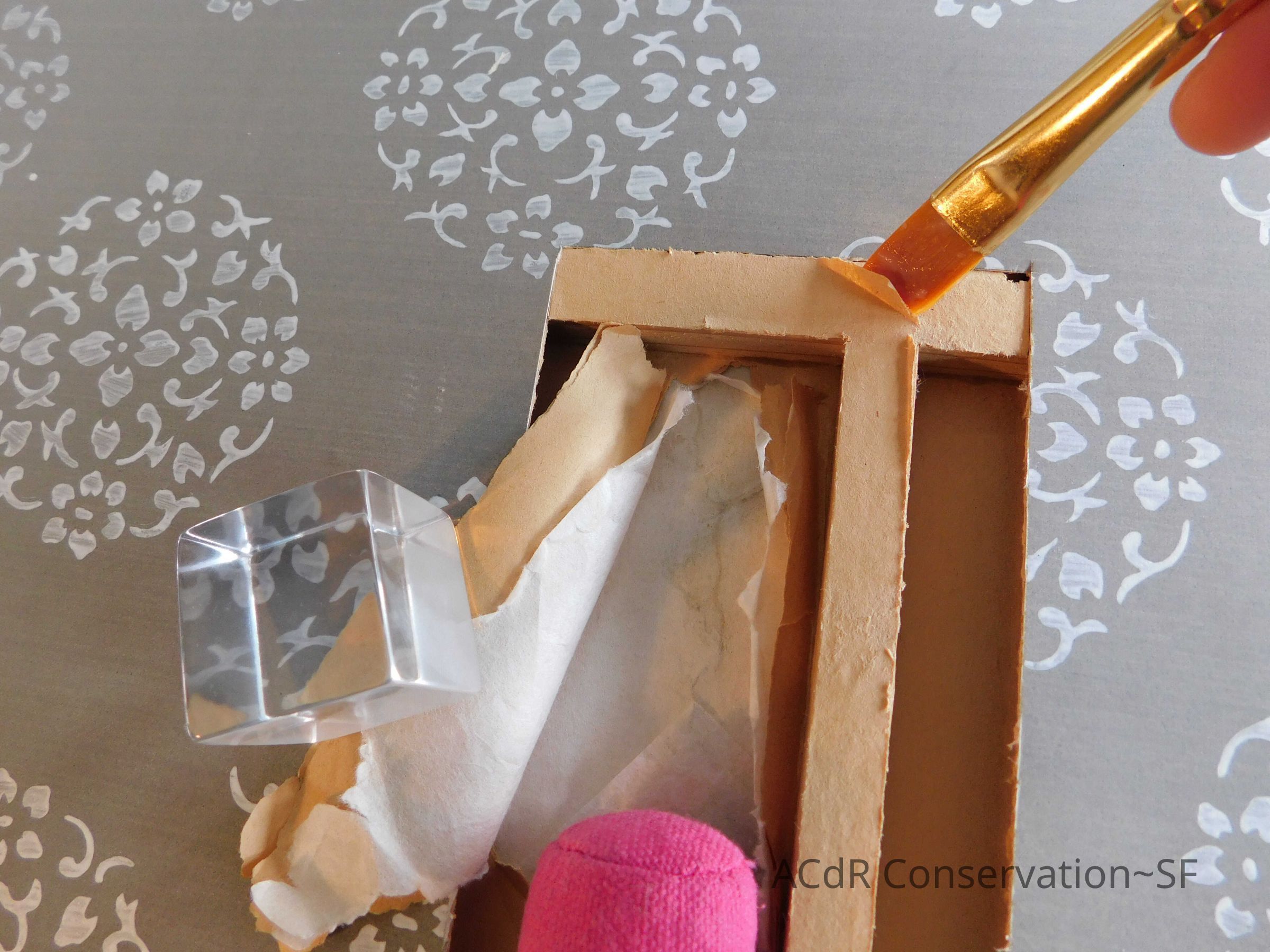

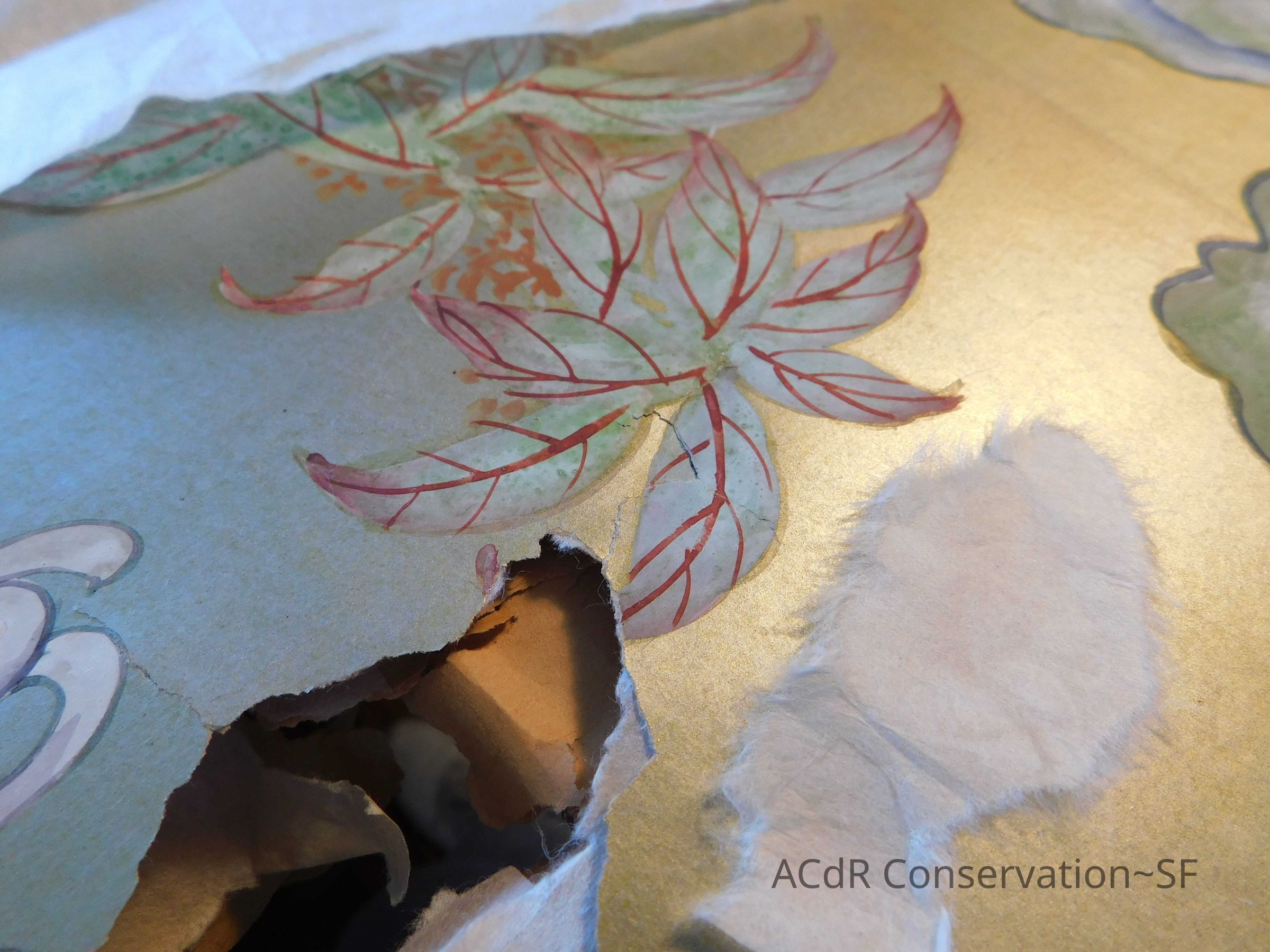

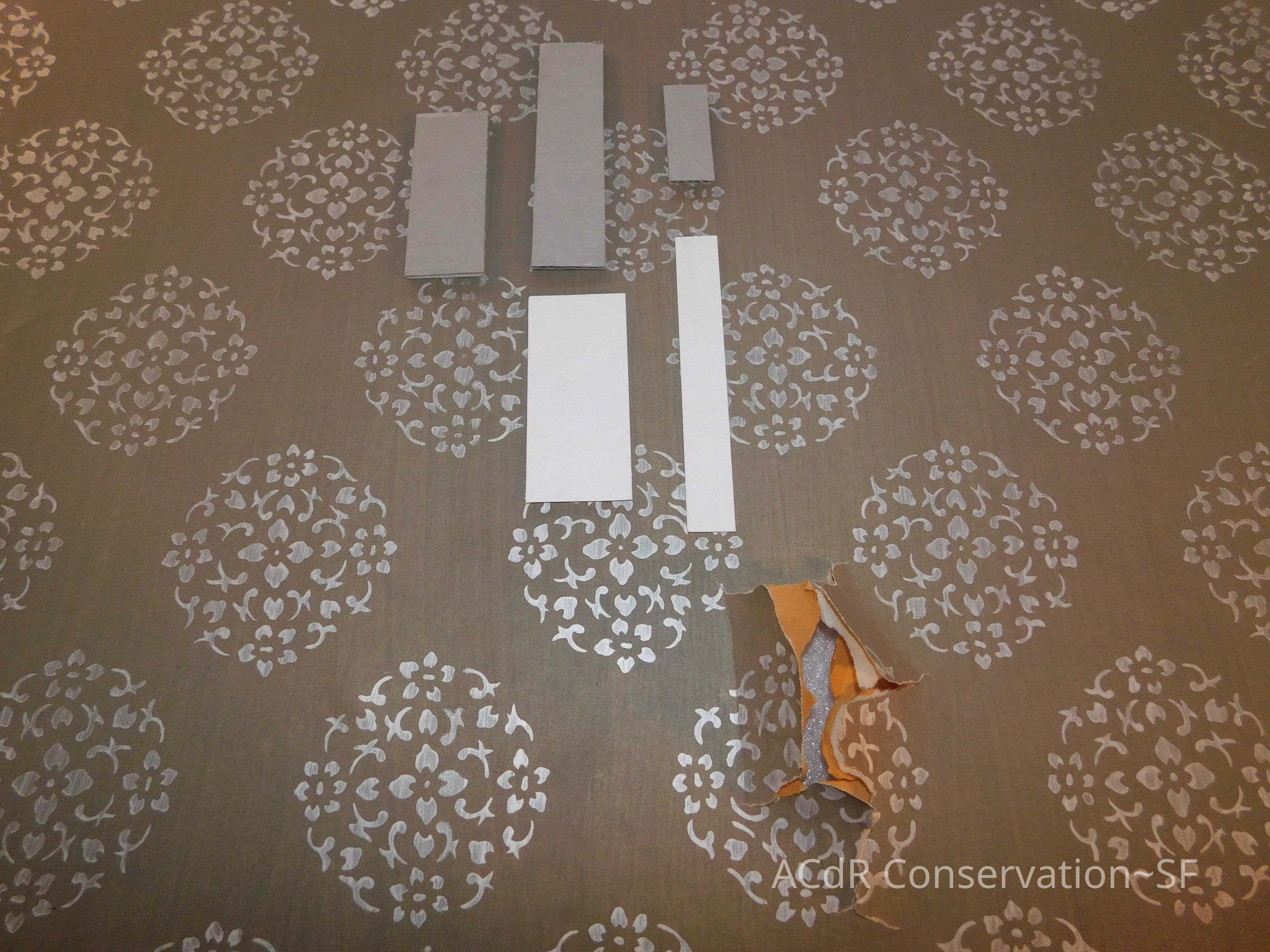

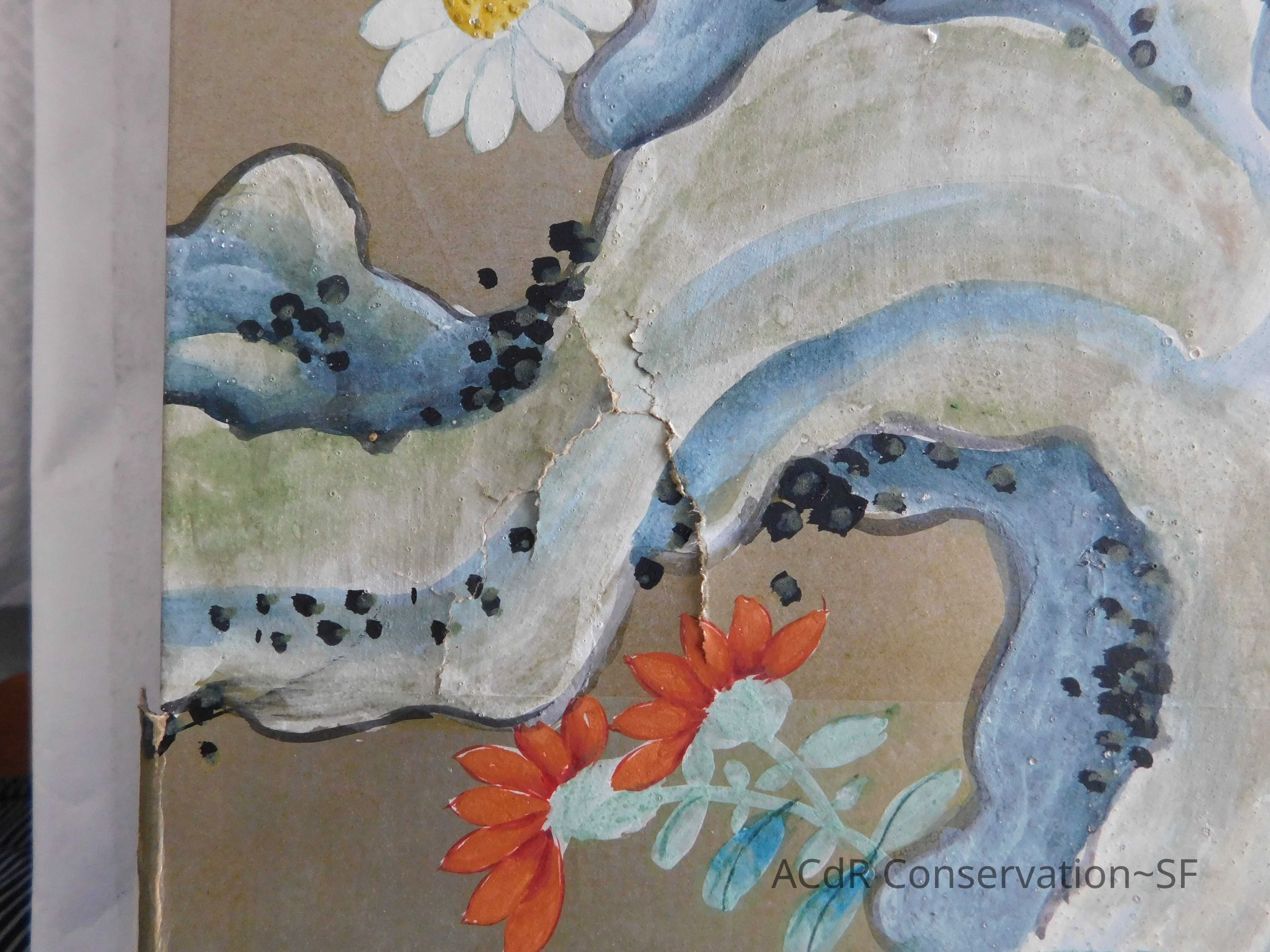

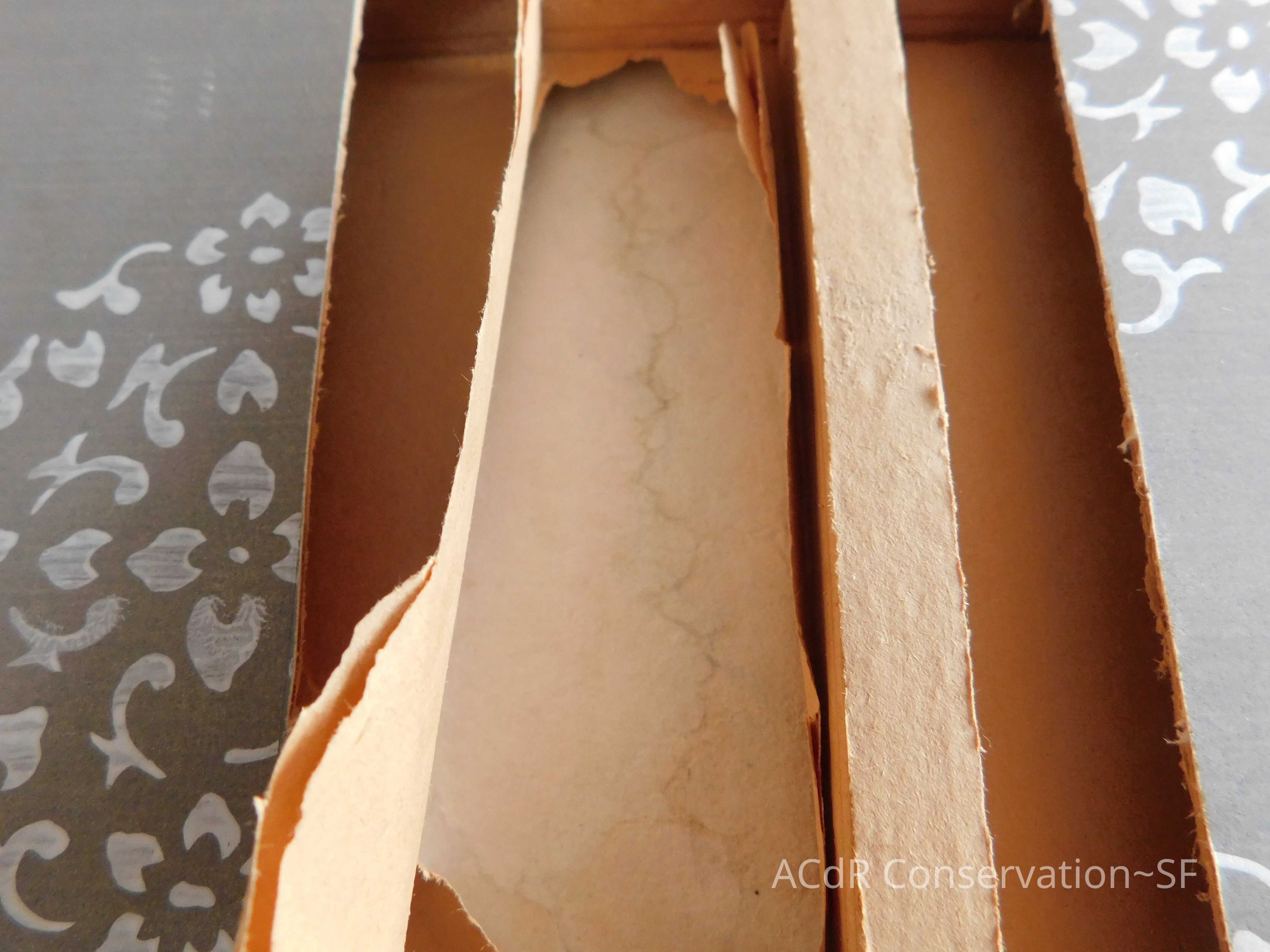

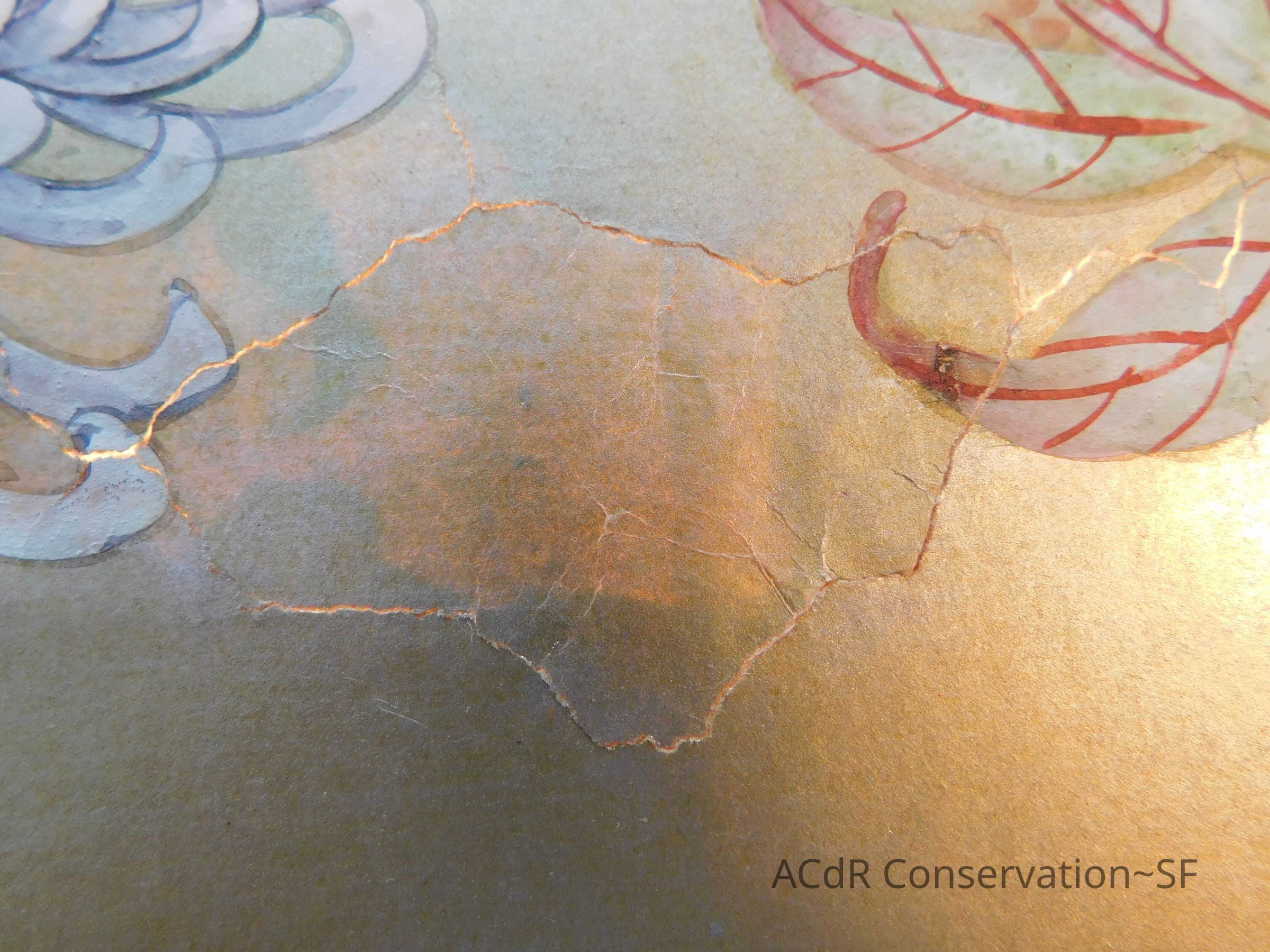

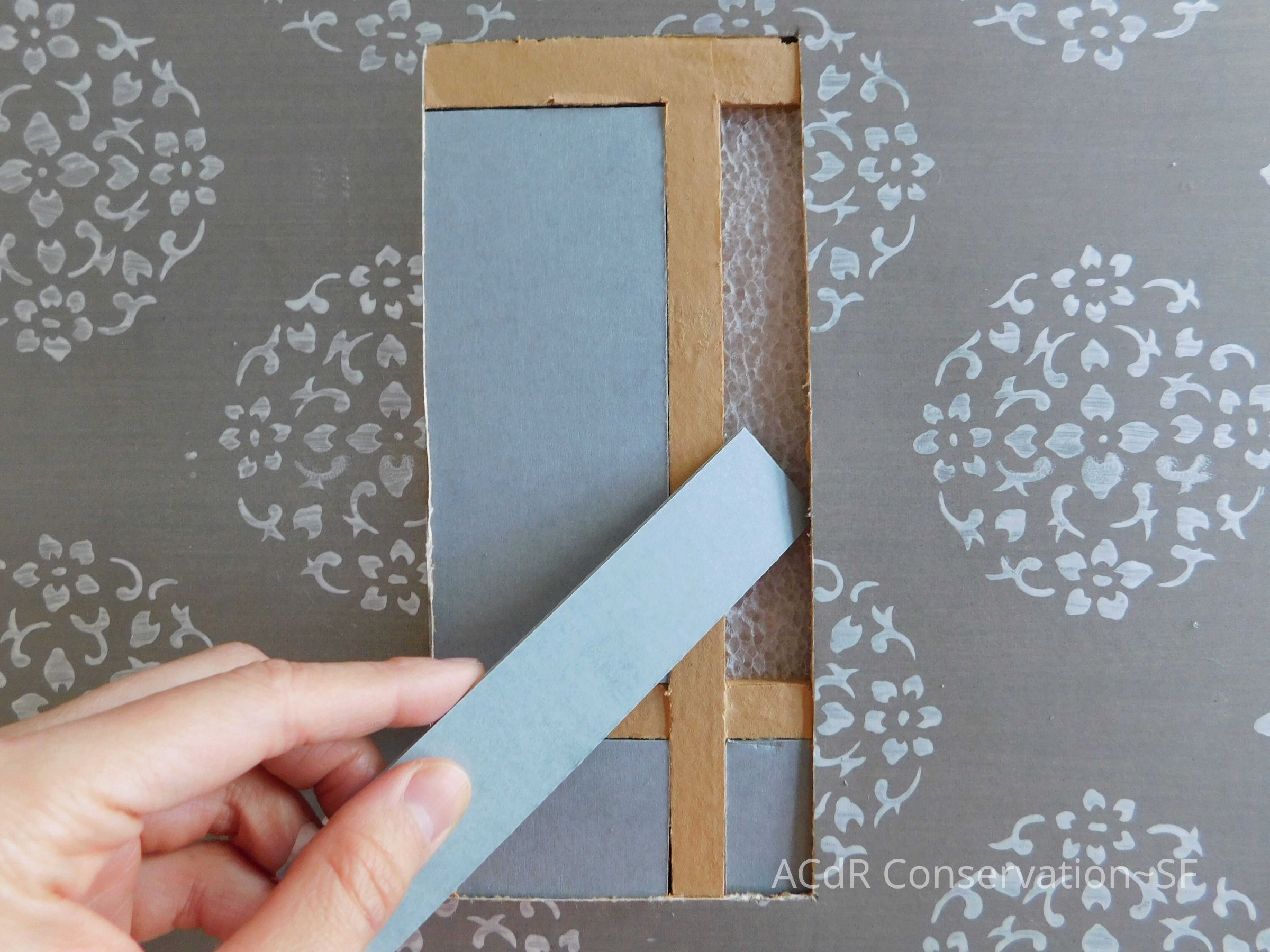

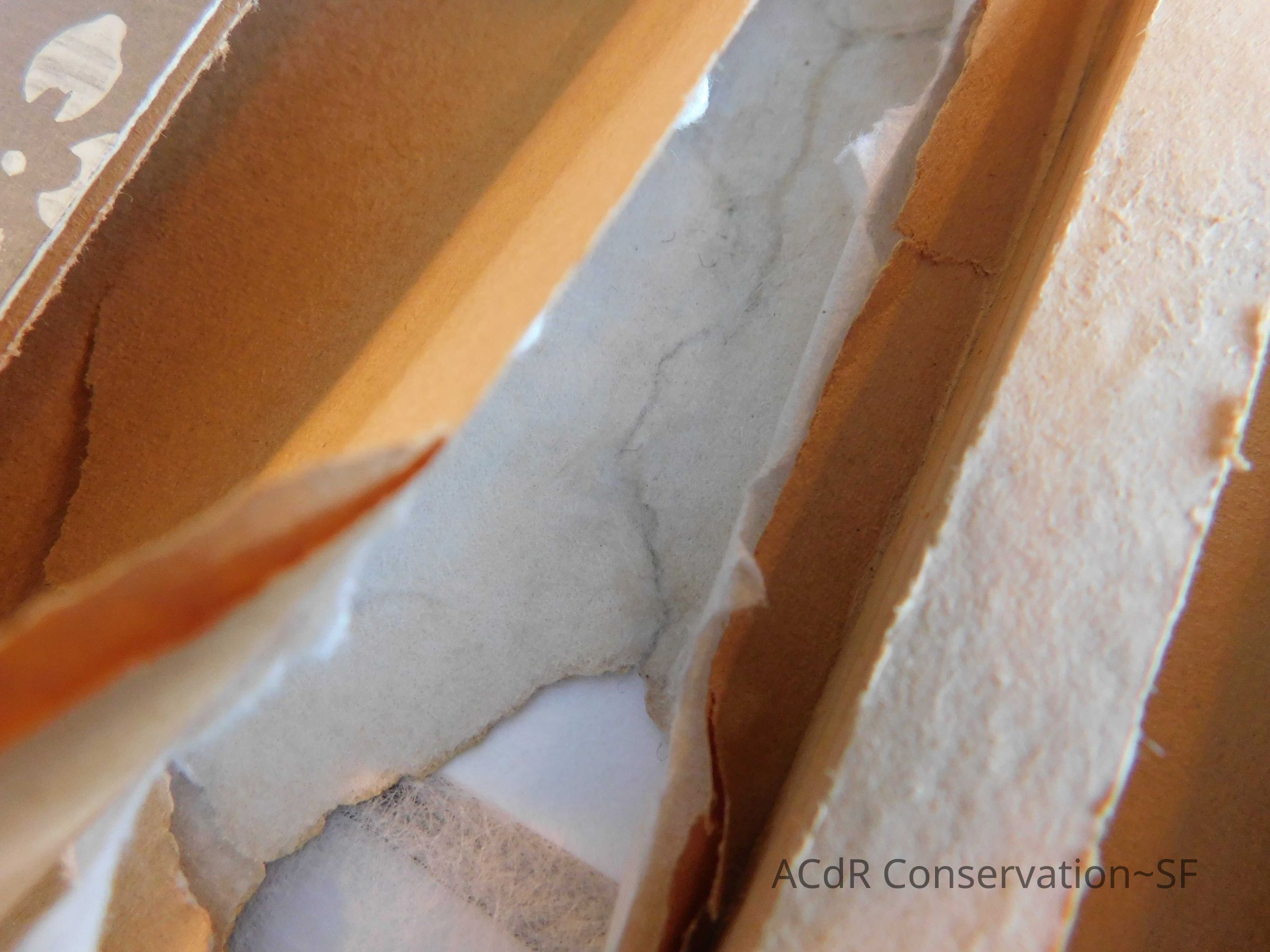

For the smaller hole, measured the size of the hole and filled with Ethafoam, blotter paper, and blue board layers. For the bigger hole, patched the loose piece of the hole and put the edge fibers in order. Mended tears with Japanese paper strips and starch paste. For the smaller hoe, mended the first and second layers of the hole with Japanese paper strips and starch paste. Attached the third and fourth layers together, then attached this to the second layers. Pressed and dried overnight. For the bigger hole, mended the tears with Japanese paper strips. Mended some tears covered by wood with a piece of Japanese paper. For the smaller hole, attached the rest of the broken areas piece by piece with starch paste. For bigger hole, attached the original layers and mended tears with Japanese paper strips. For smaller hole, put the fiber of tears in order and smoothed surface. For bigger hole, attached remaining layers and mended. For smaller hole, retouched the edge gap of tears. Filled uneven surface with Modostuc. Sanded the Modostuc.

Retouching

Mar 11, 2019 - Mar 29, 2019

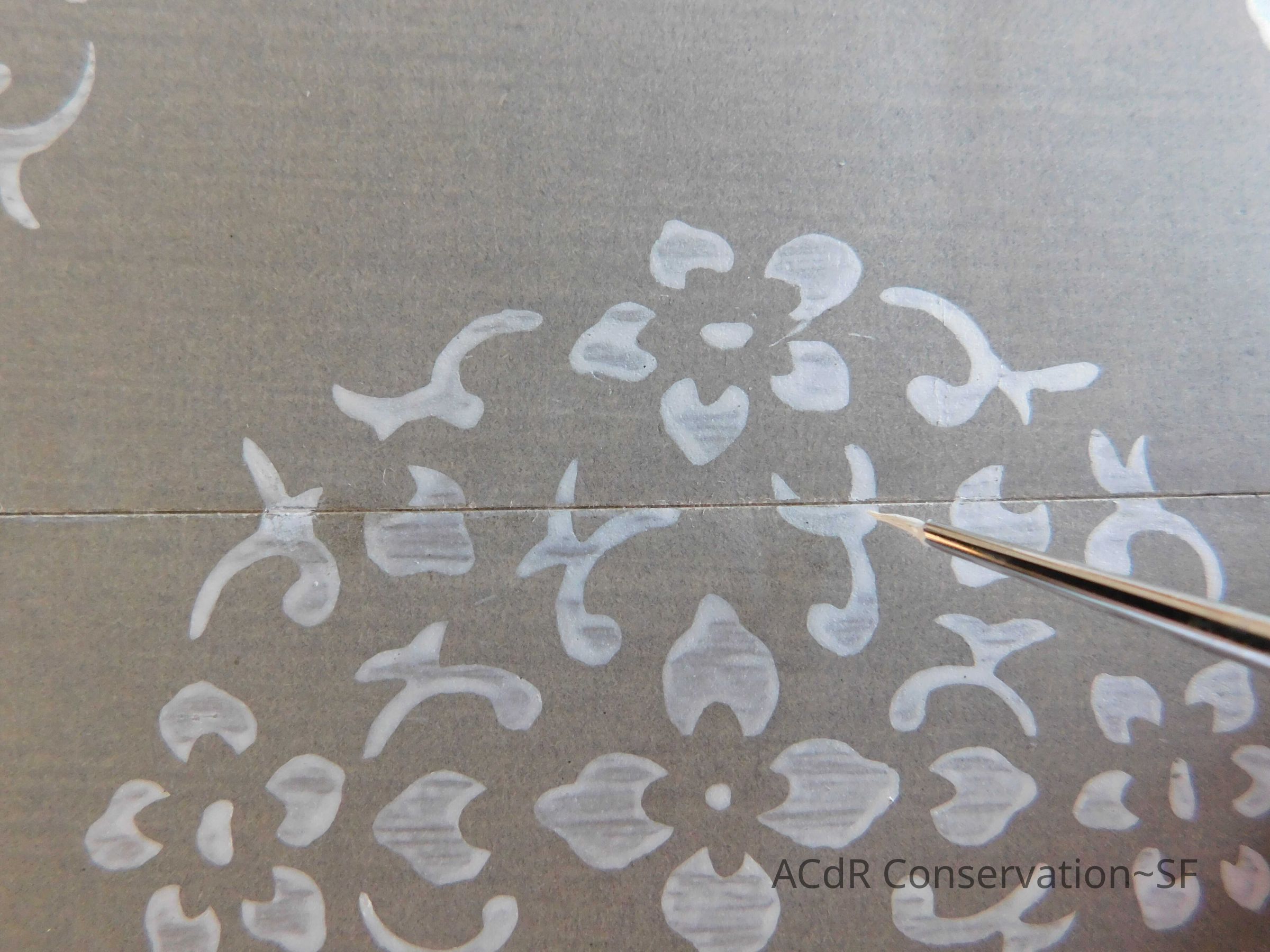

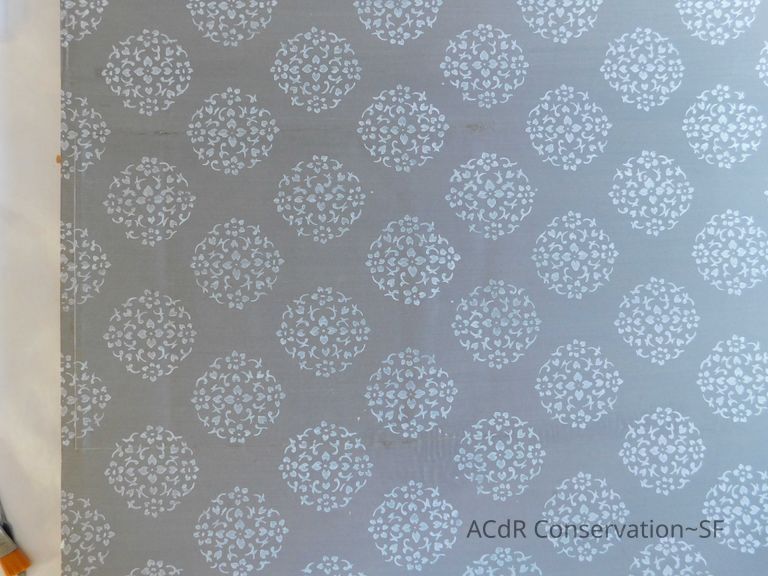

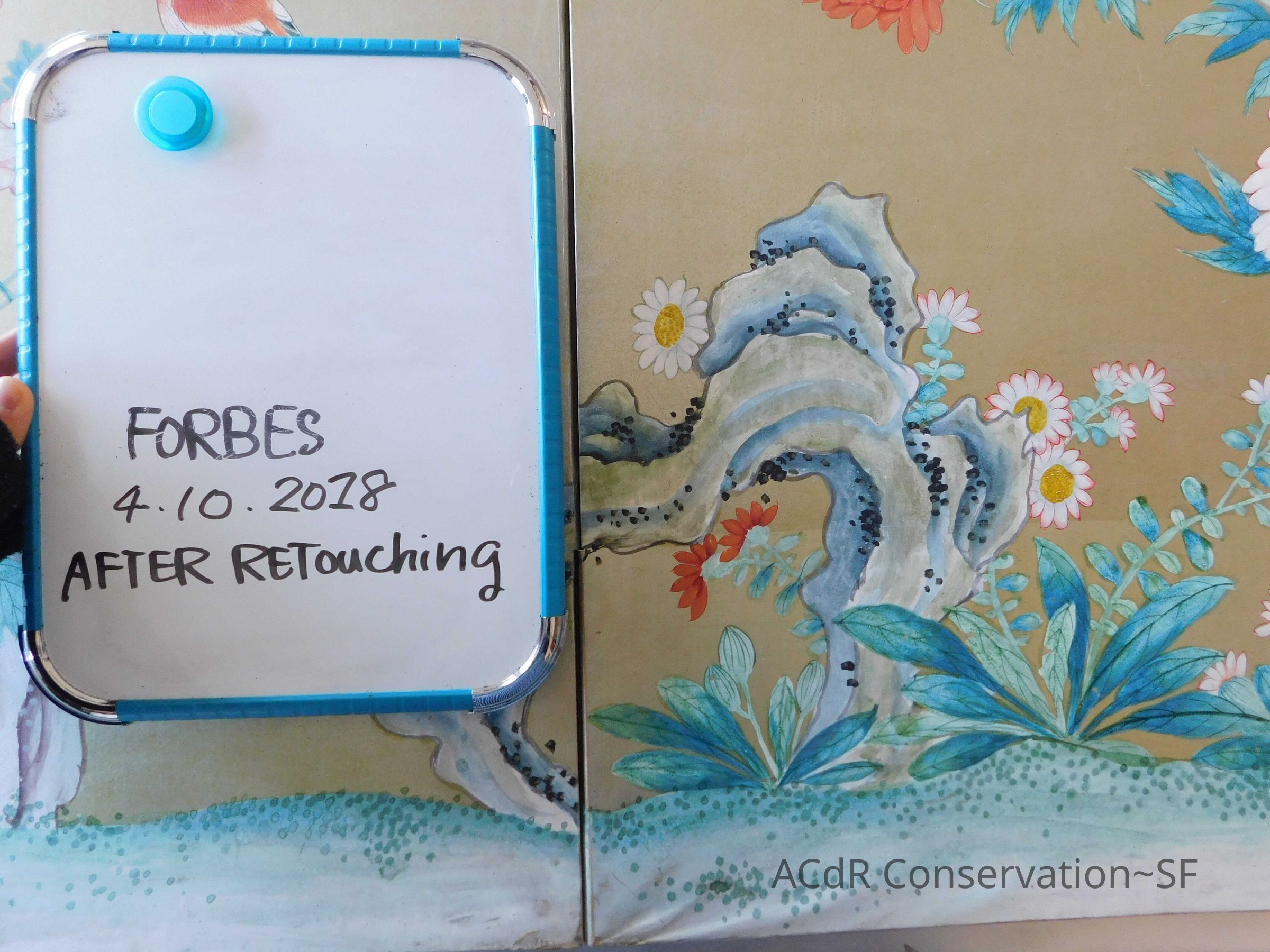

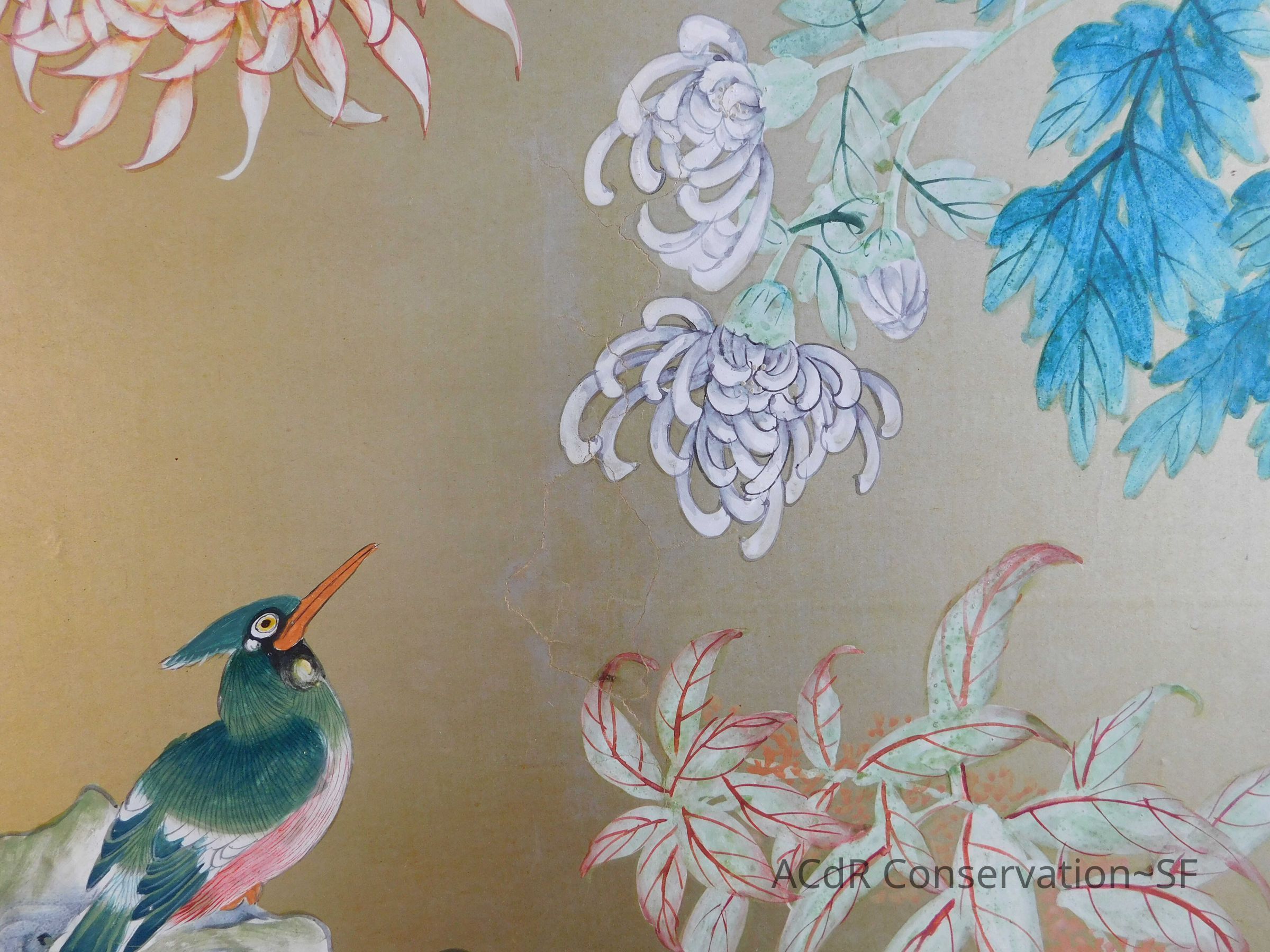

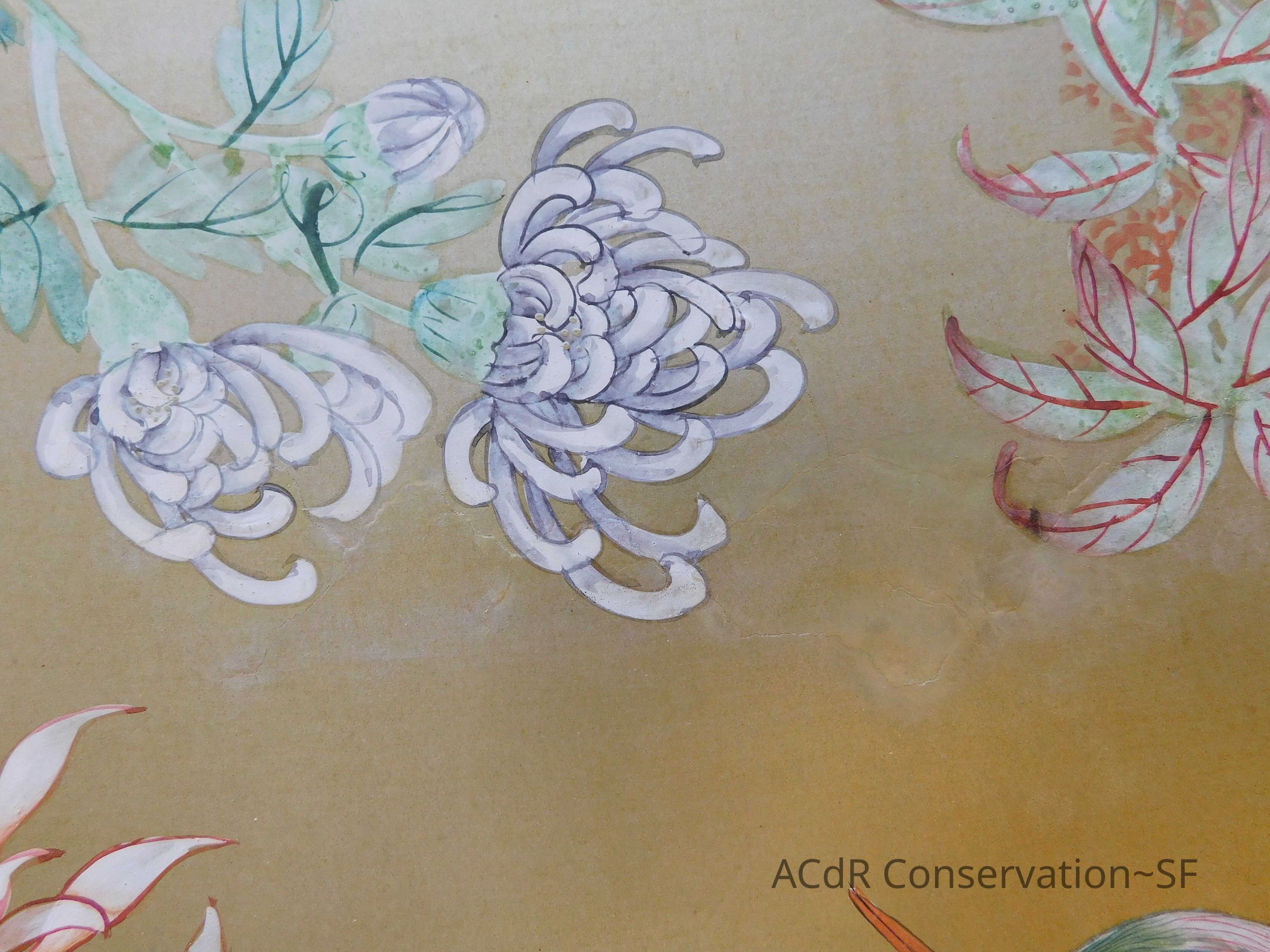

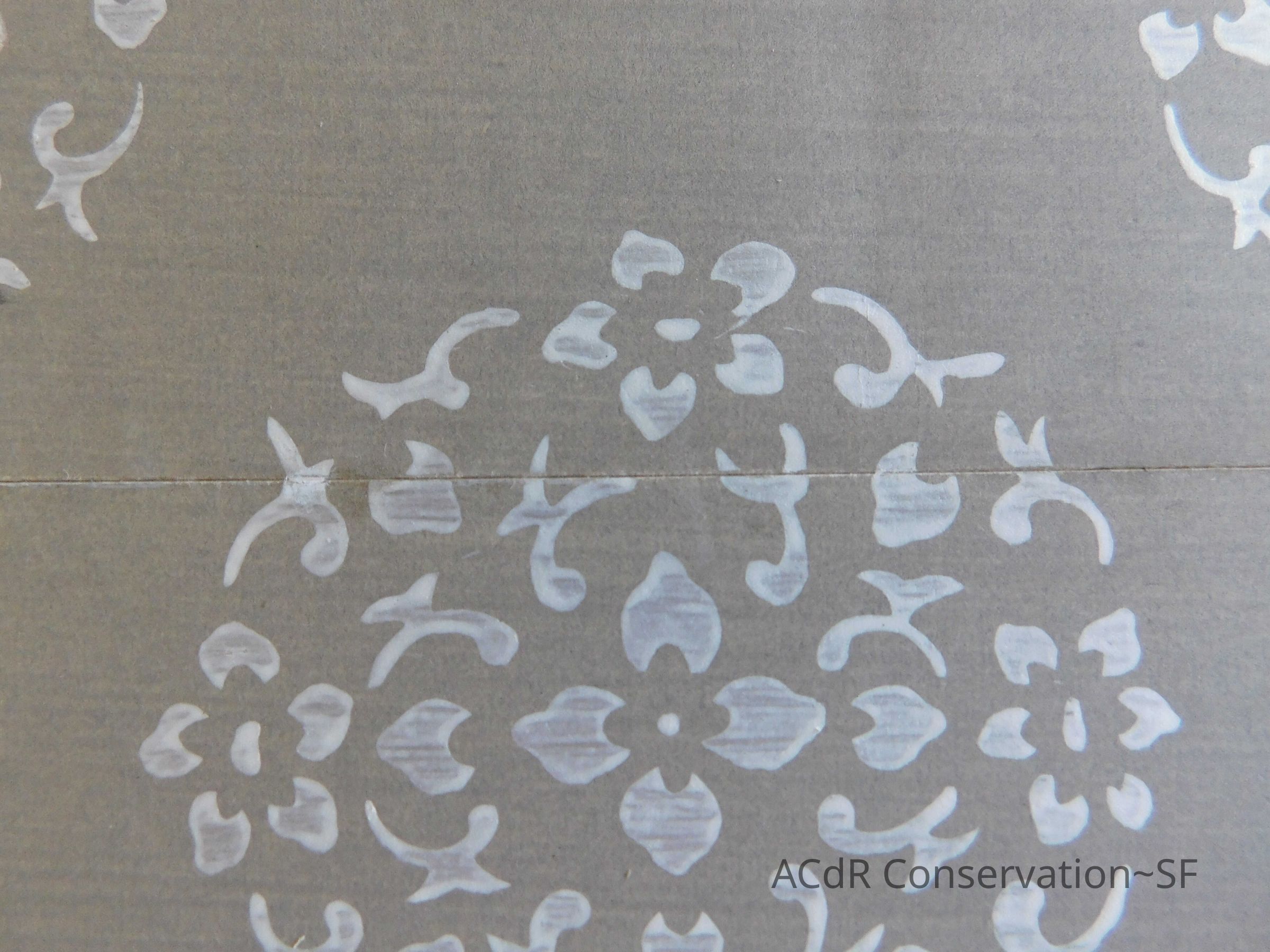

Traced the pattern of the screen (back side). Mixed watercolor to tone the paper for loss filling. Filled the hole with a pice of Japanese paper. Attached the edge of the original screen paper. Mixed watercolor to tone the insert paper. Toned four pieces of paper with watercolor. Used Manila folder to make a stamp seal. Mixed watercolor to draw the pattern. Toned two pieces of paper and drew the pattern on the insert paper. Made a mold of the hole and used it to cut the insert paper. Attached insert paper with starch paste. Filled gap between mended broken pieces with cellulose powder. Retouched the gap and faded out the area. Retouched tears with watercolor.

Humidification

Mar 29, 2019 - Apr 5, 2019

Humidified the previous mending and opened to re-mend with starch paste. Humidified the small puncture.

General Repair

Apr 5, 2019

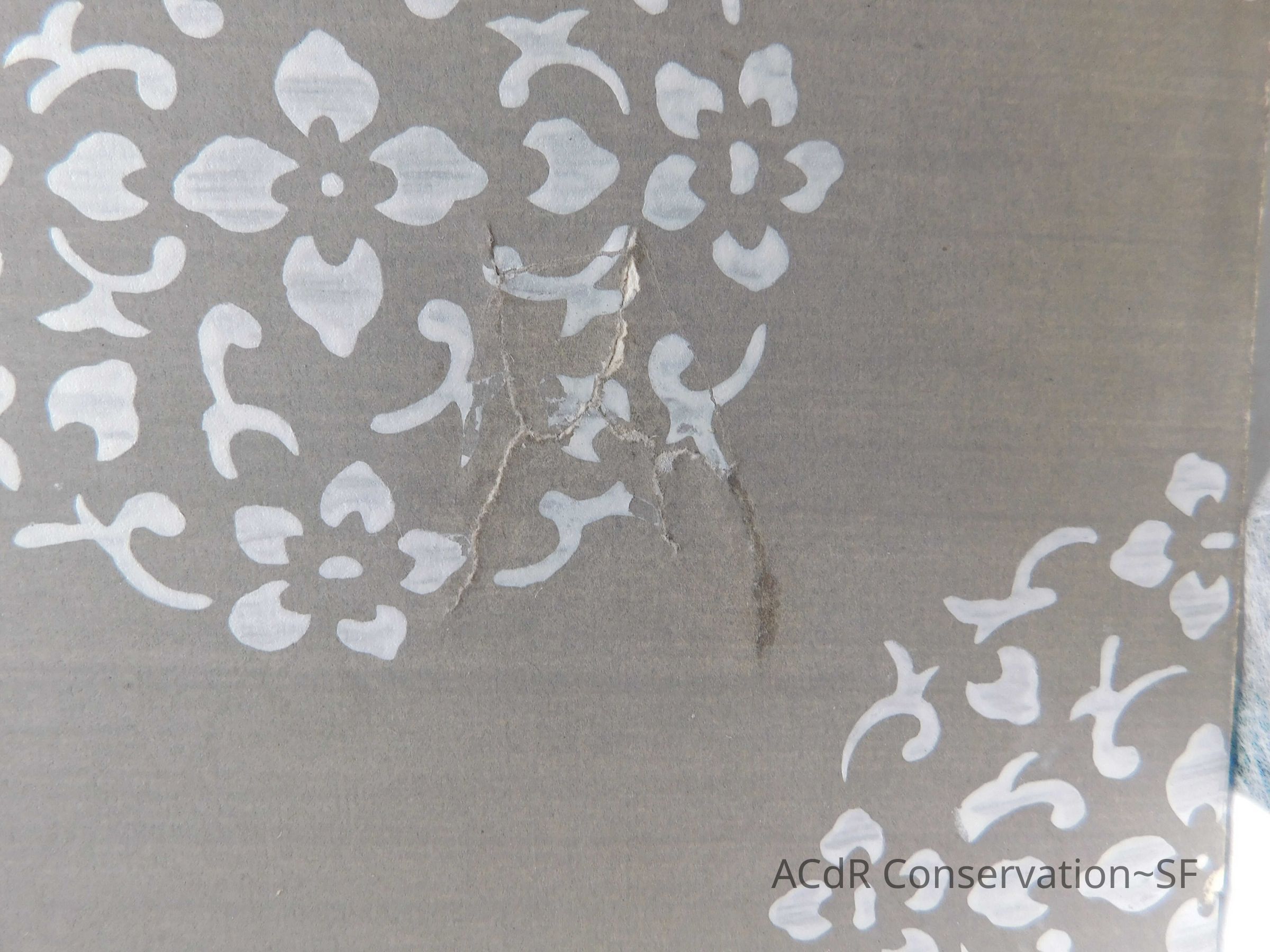

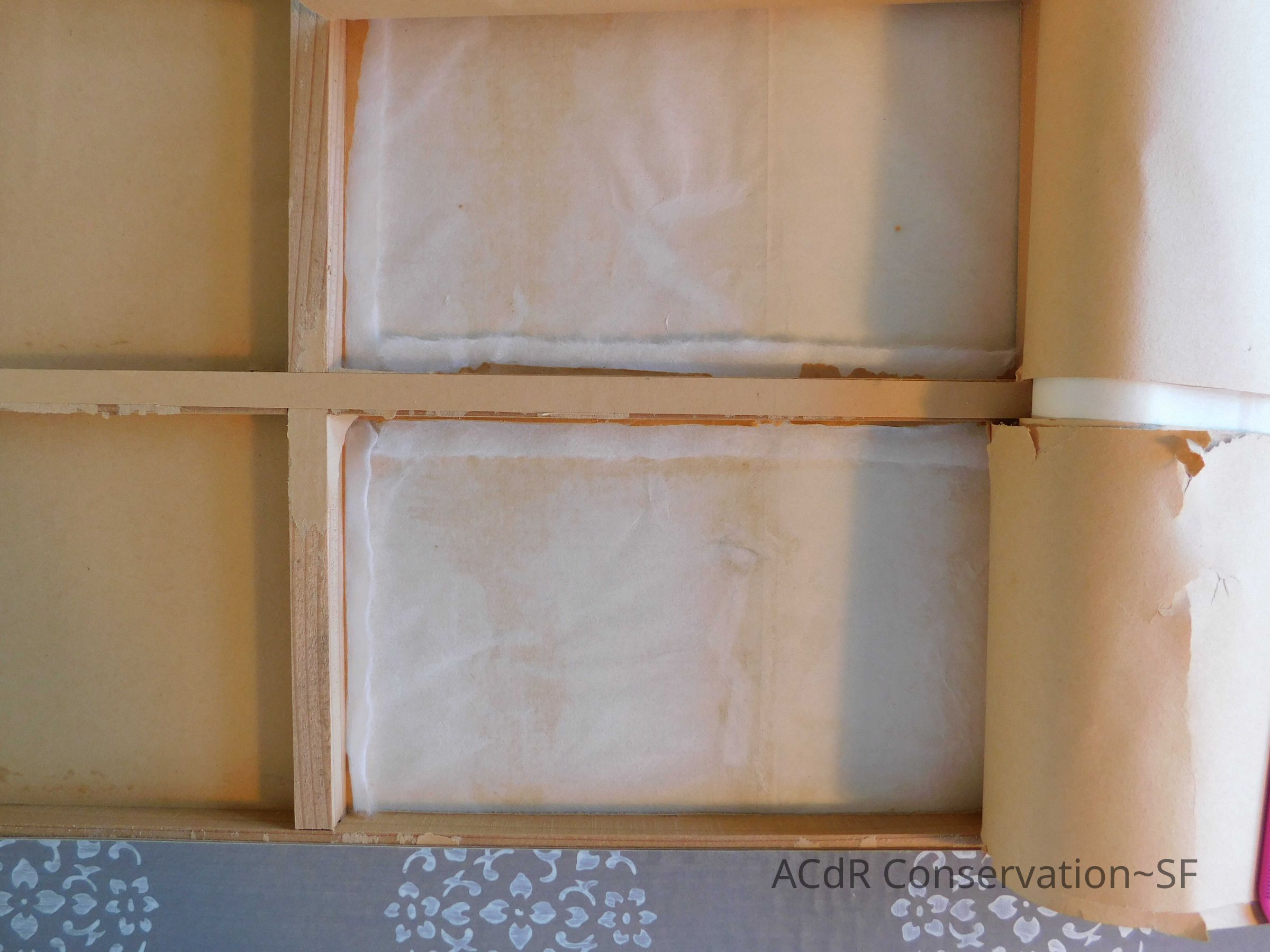

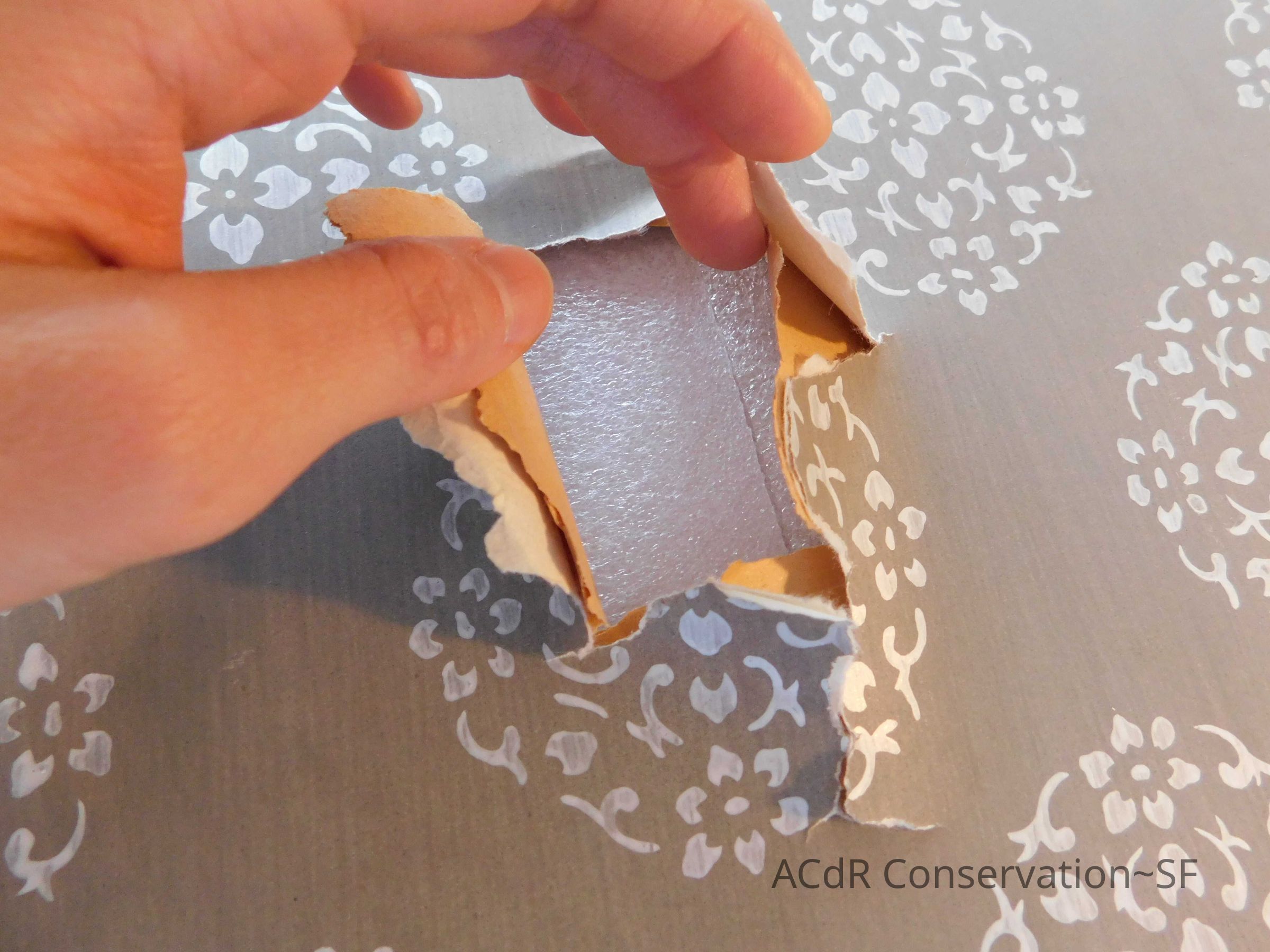

Measured the size of the small puncture and cut foam to fill the space under the painted layer.

Structural Support

Apr 8, 2019

Filled the small puncture with foam

Adhesive Repair/Removal

Apr 10, 2019

Mended the small puncture from front side with starch paste

Retouching

Apr 10, 2019

Retouched small puncture from front side

Registration

Apr 12, 2019

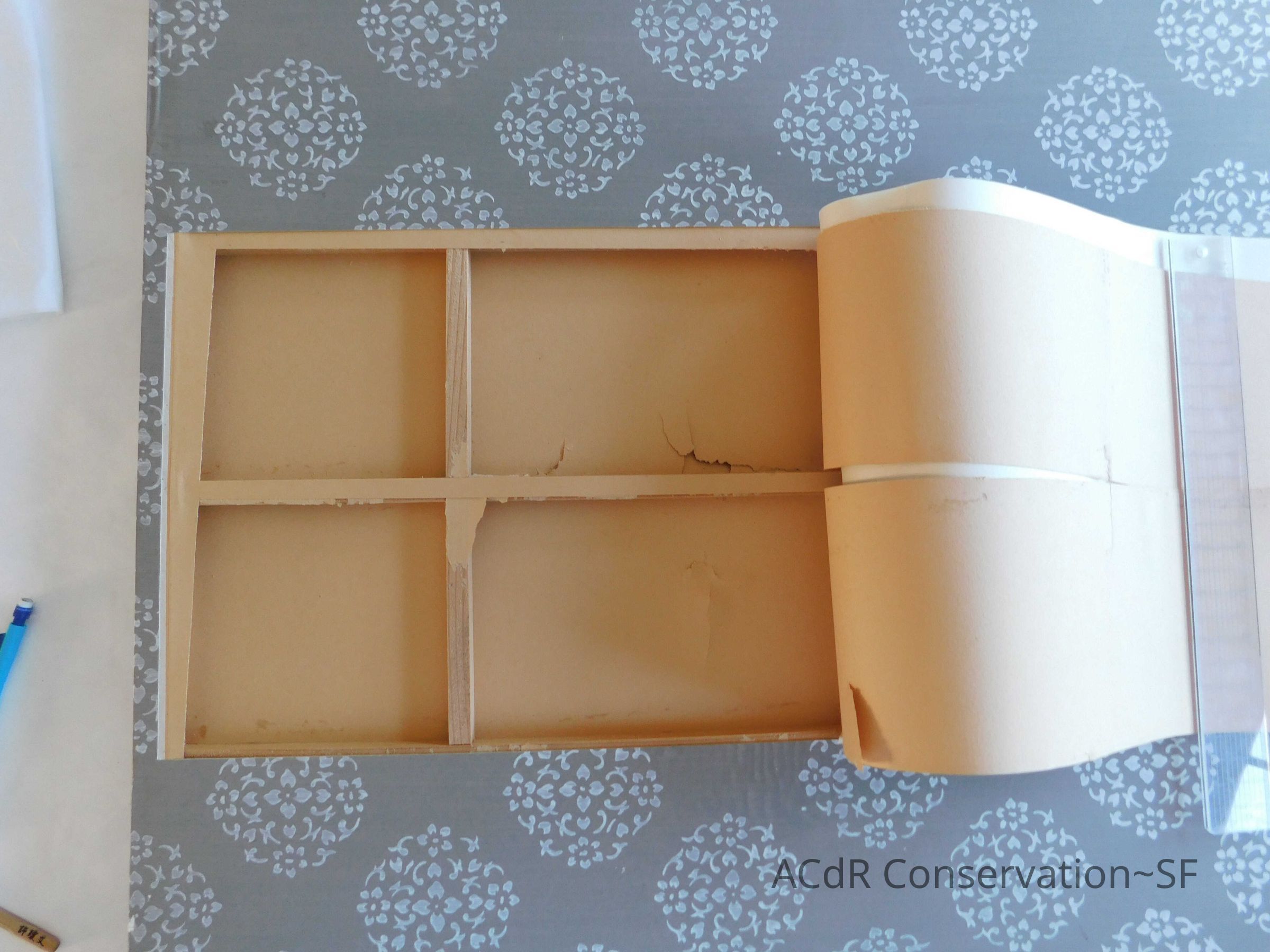

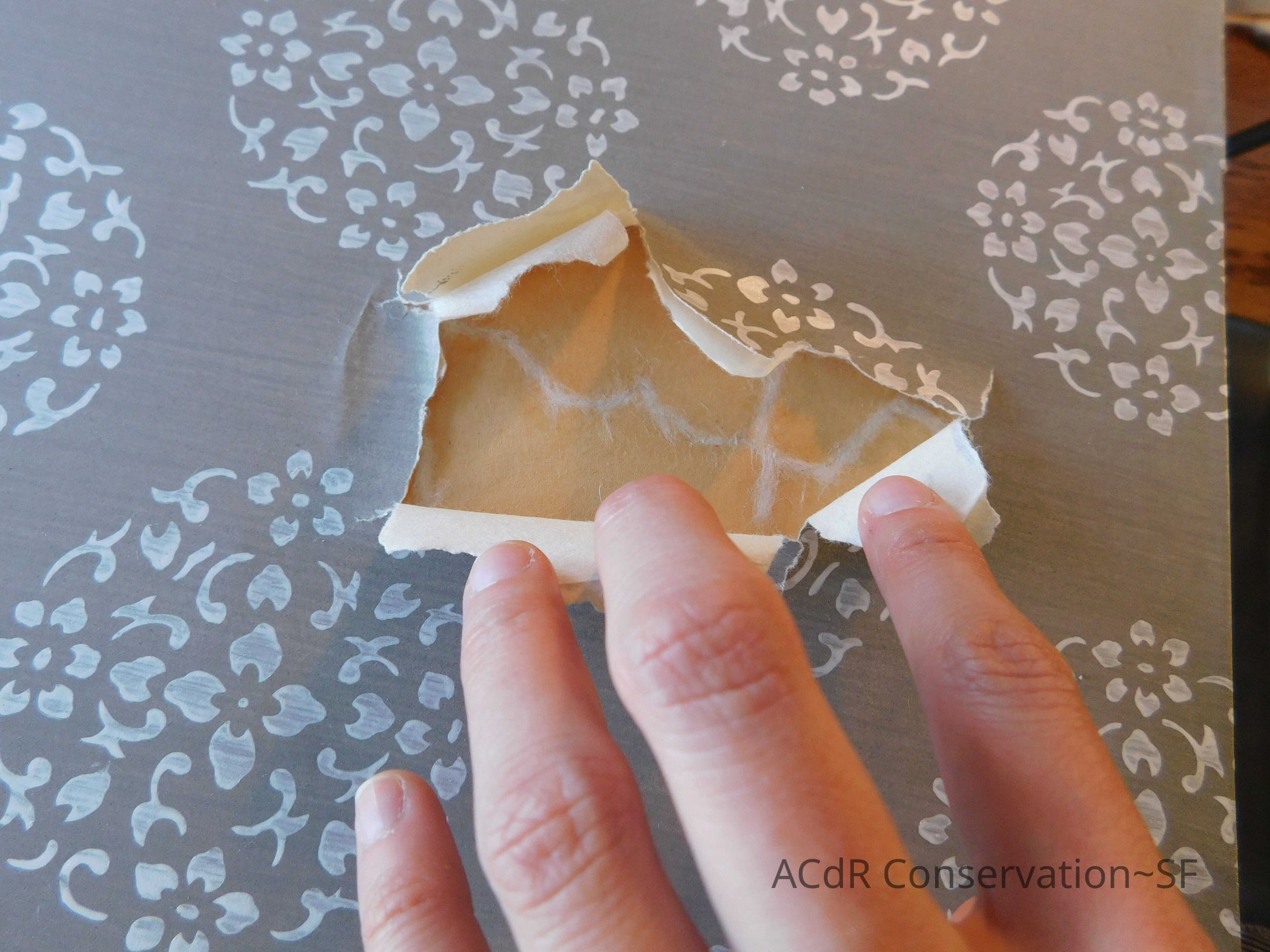

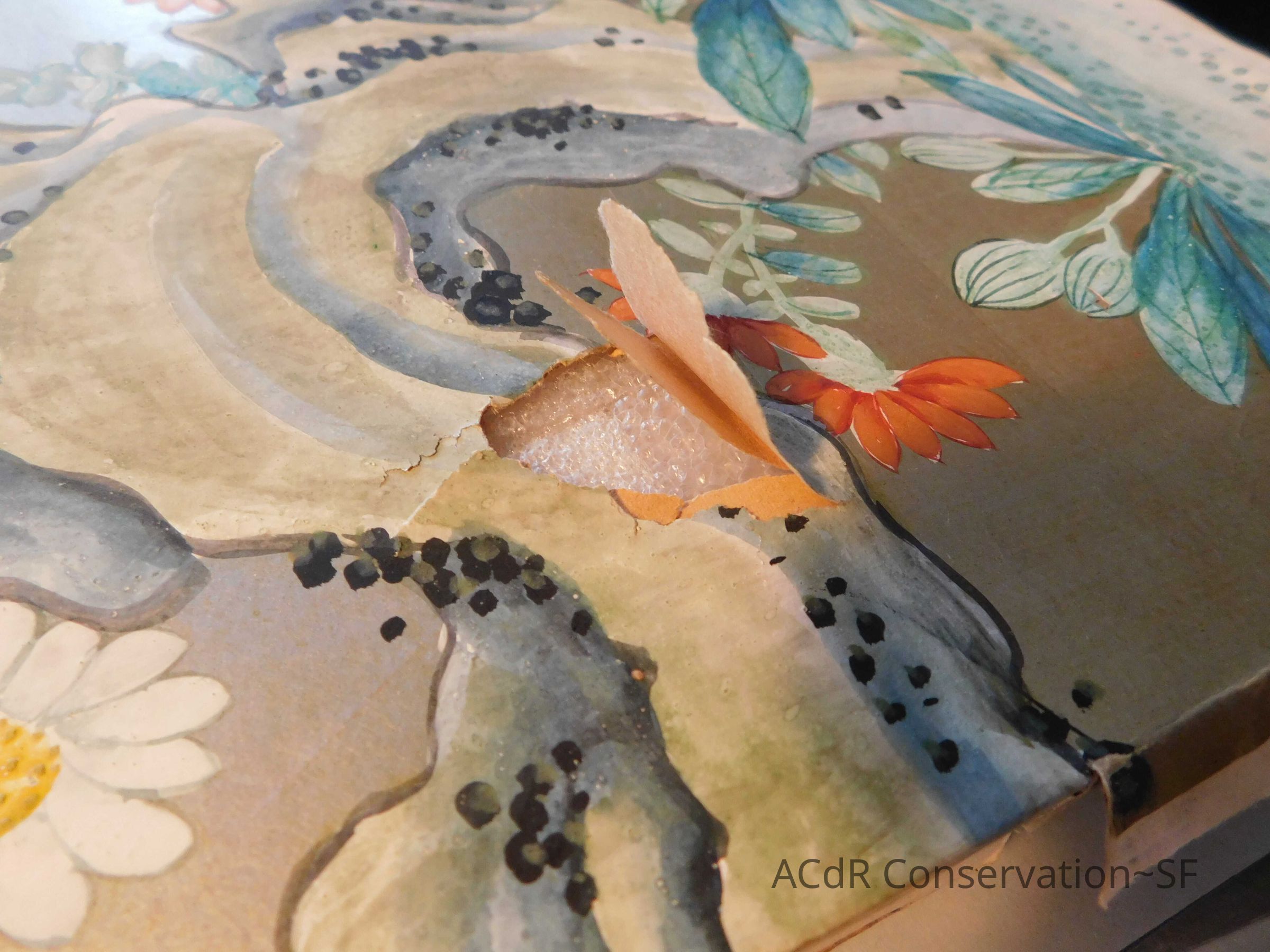

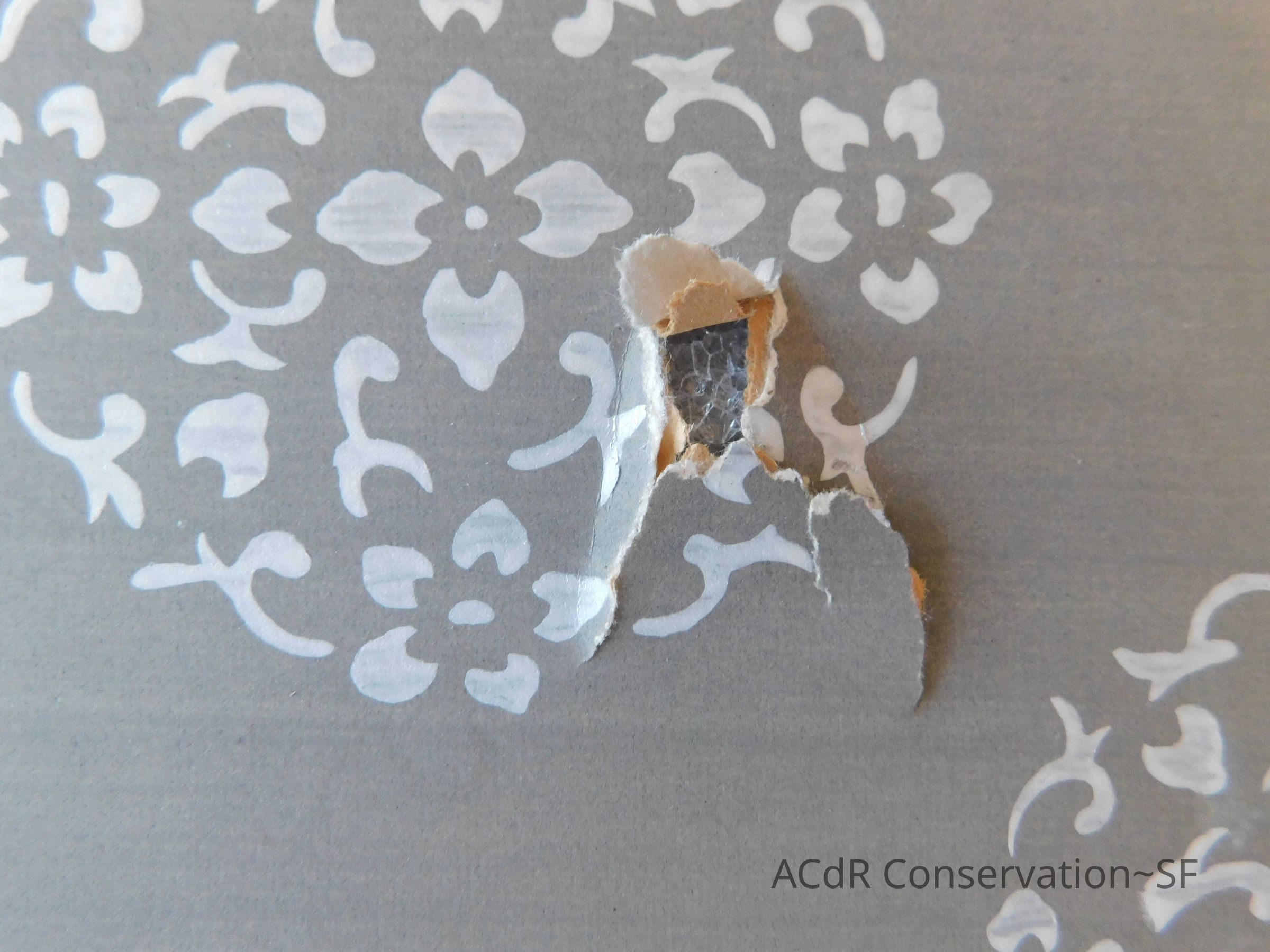

Mapped condition of the big puncture from back side and made cutting decision.

Disassemble

Apr 12, 2019

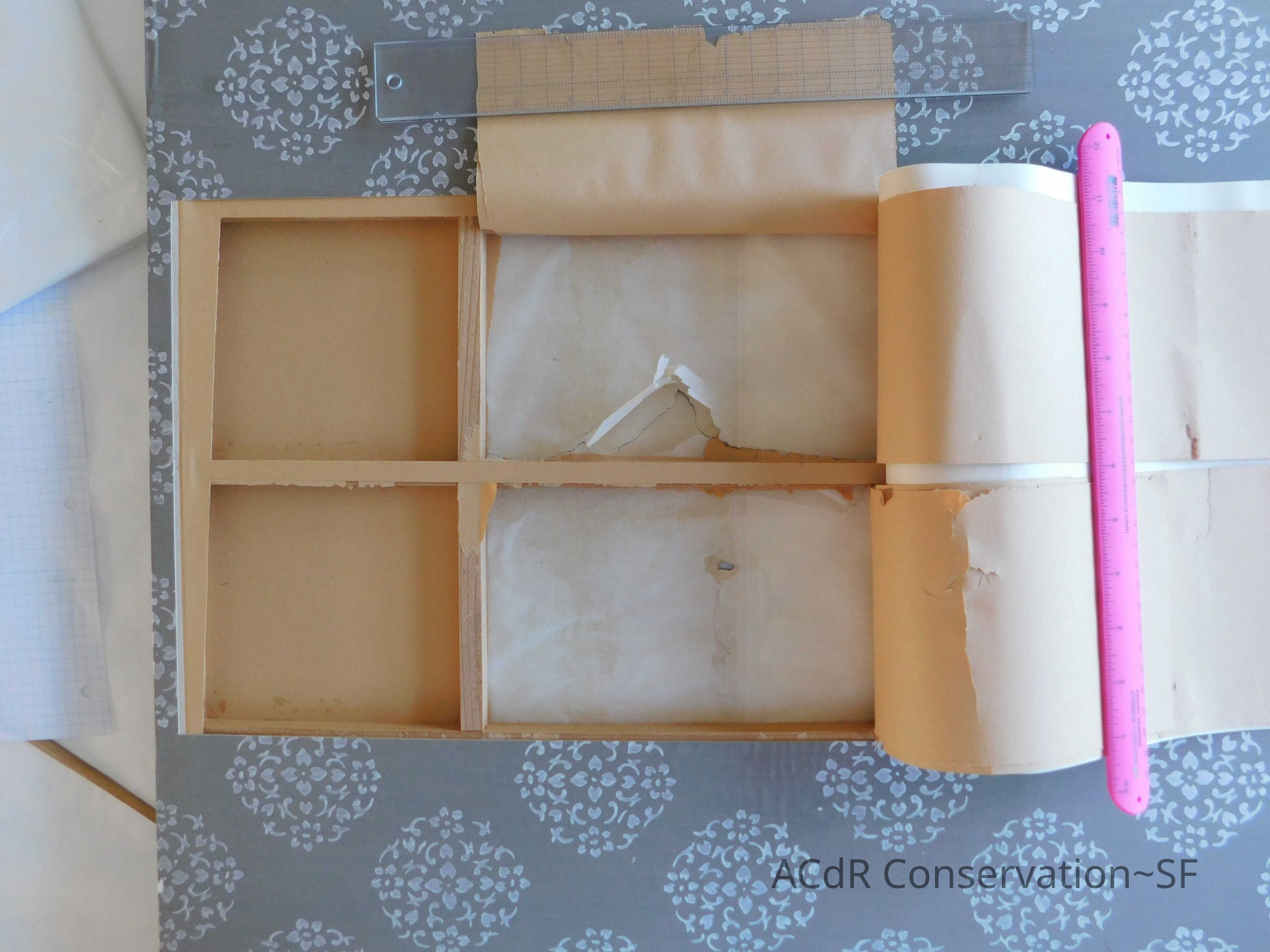

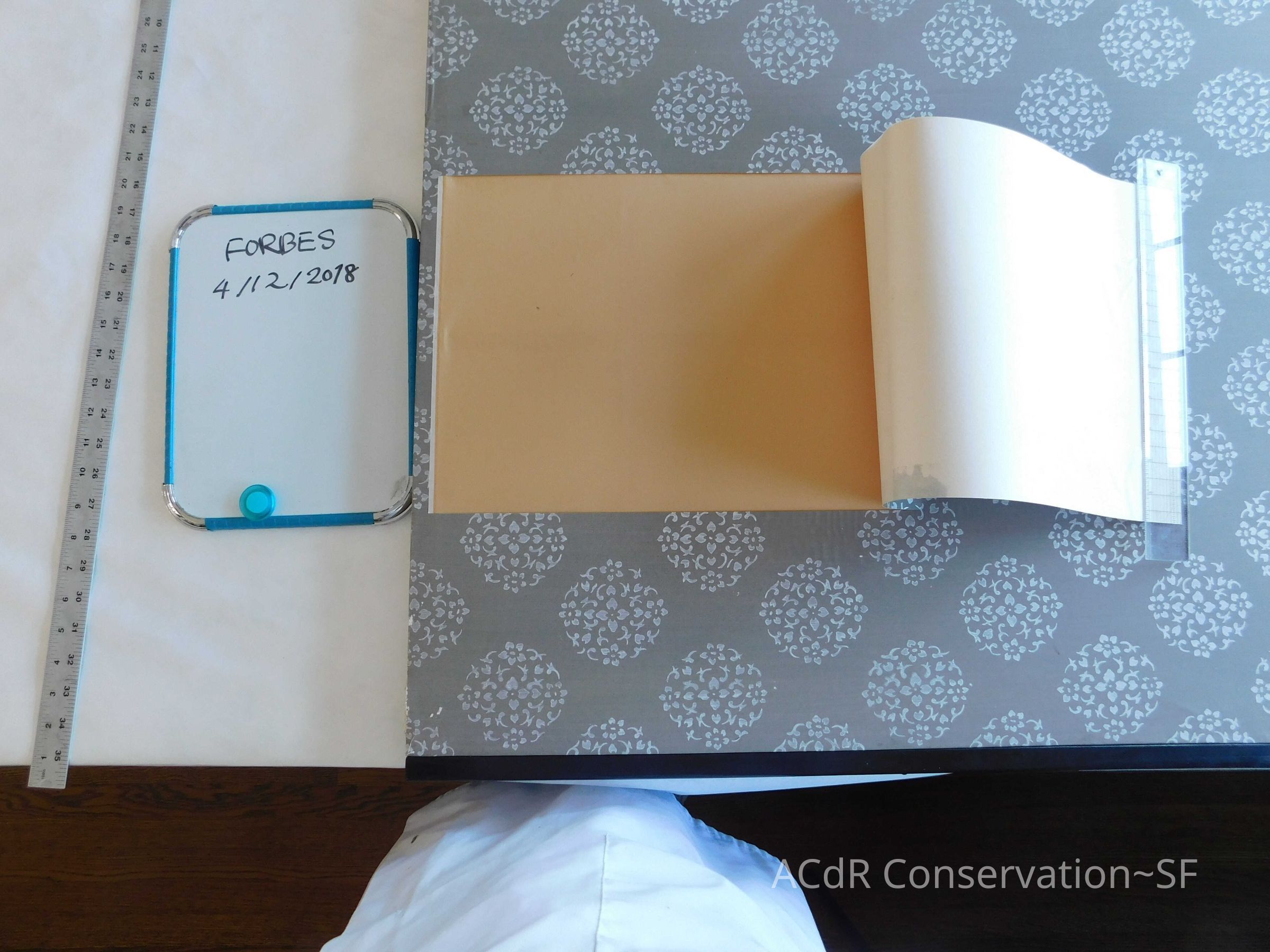

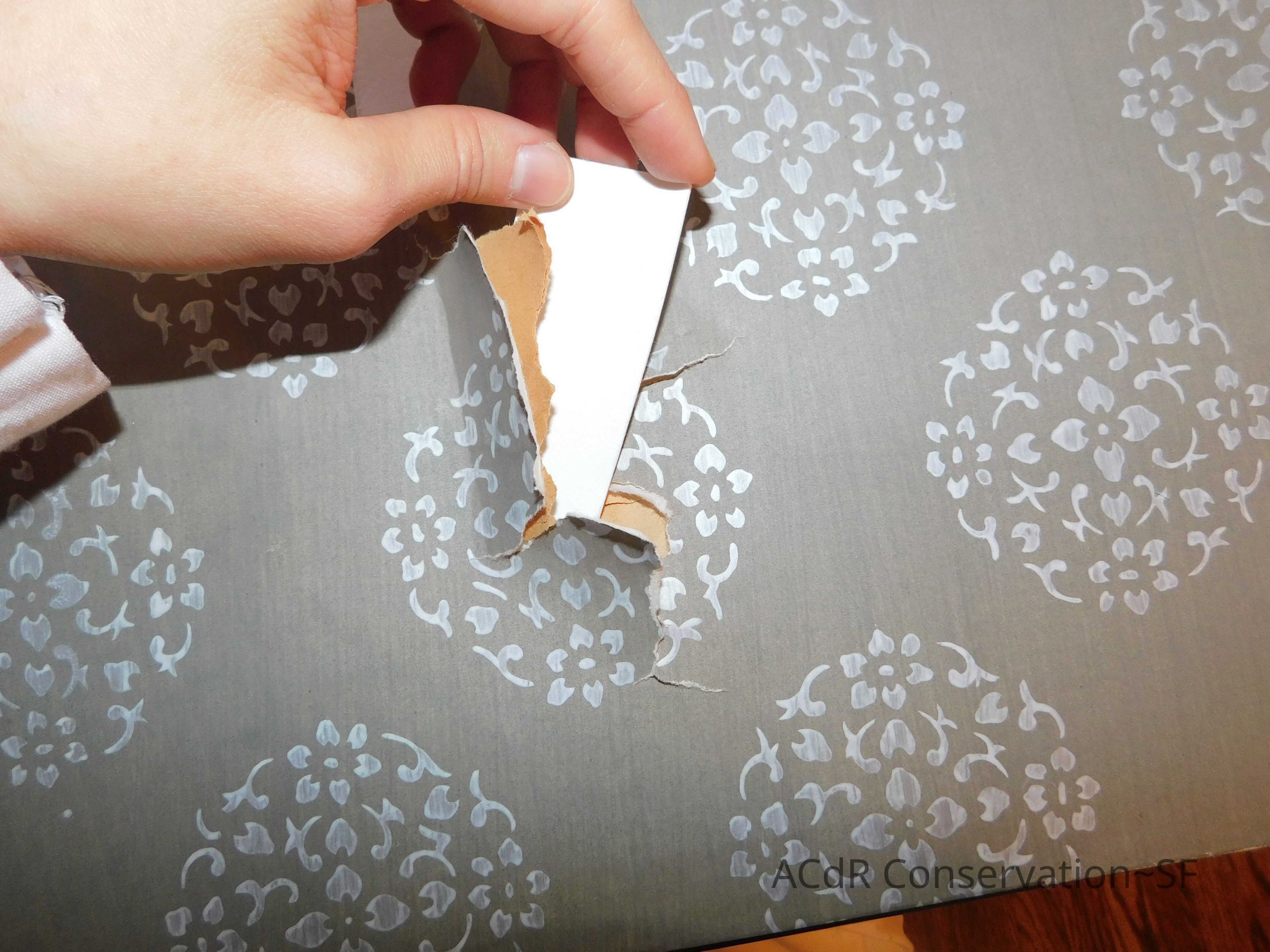

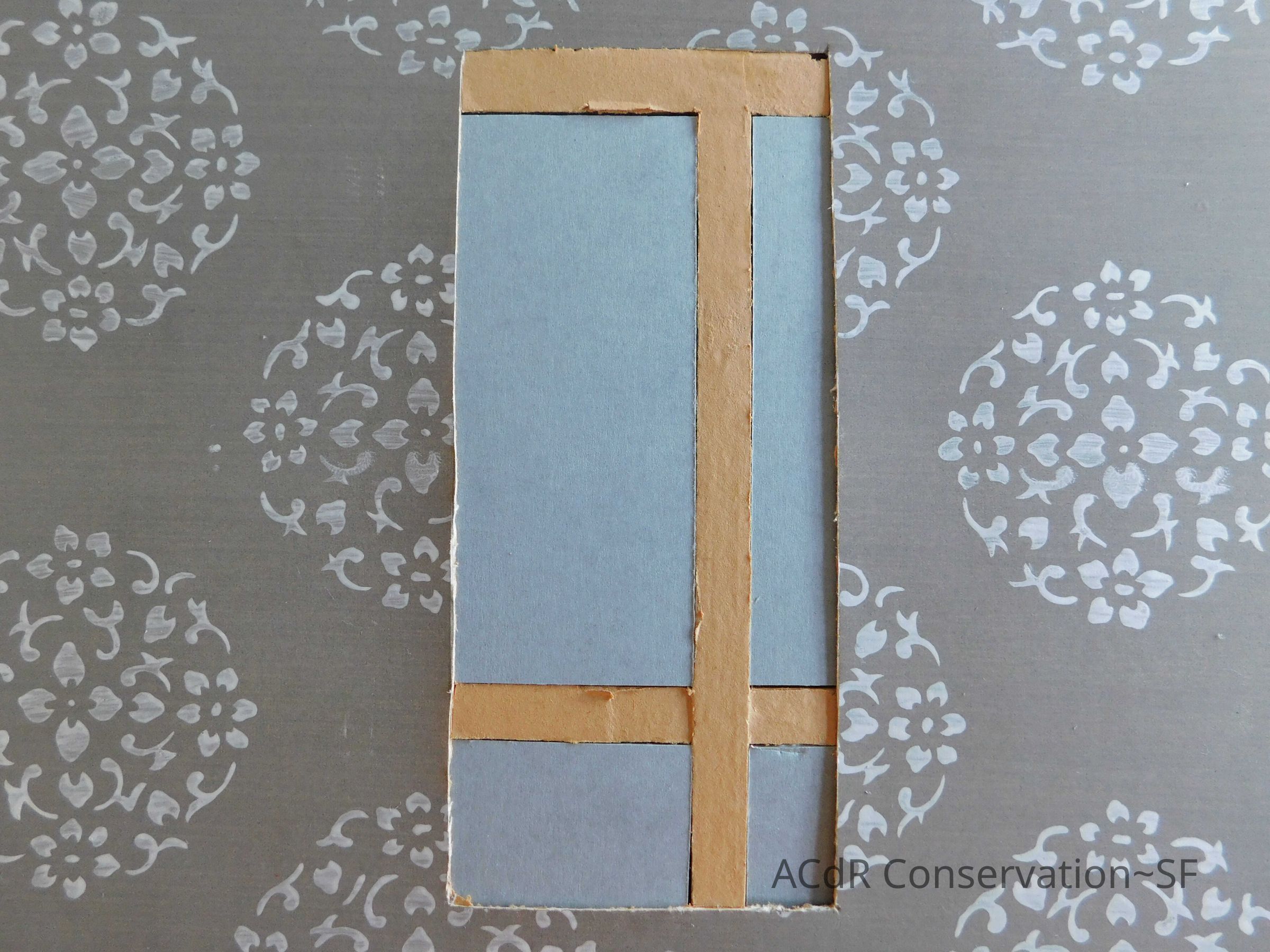

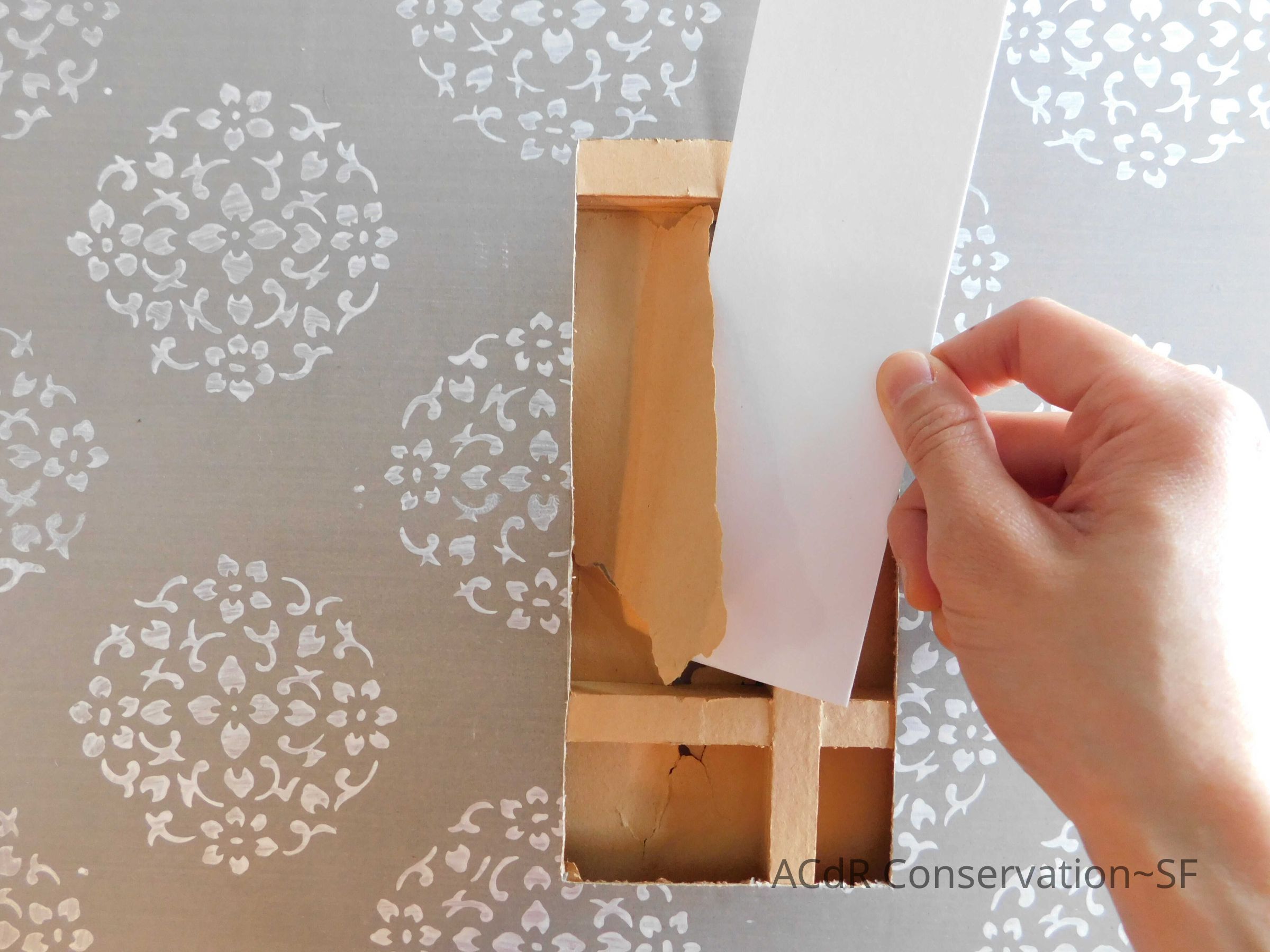

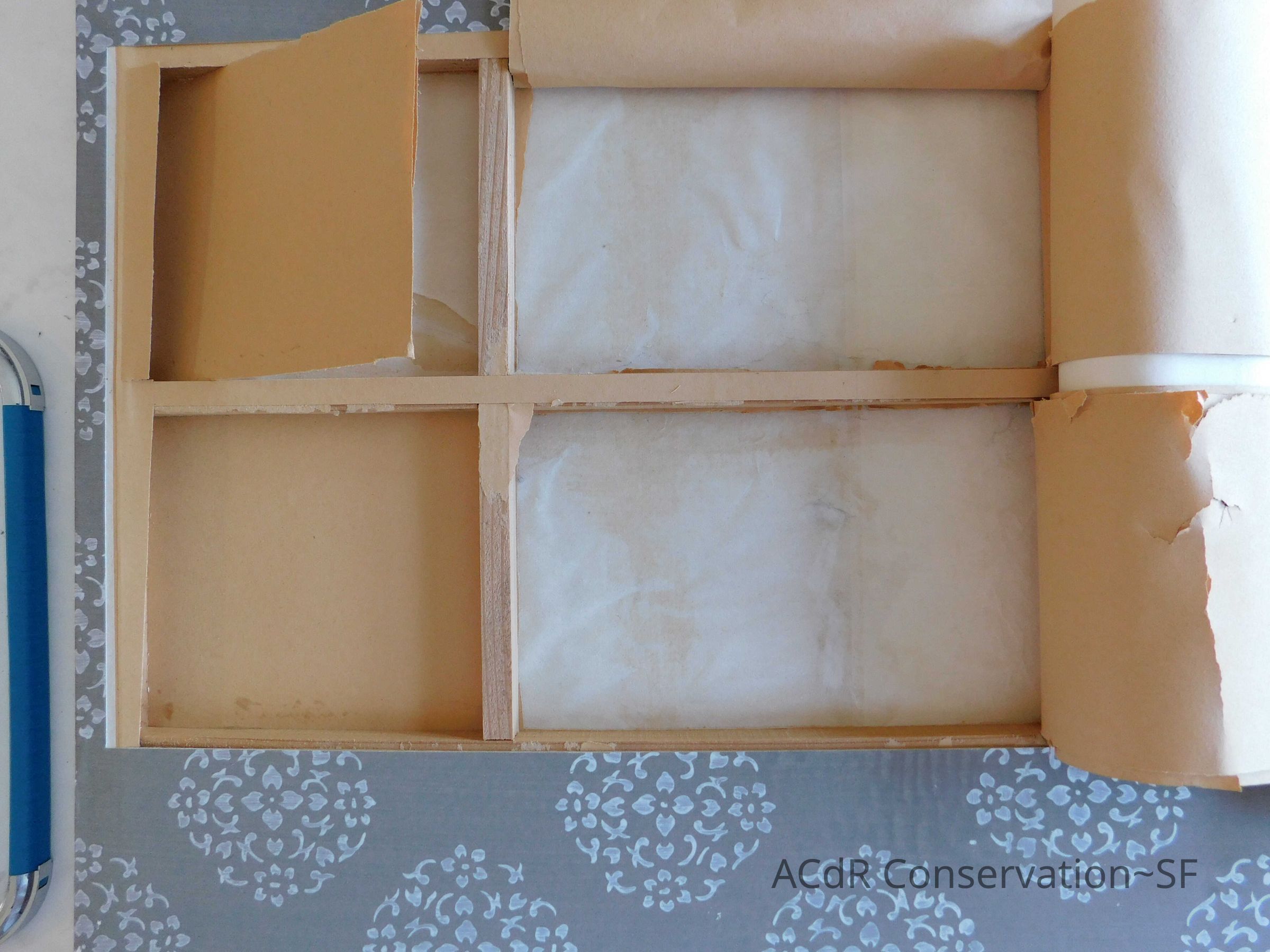

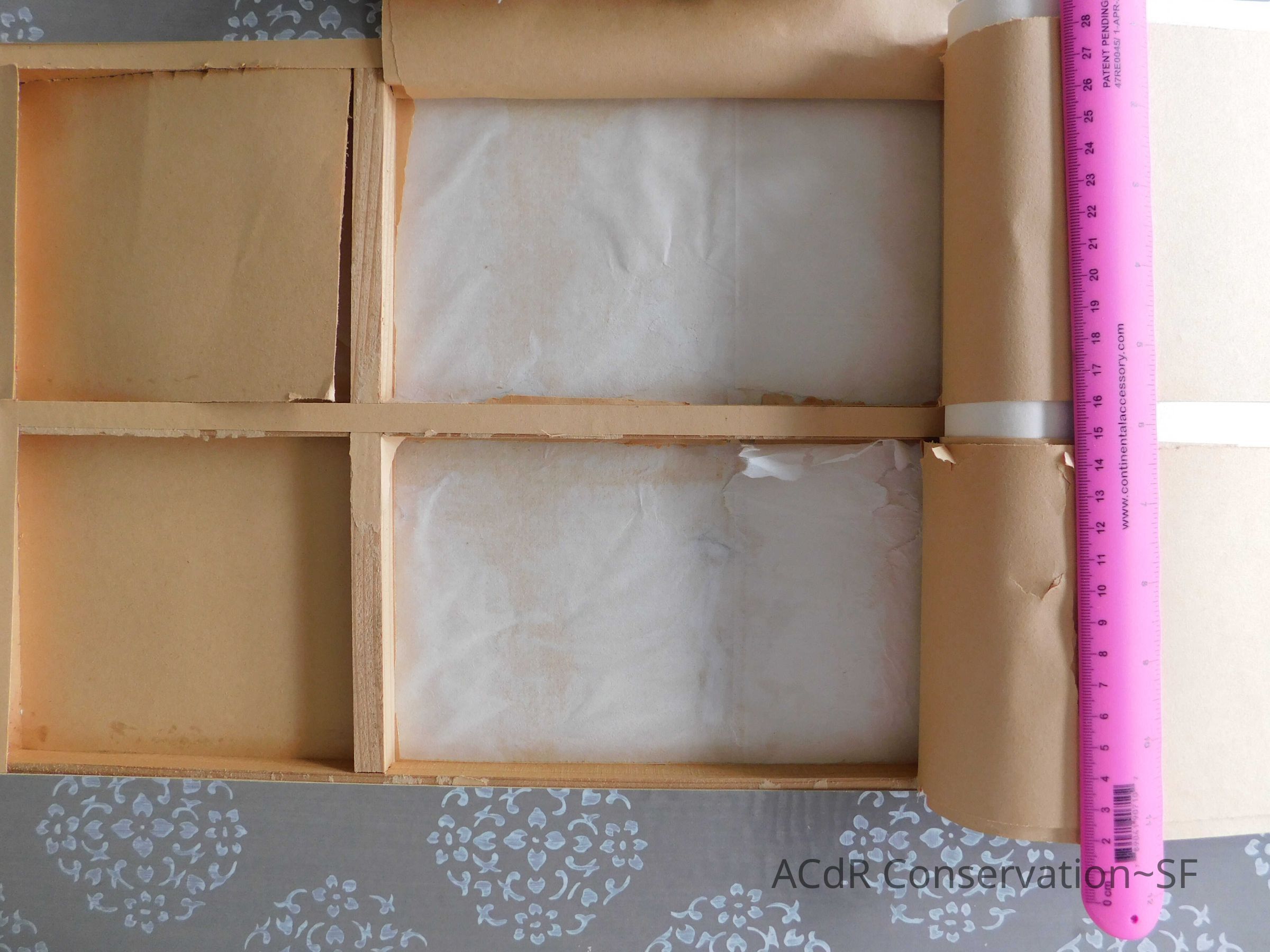

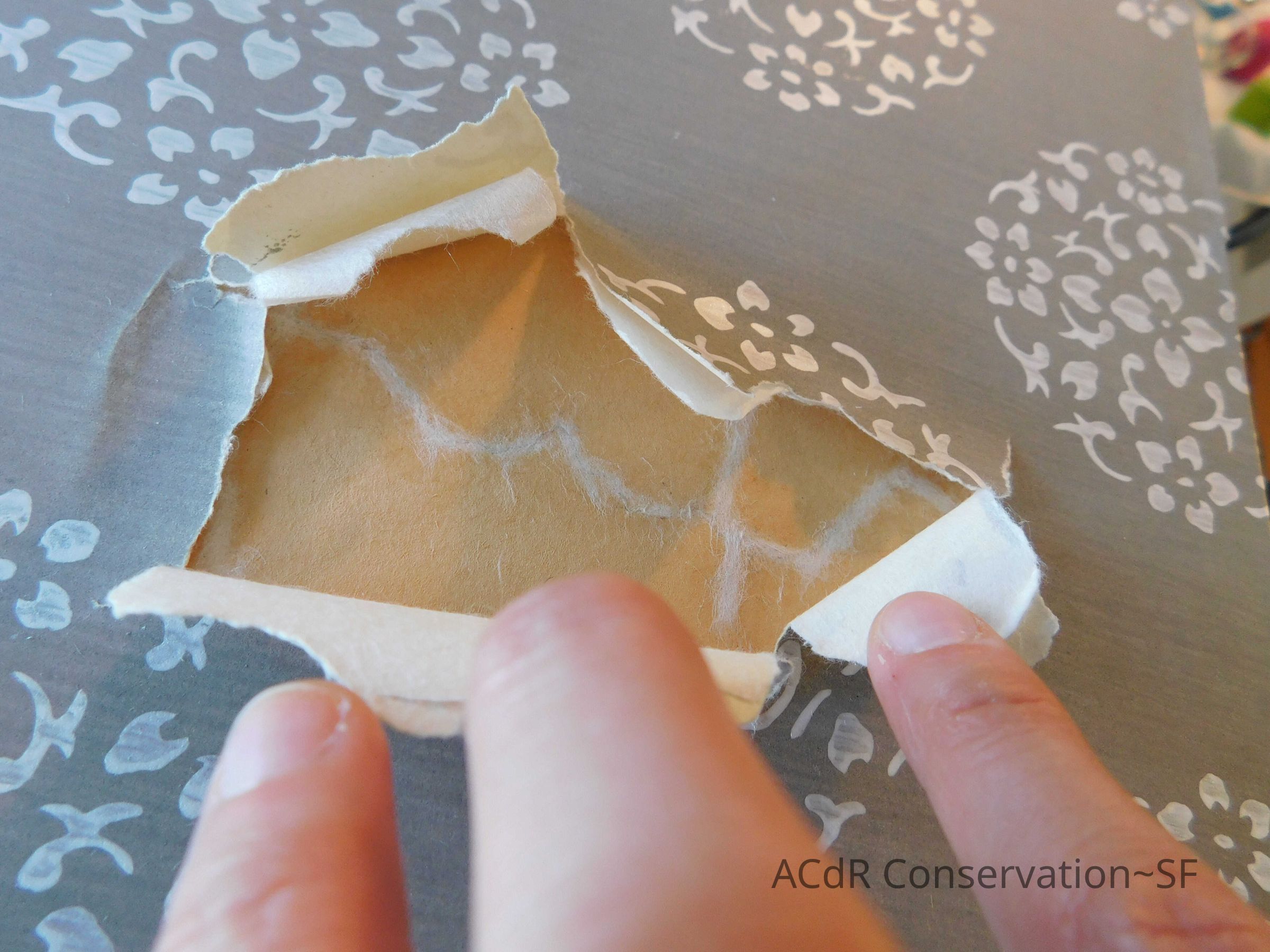

Cut three sides of rectangle from back side of big puncture

Adhesive Repair/Removal

Apr 12, 2019 - Apr 15, 2019

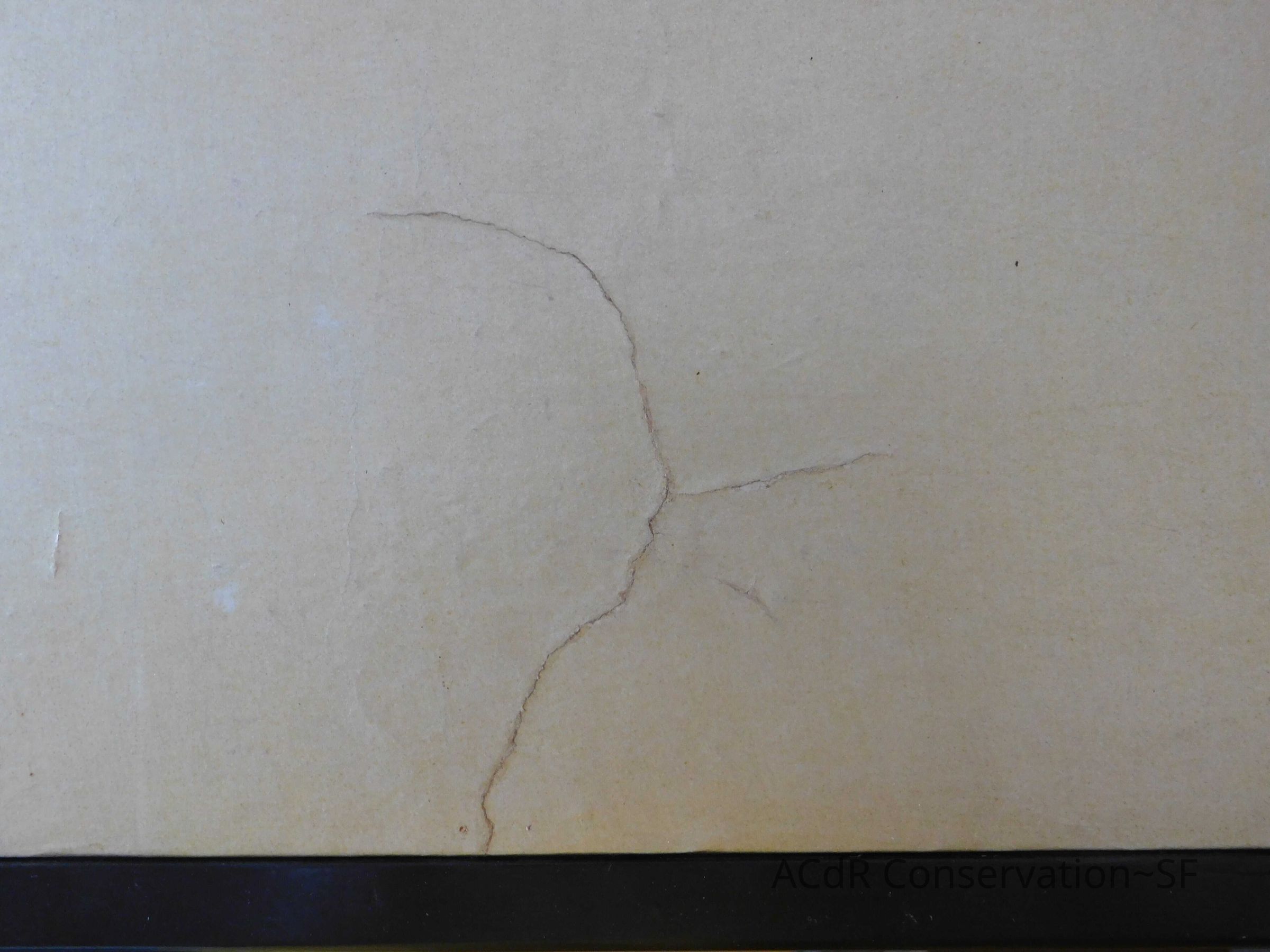

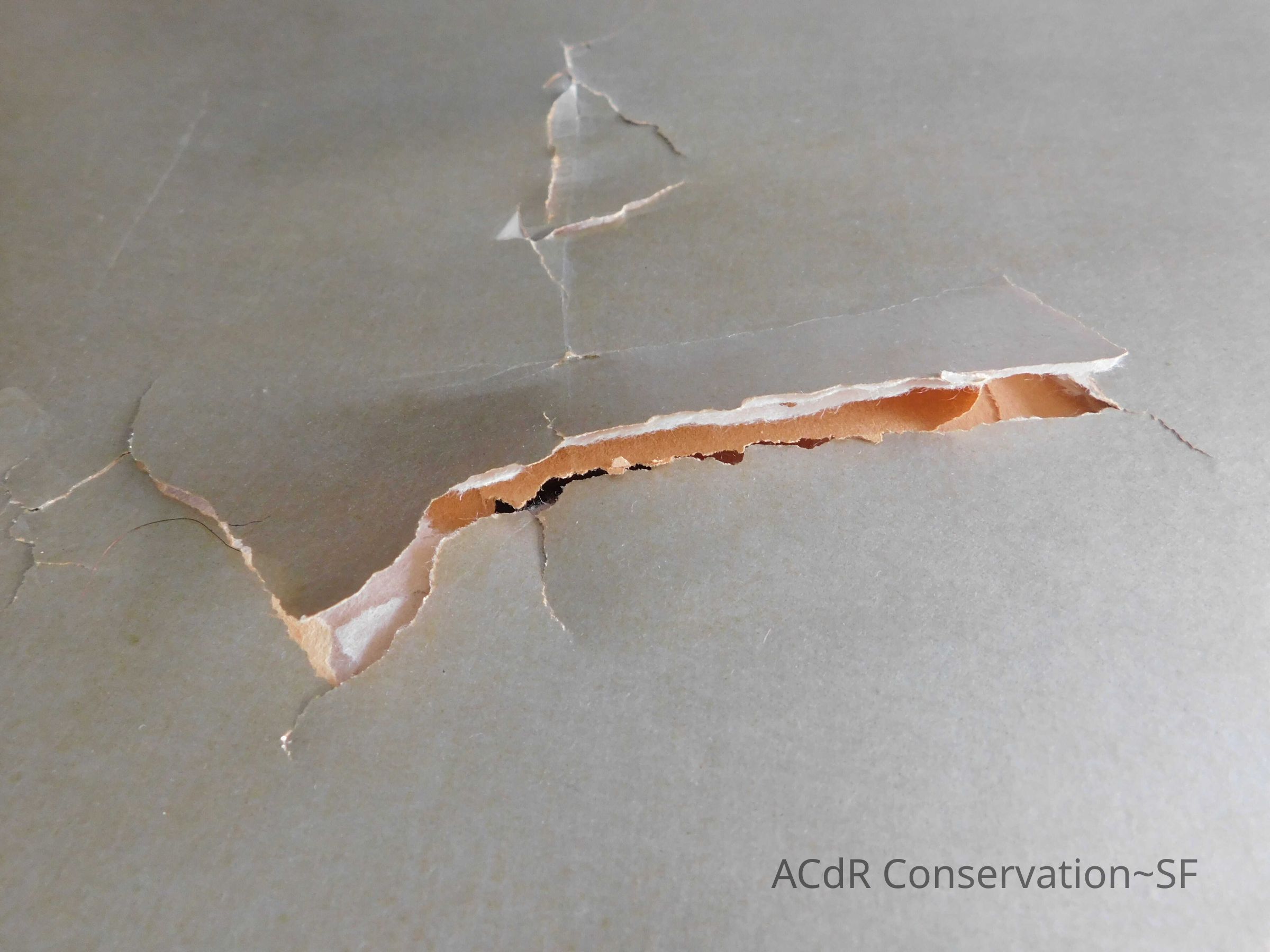

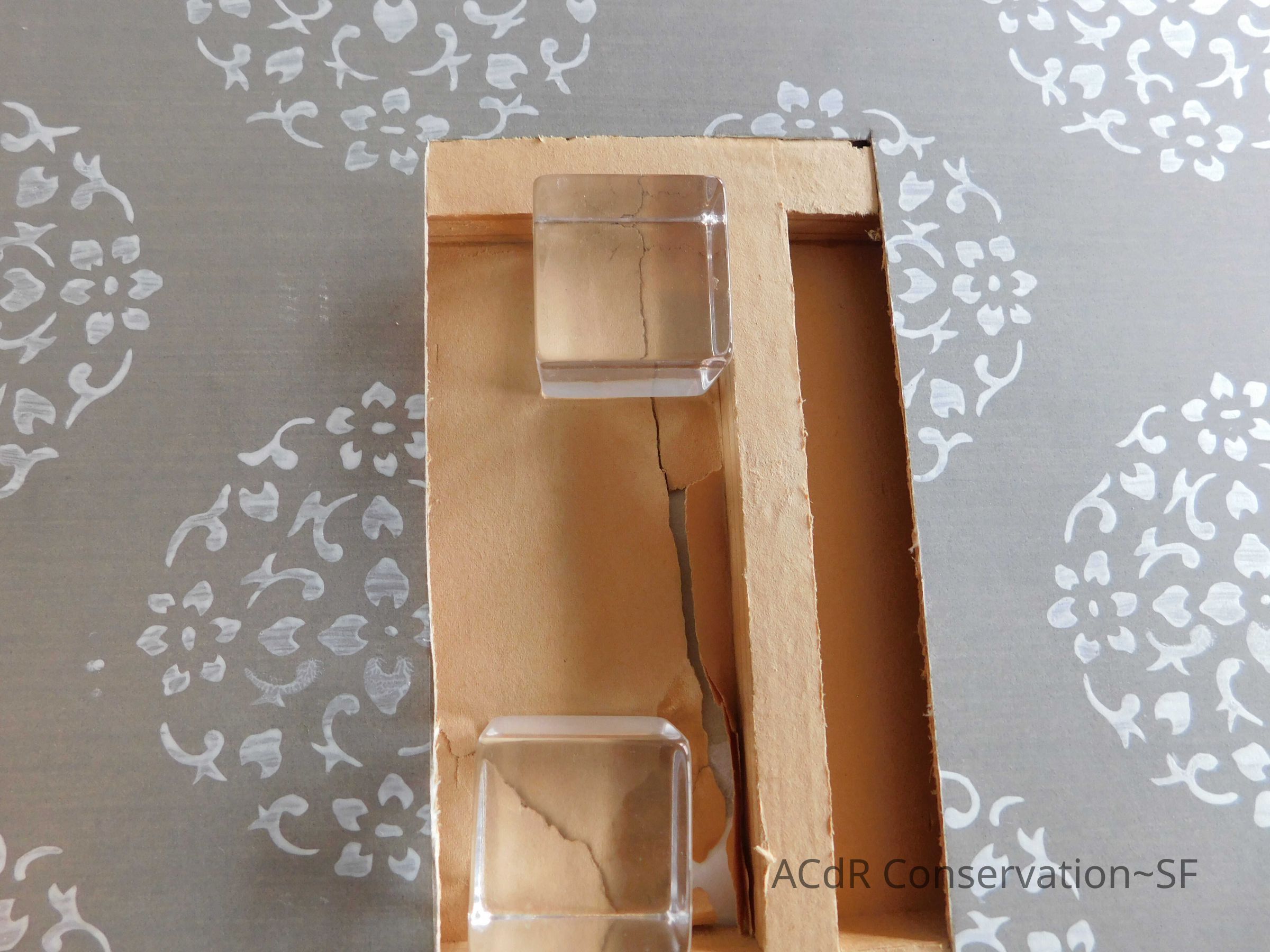

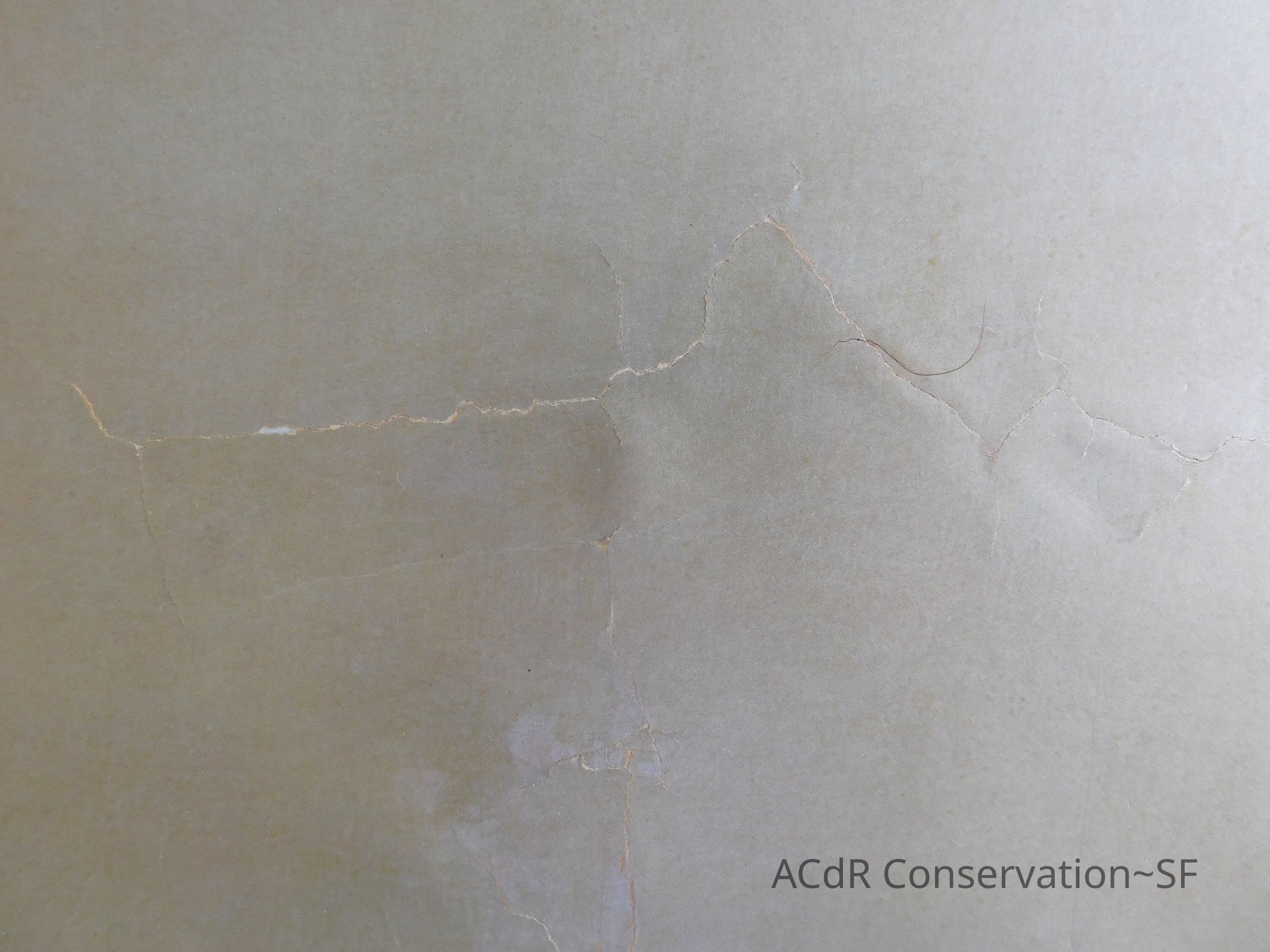

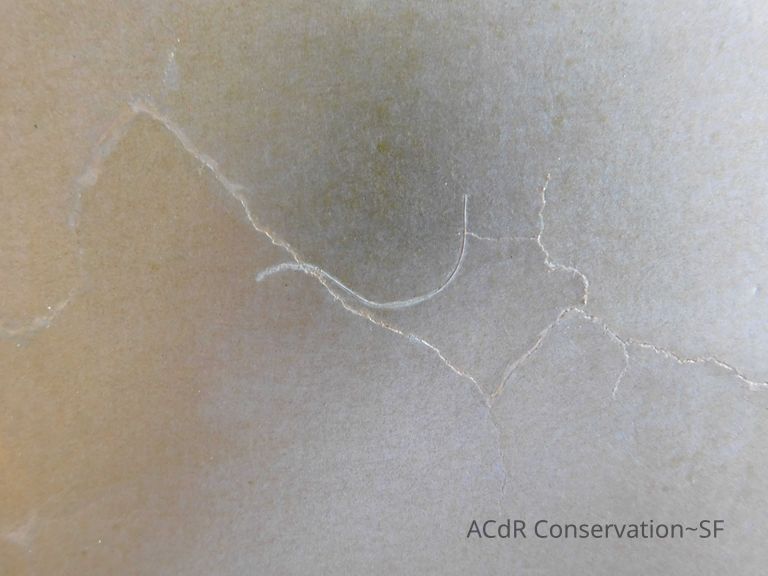

Mended tears of large puncture with Japanese paper and starch paste

Humidification

Apr 17, 2019

Humidified large puncture for 90 min. And flattened uneven part of blotter sandwich

Adhesive Repair/Removal

Apr 17, 2019 - Apr 19, 2019

For small puncture on back, adjusted thickness of foam and mended tears. Attached hinge with starch paste

Humidification

Apr 19, 2019

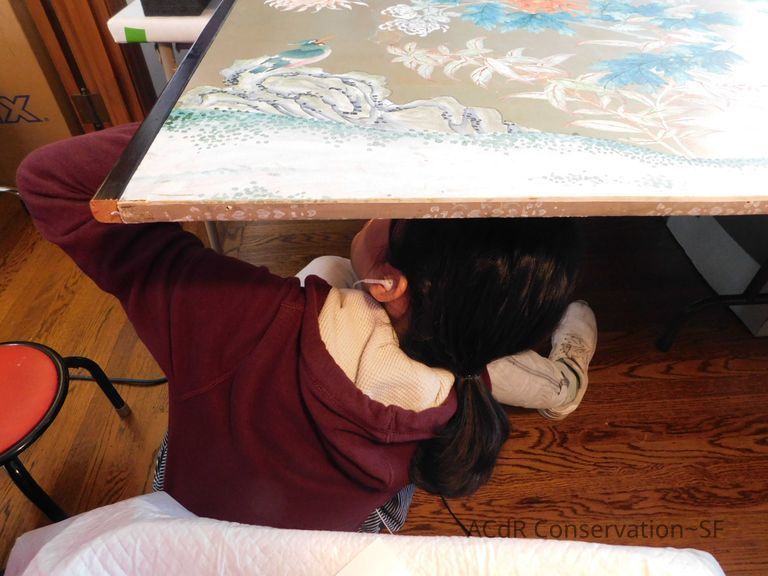

Humidified large puncture from back side, flattened uneven part and mended/retouched tears.

Adhesive Repair/Removal

Apr 22, 2019 - Apr 24, 2019

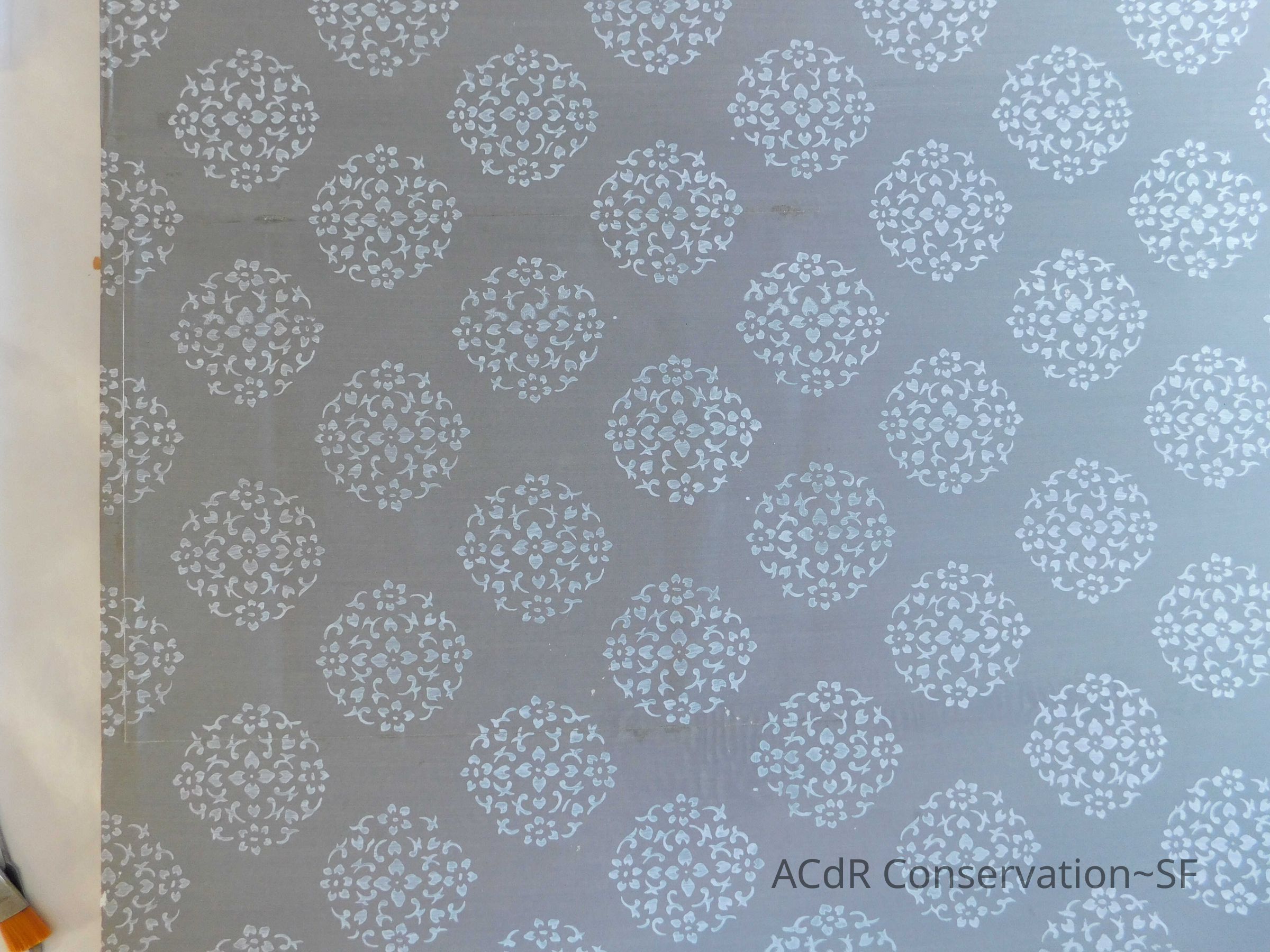

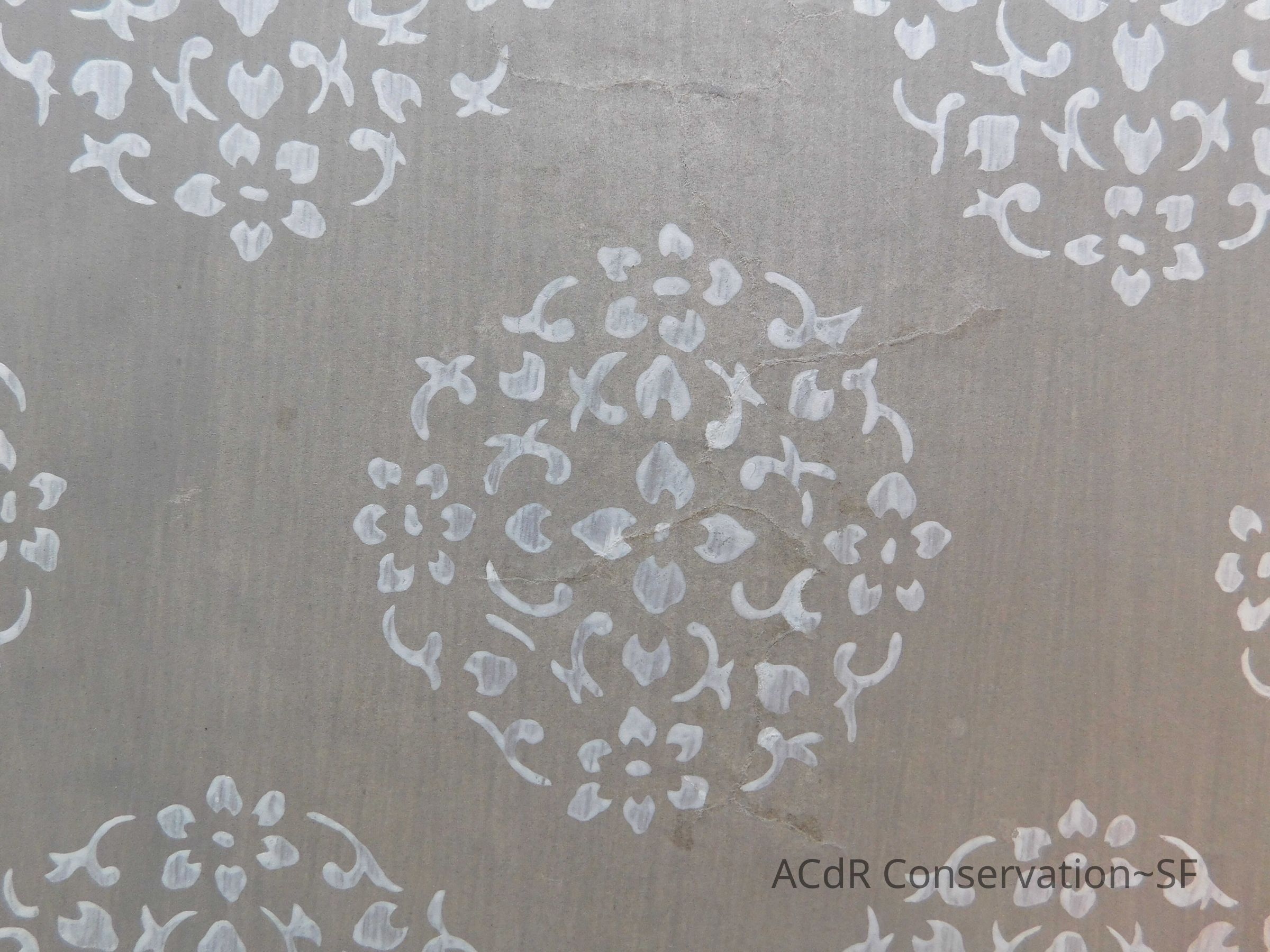

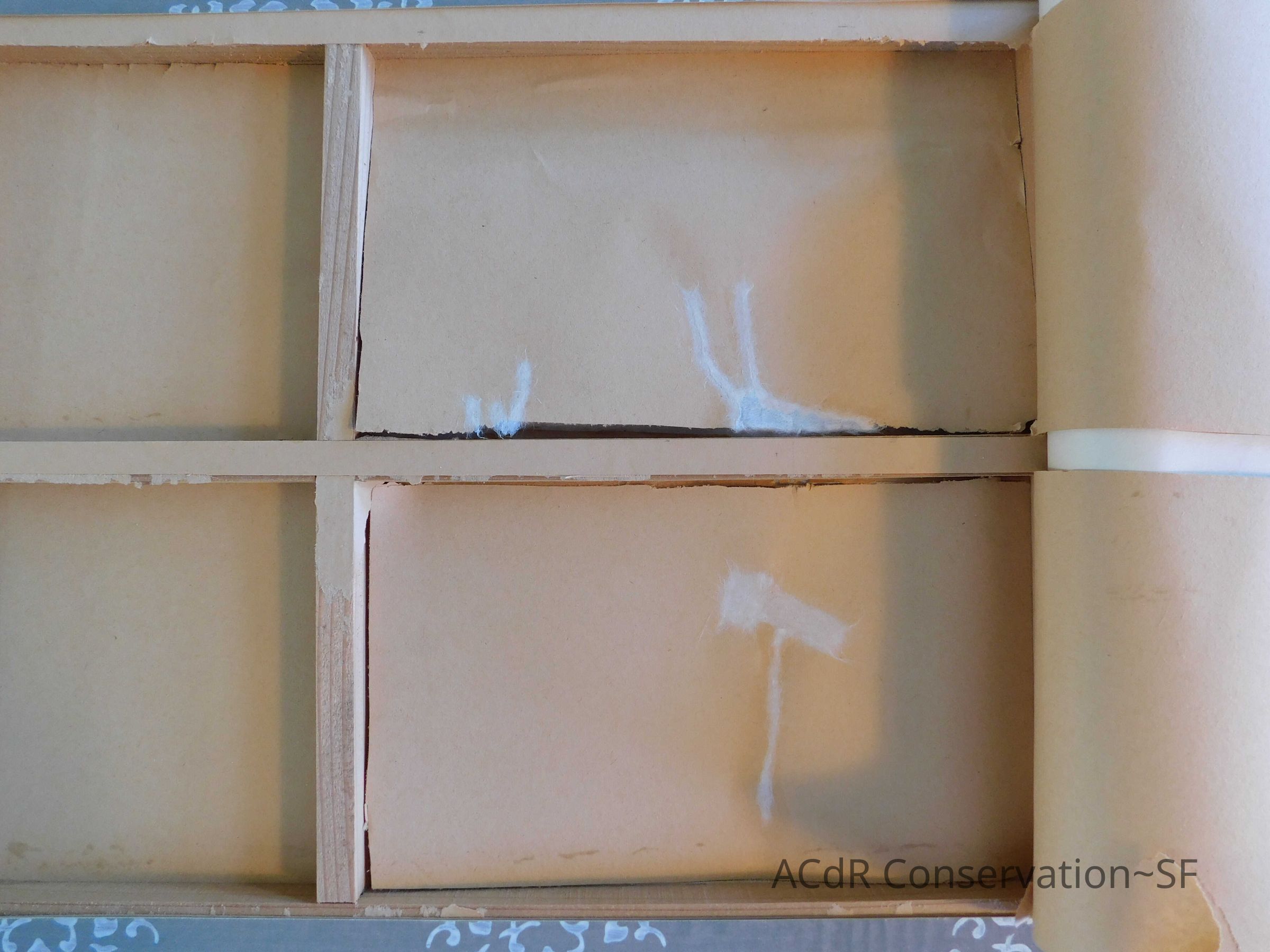

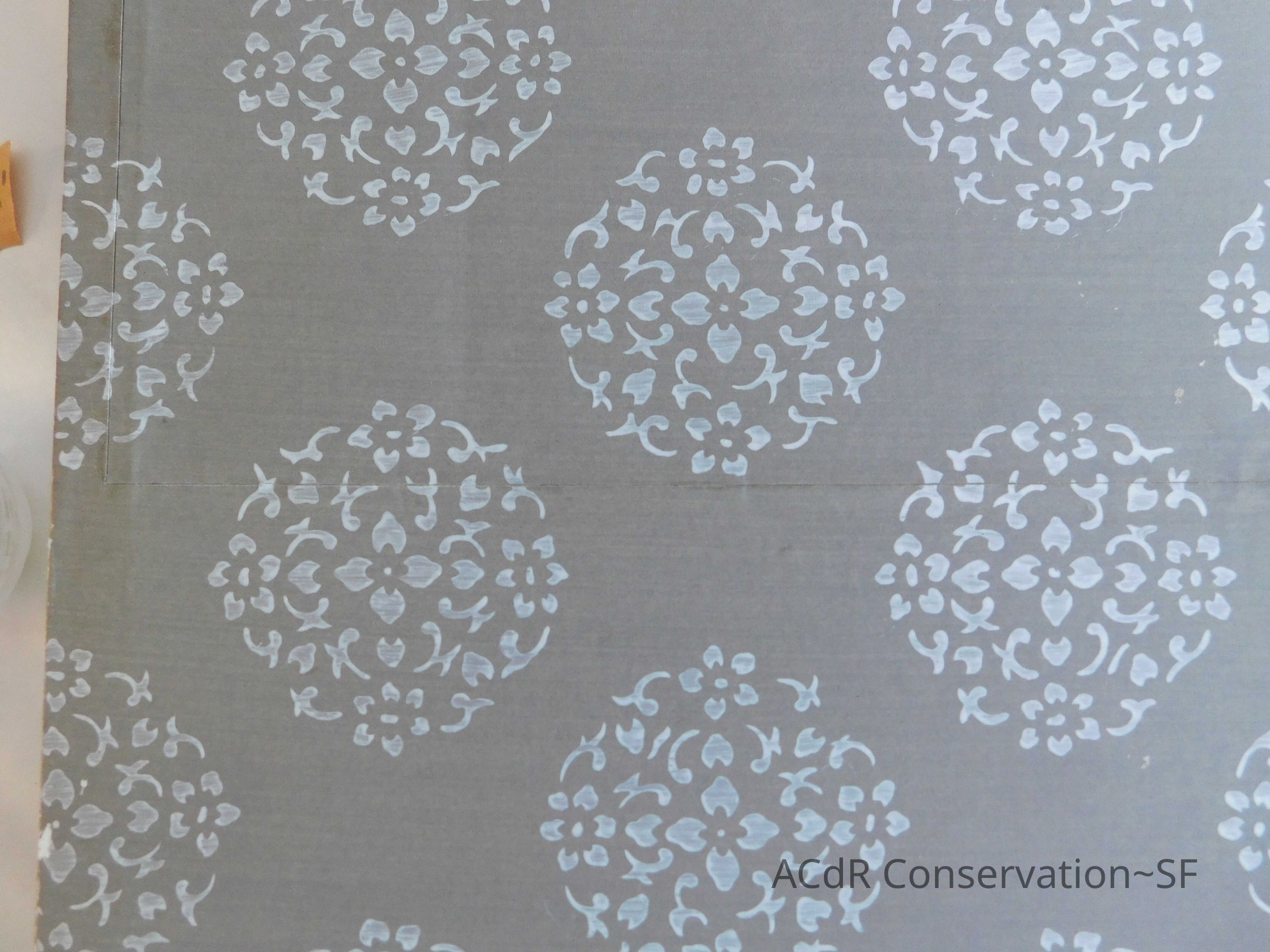

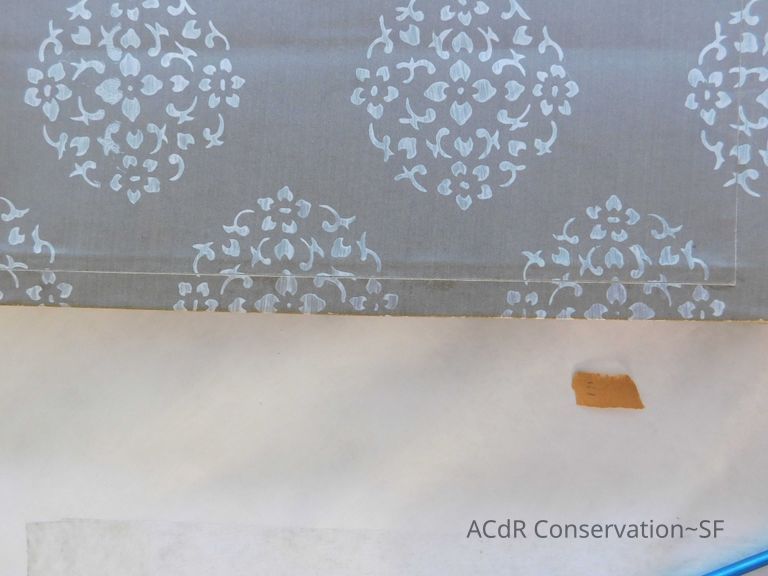

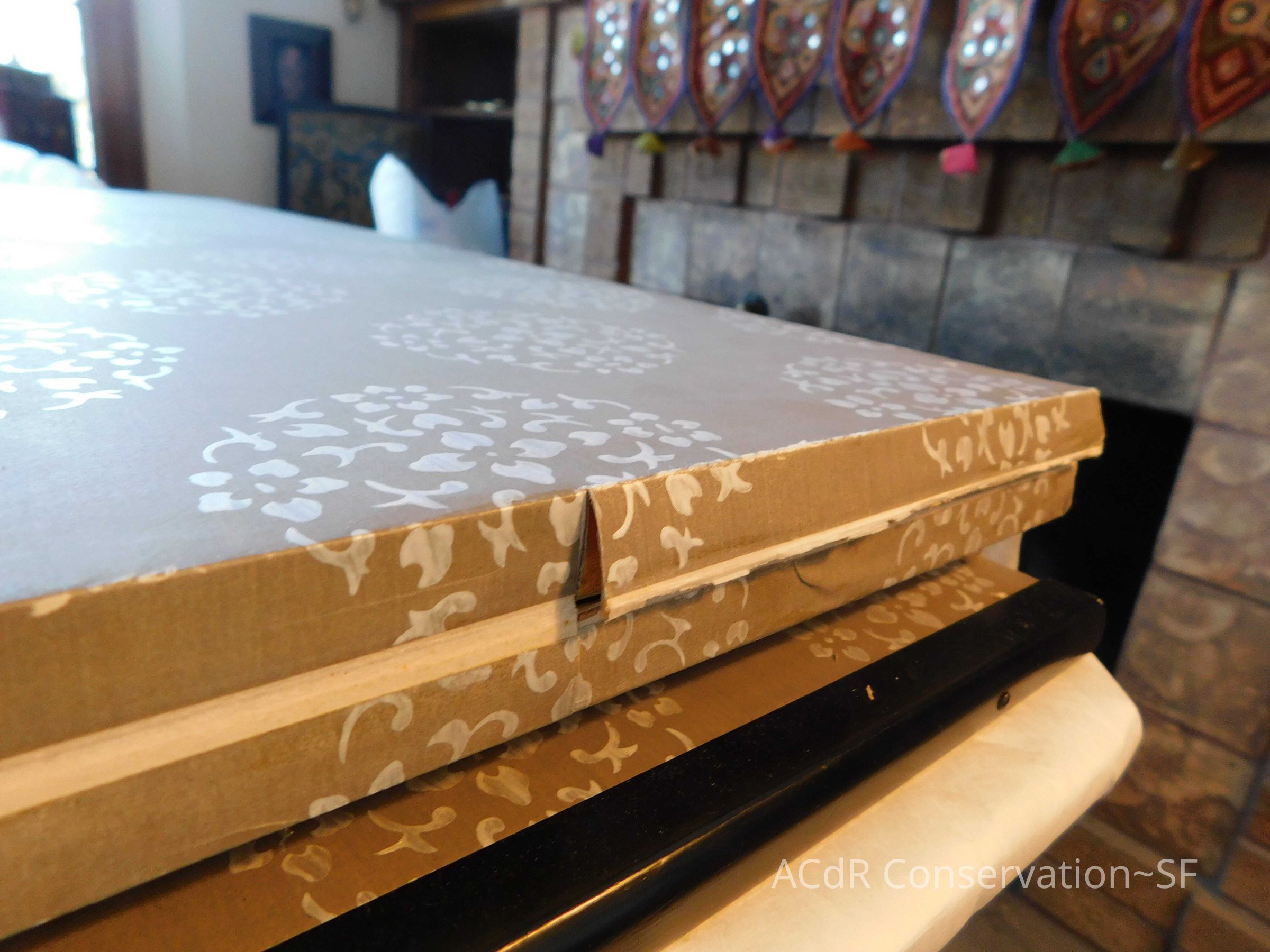

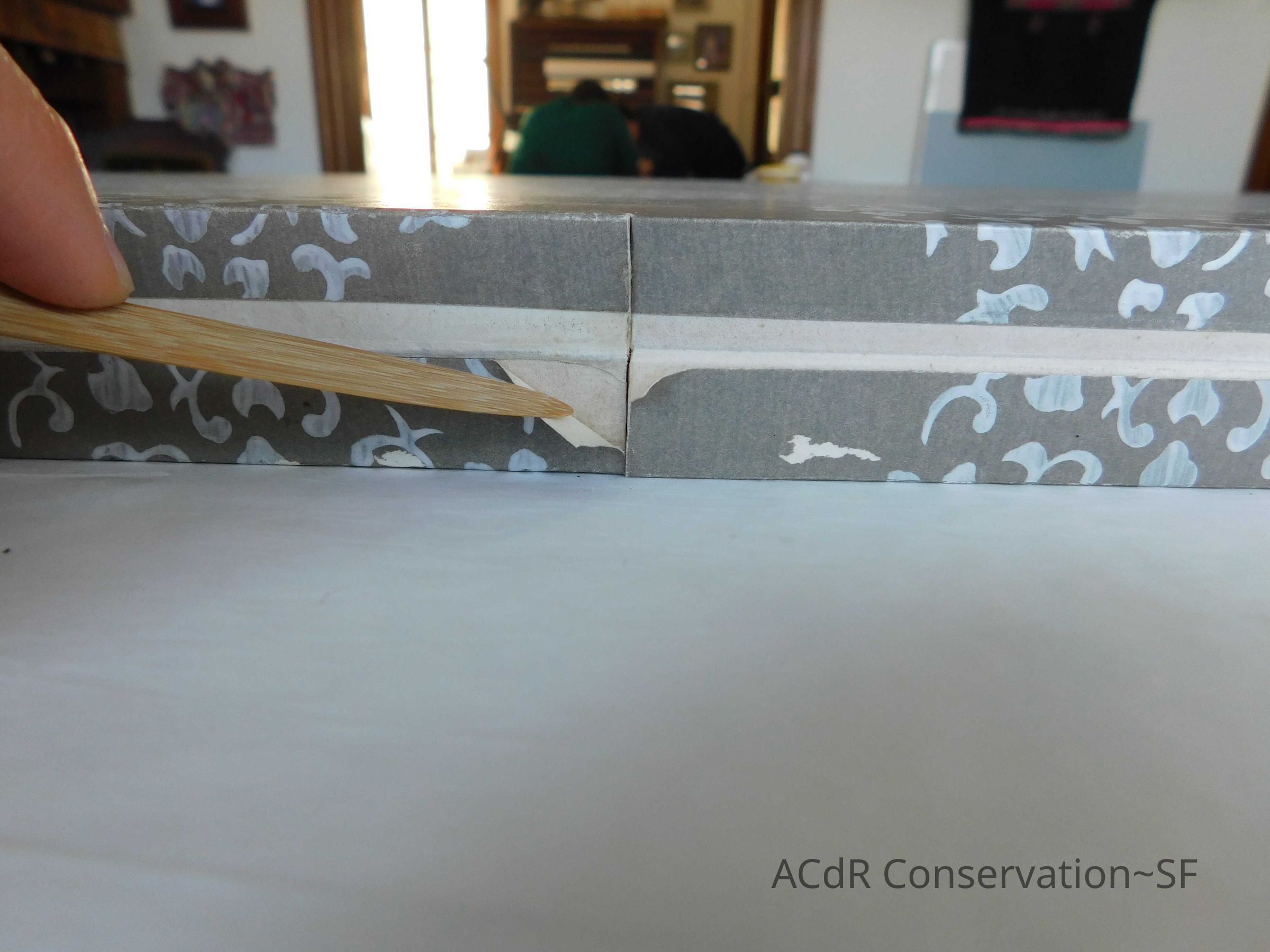

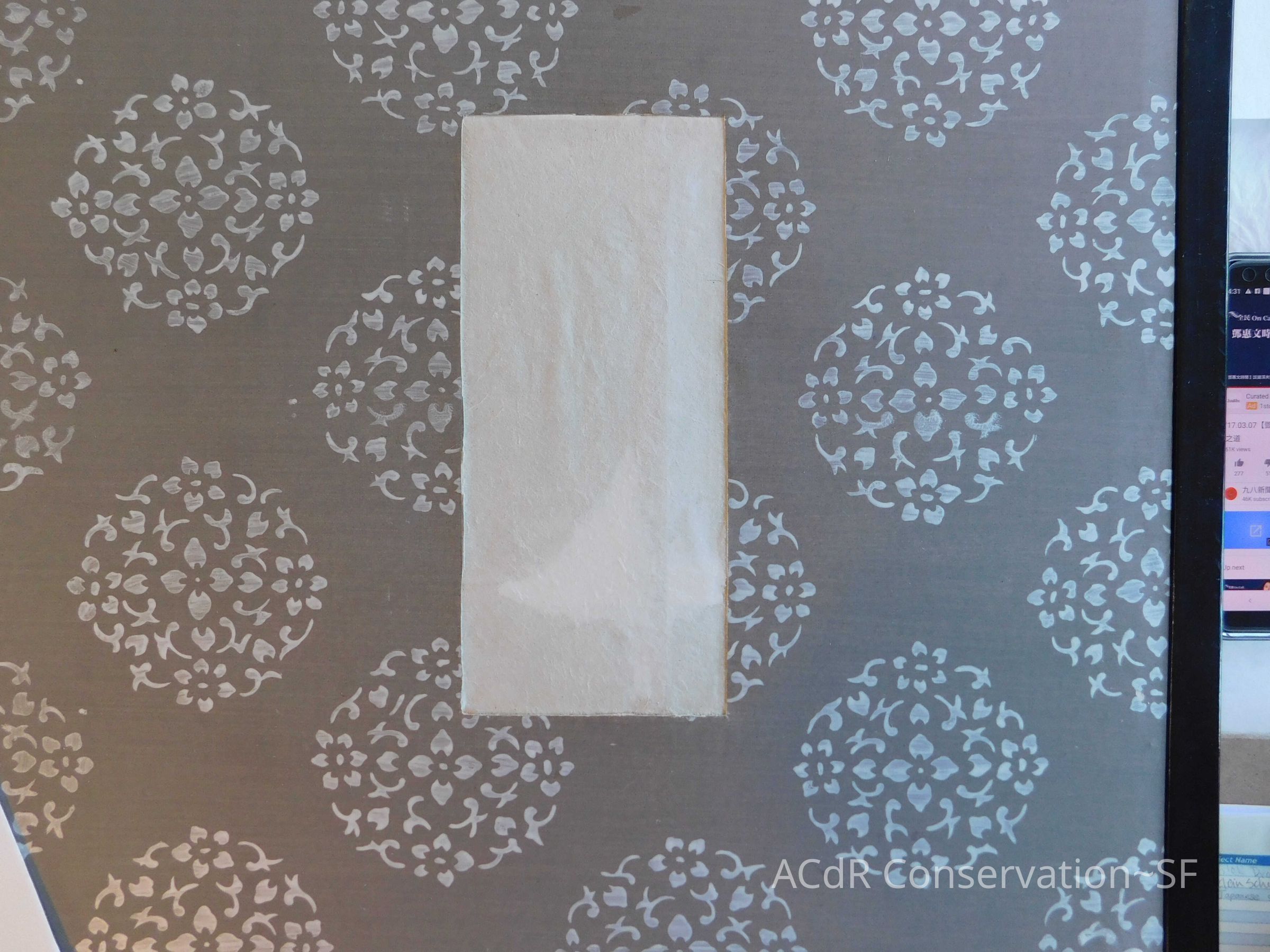

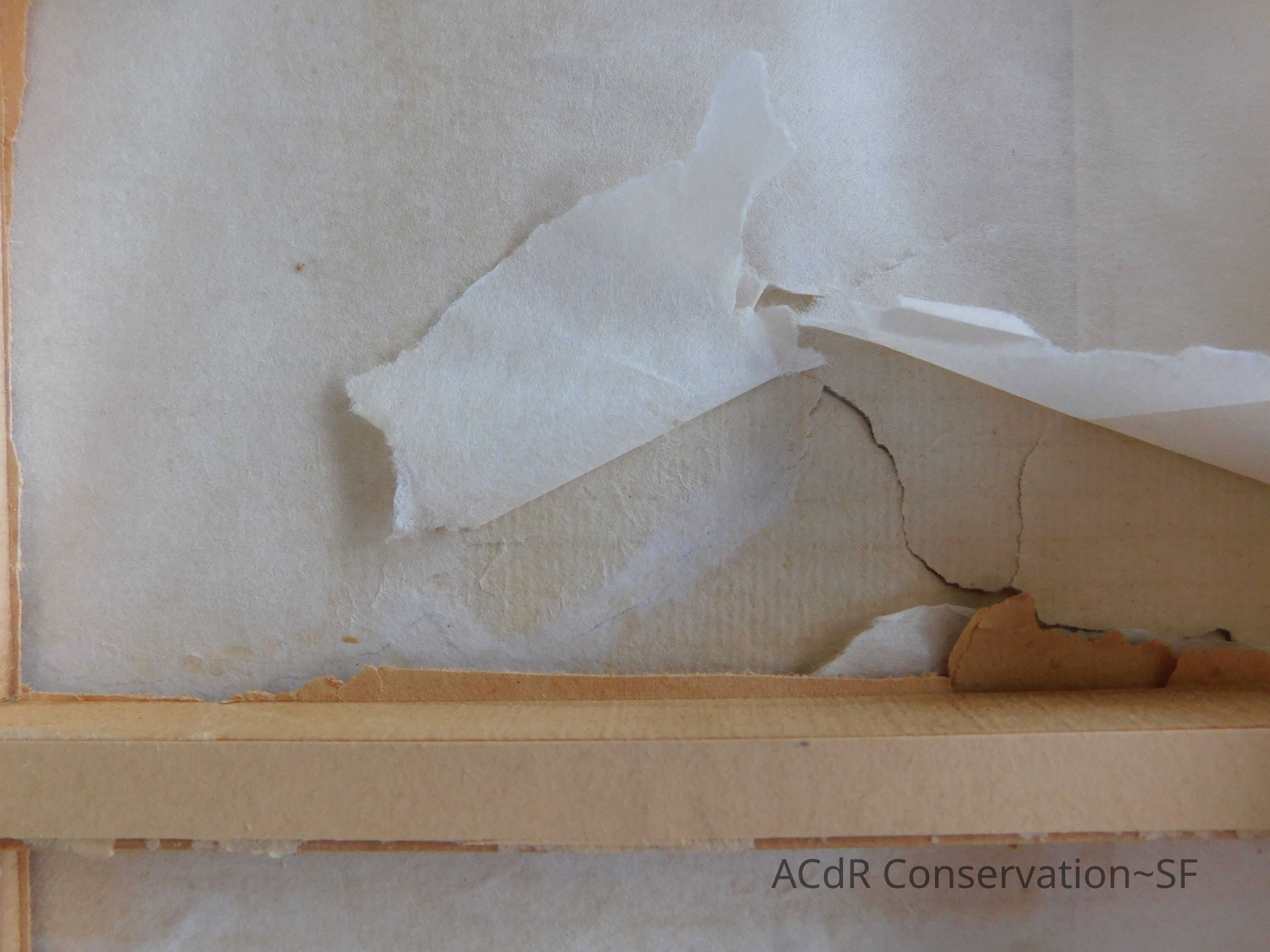

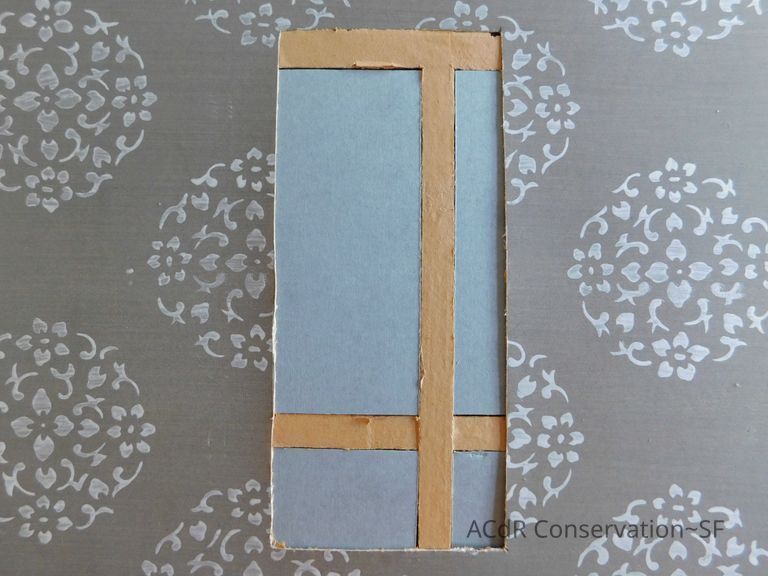

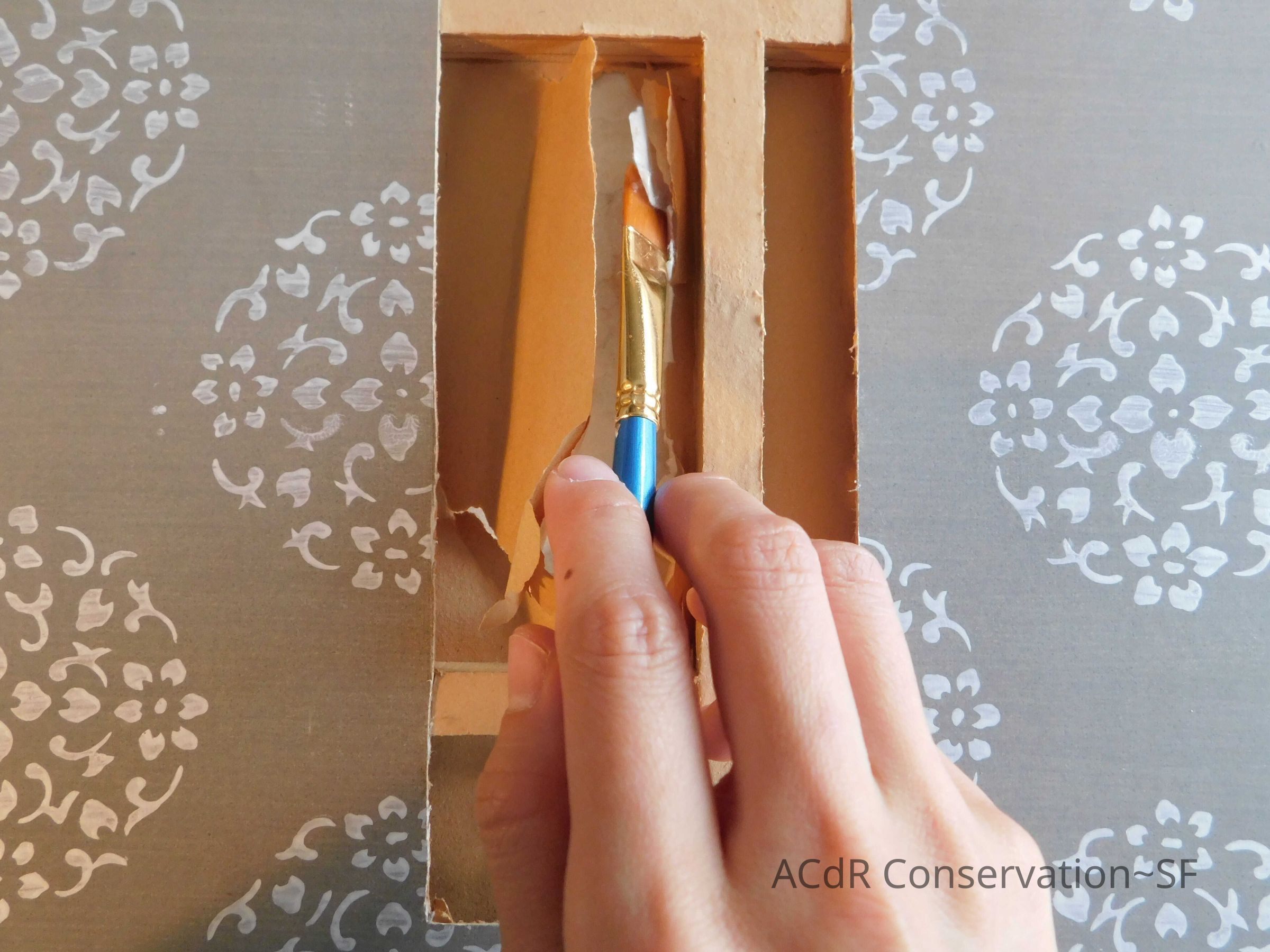

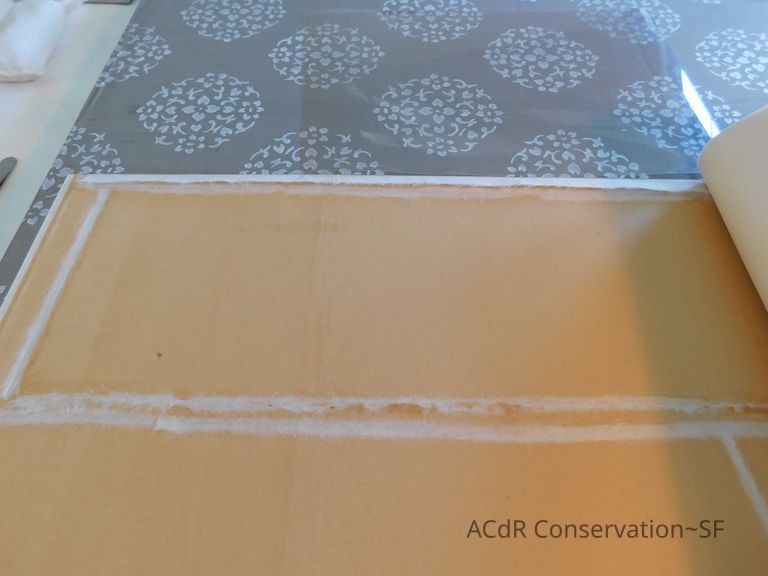

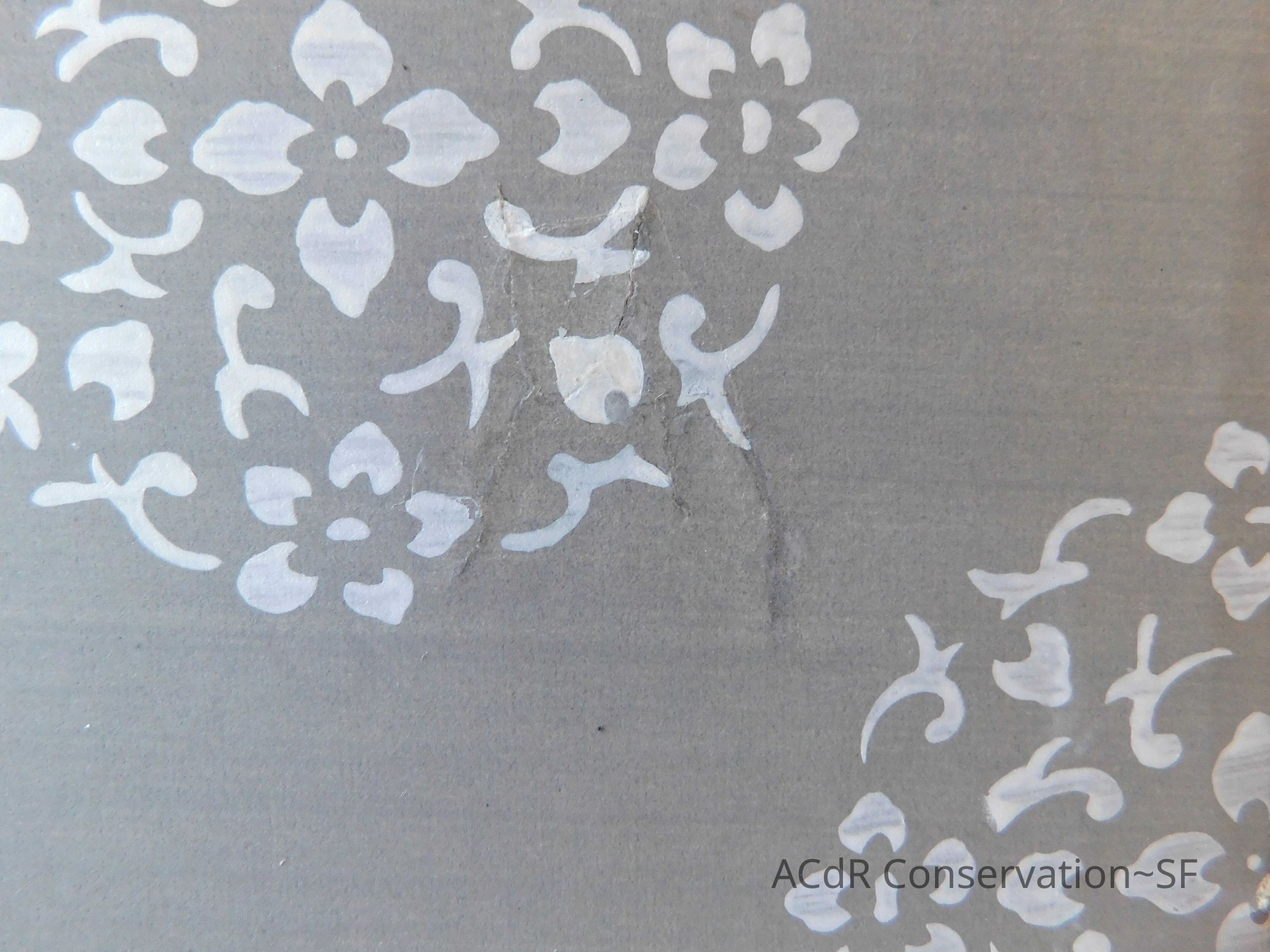

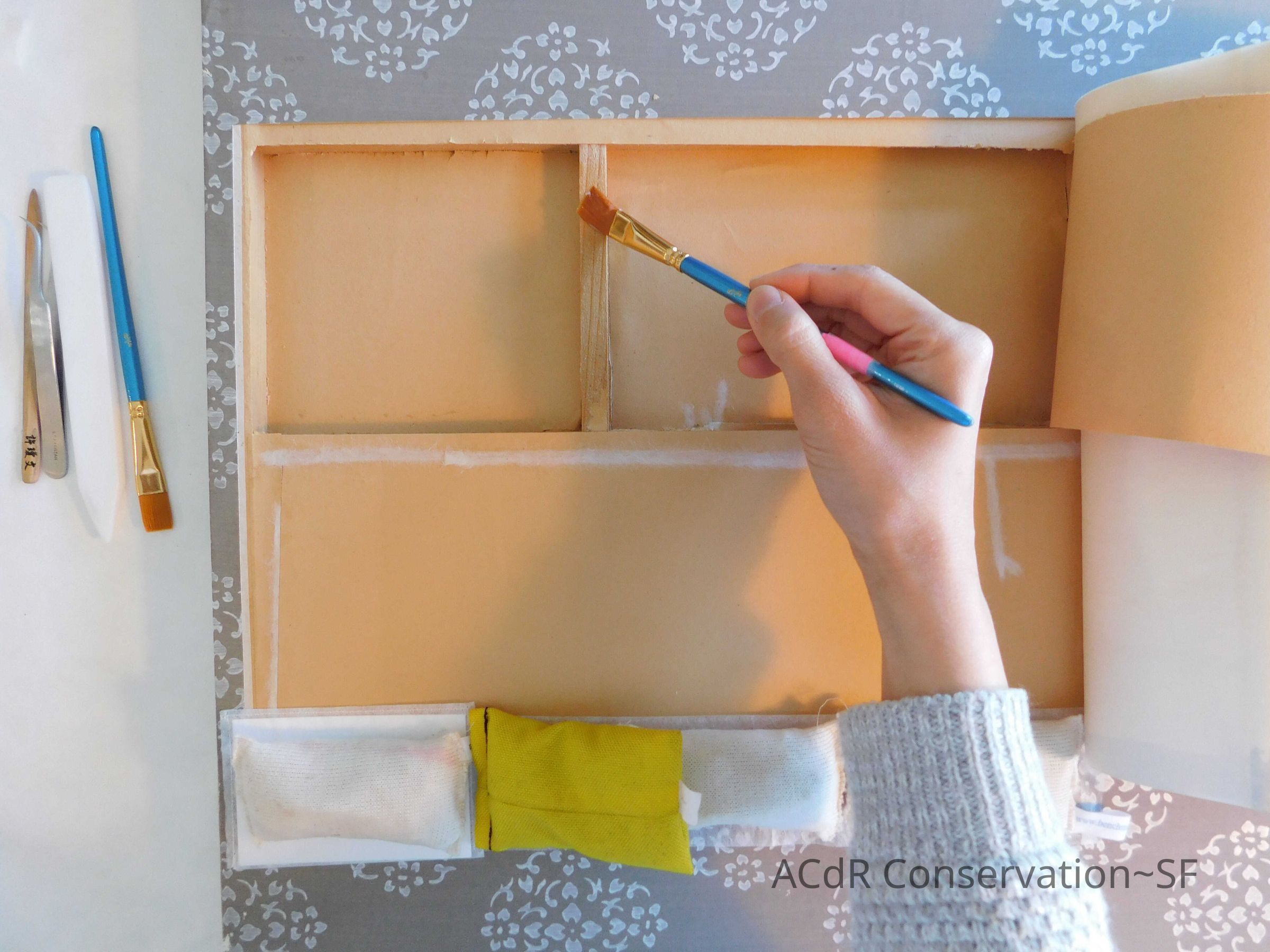

Closed the cut on back of big puncture using Japanese paper strips as hinges on the side. Mended tears with Japanese strips and starch paste. Attached yellow paper to wood frame. Mended cut edges with paper strips for stabilization. Attached gray pattern paper to Japanese paper hinge.

Retouching

Apr 26, 2019 - Apr 29, 2019

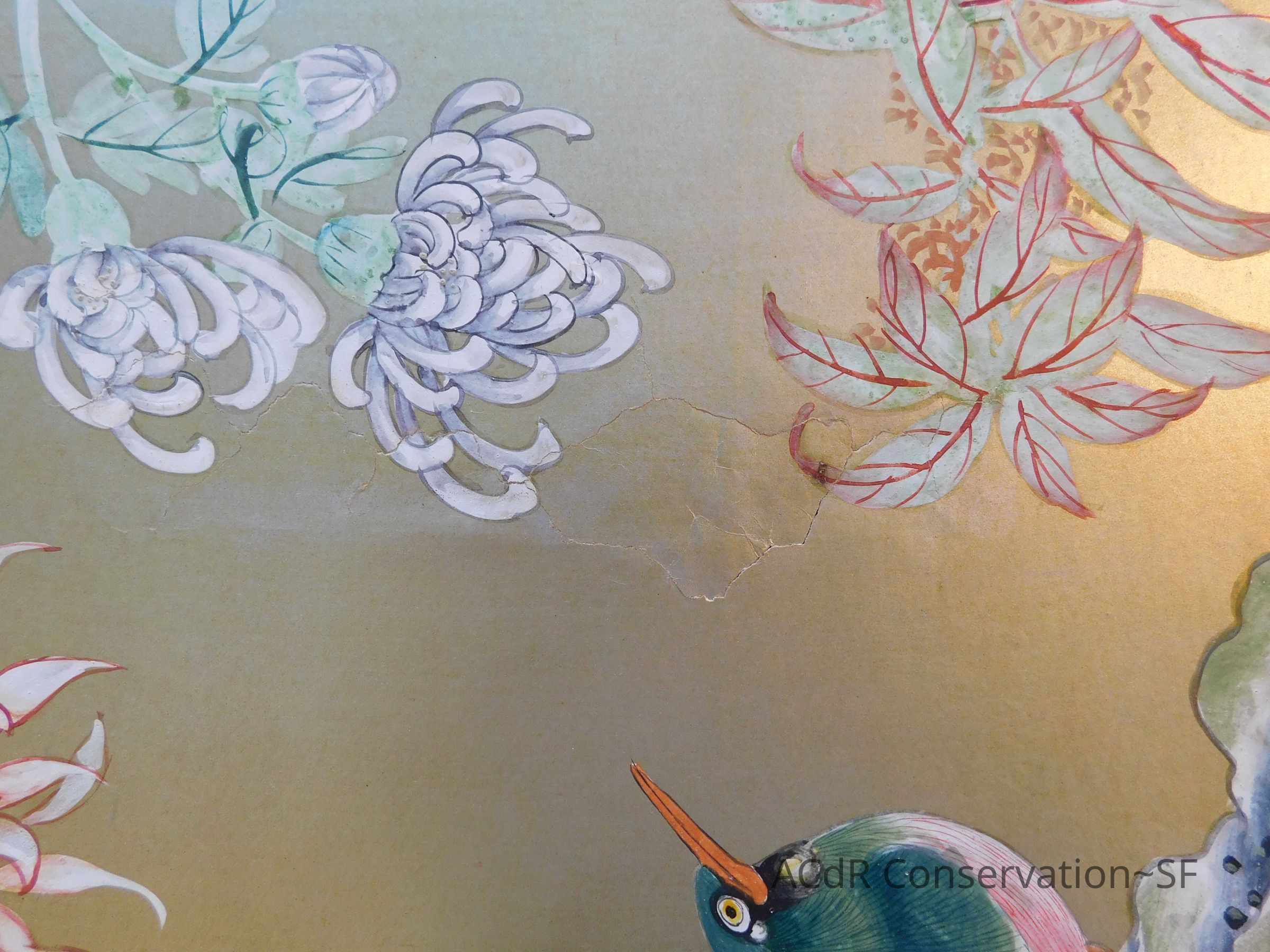

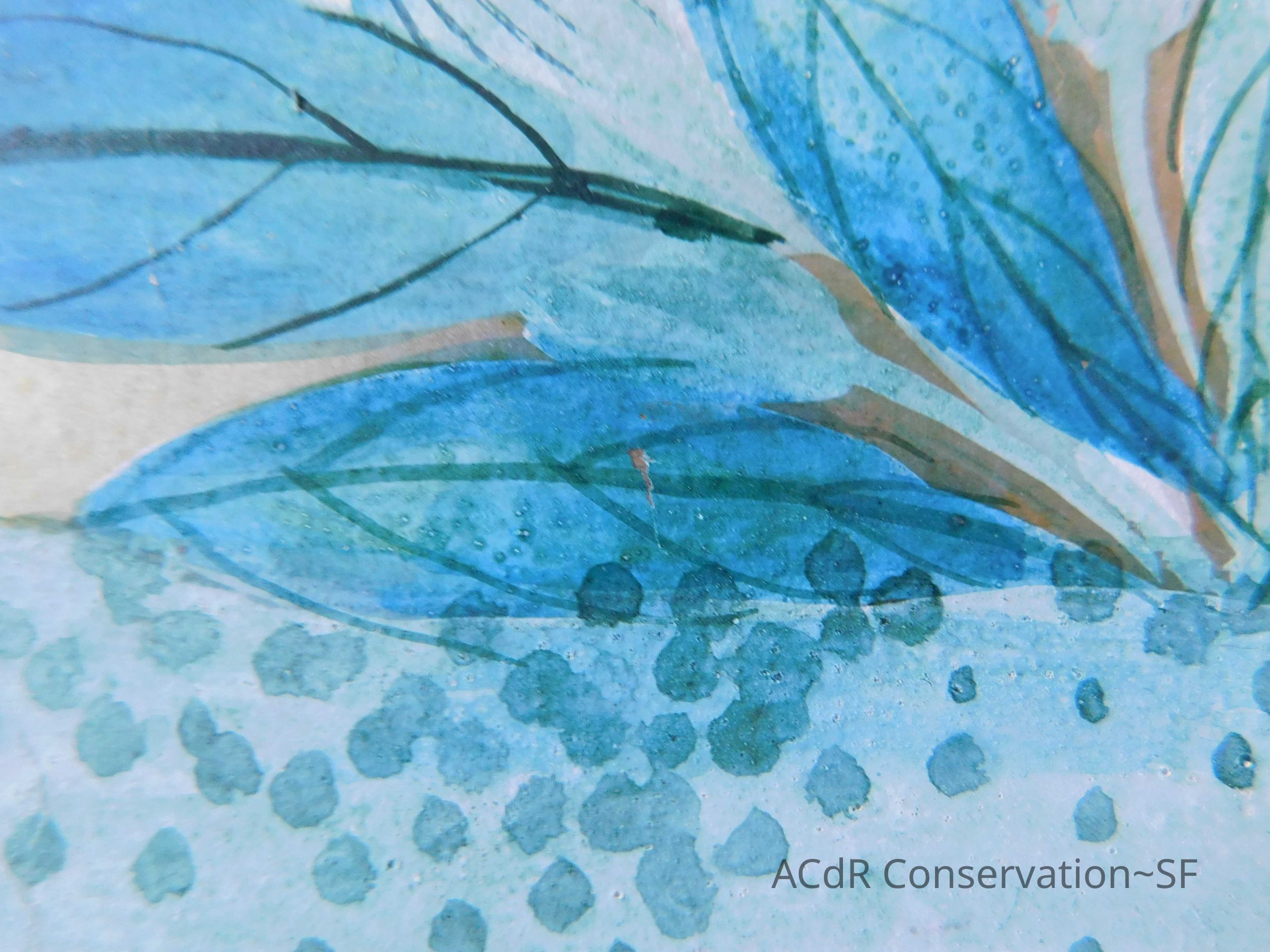

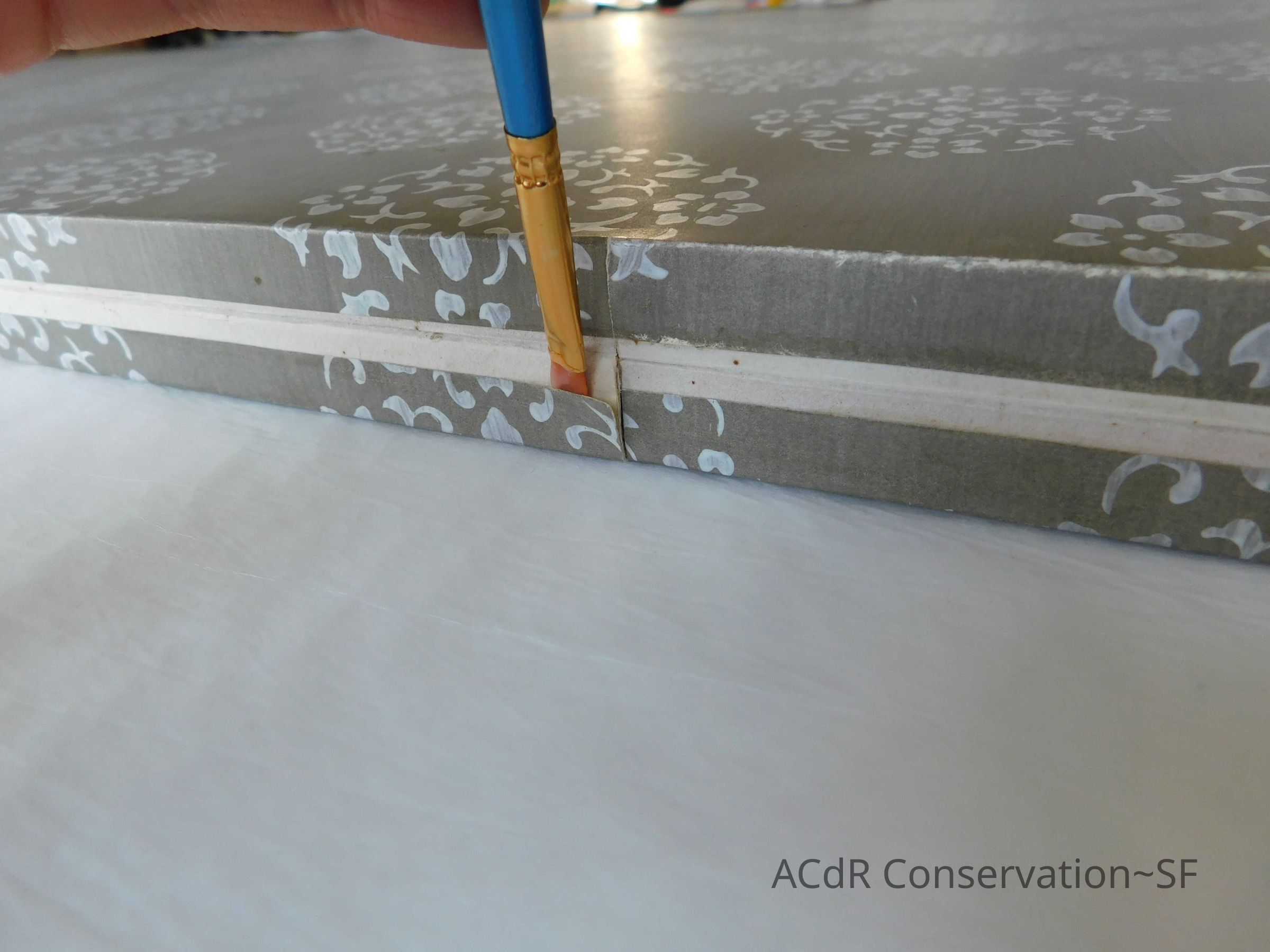

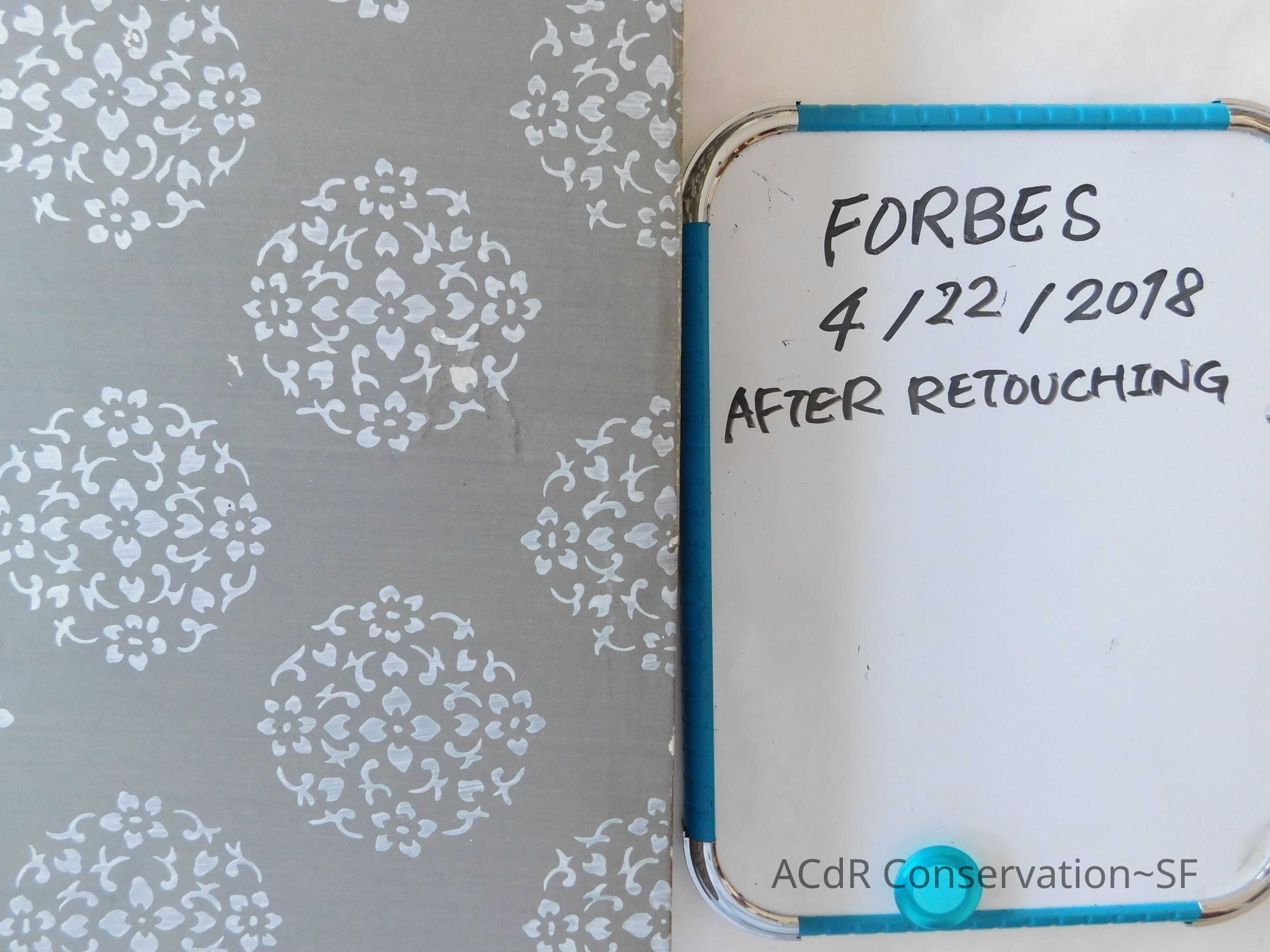

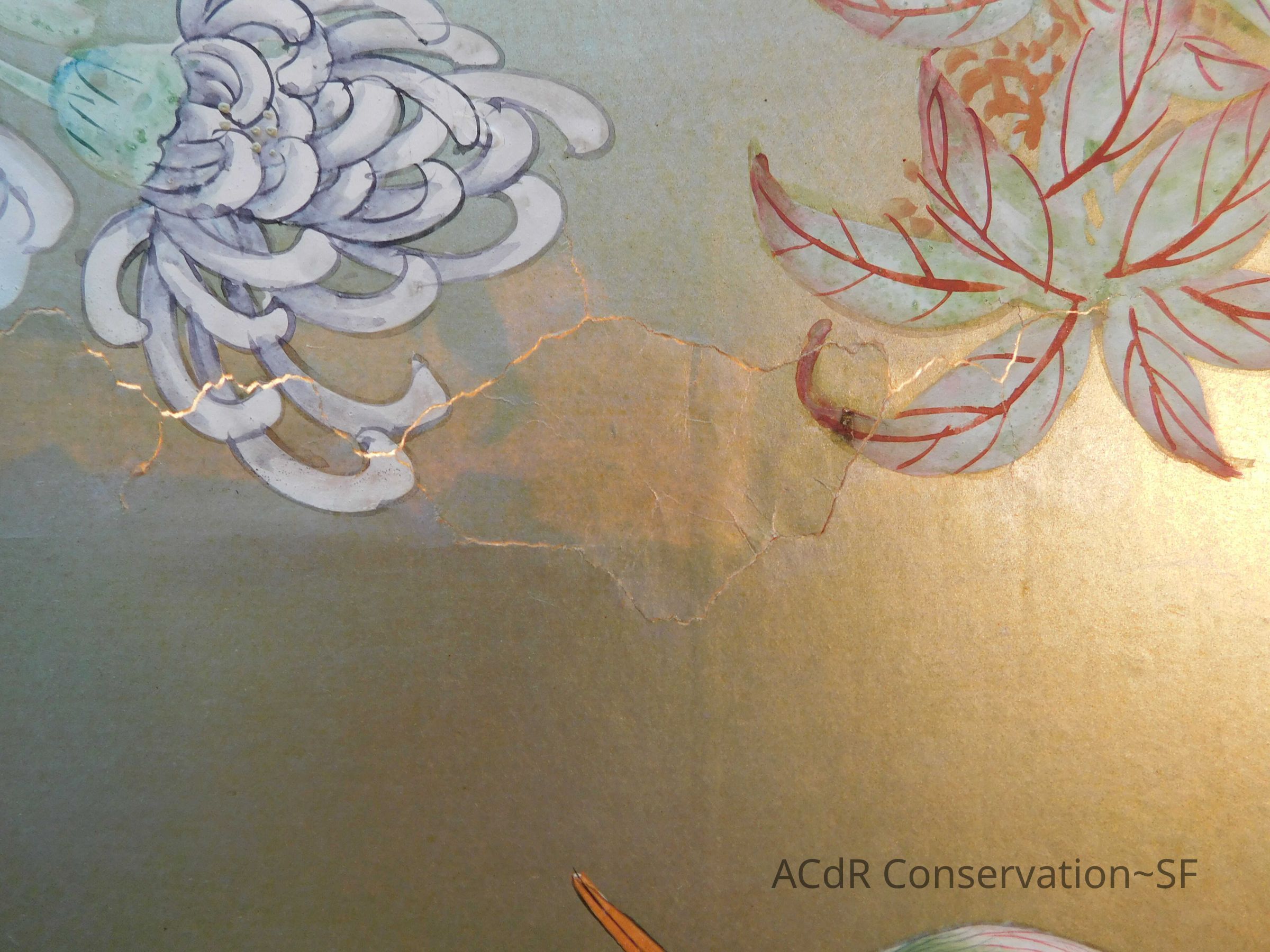

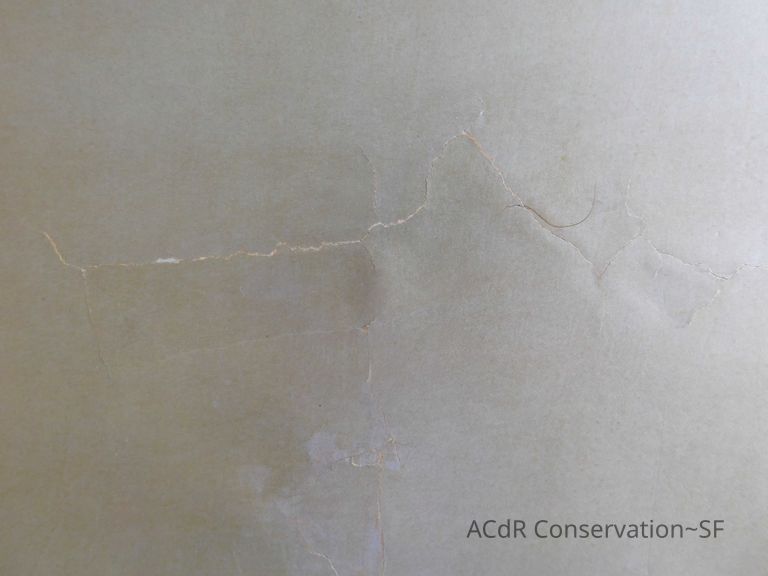

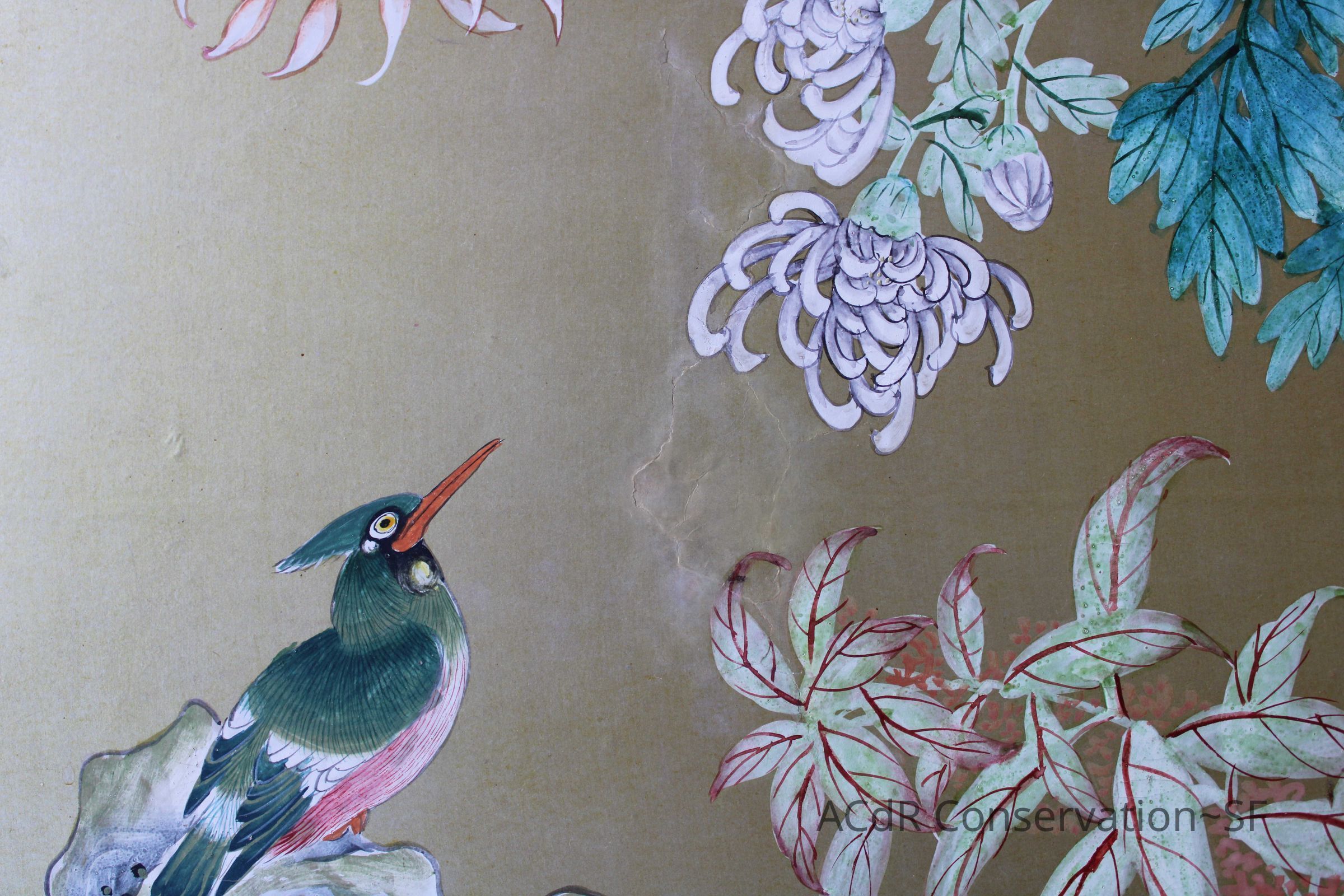

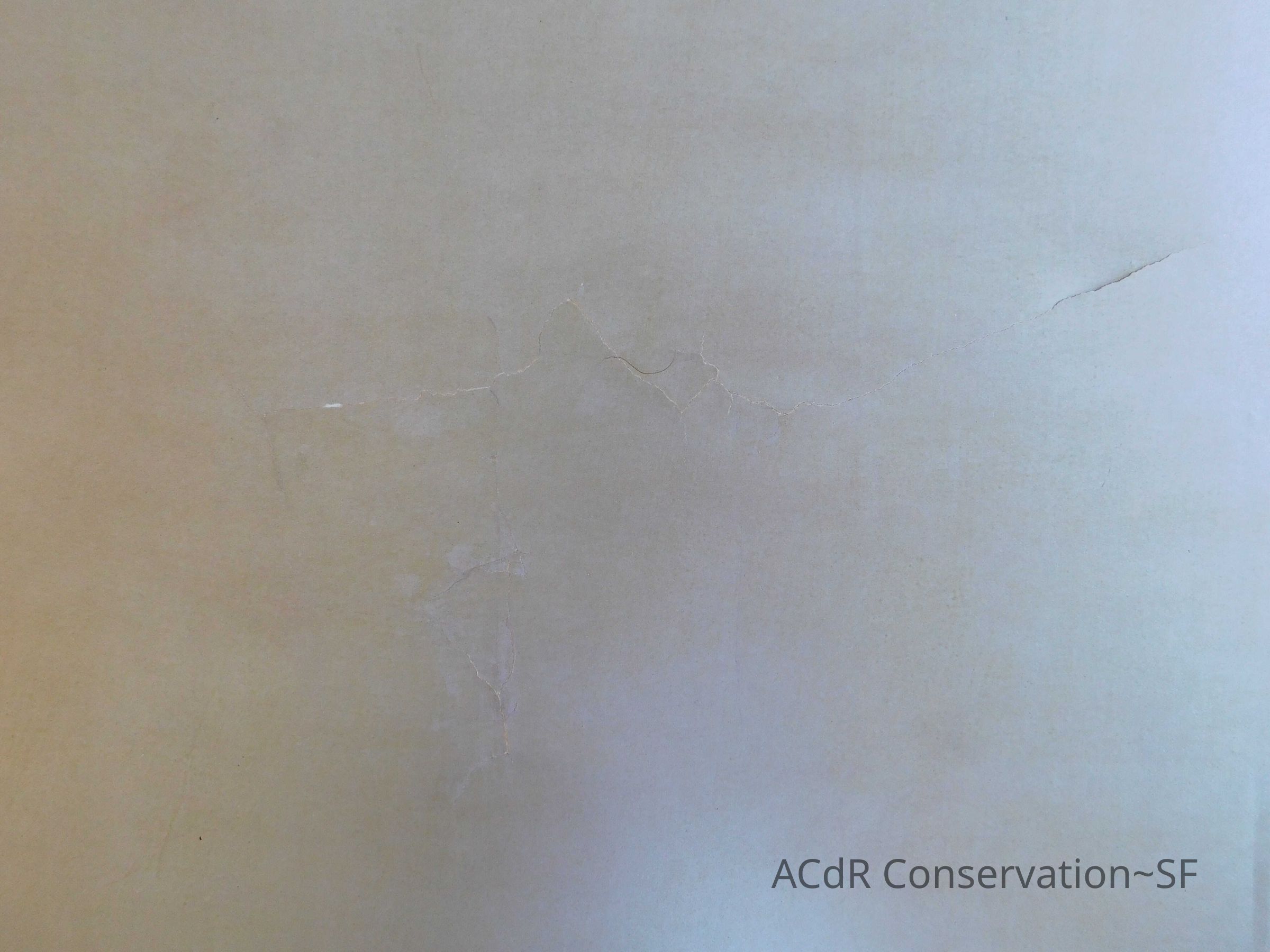

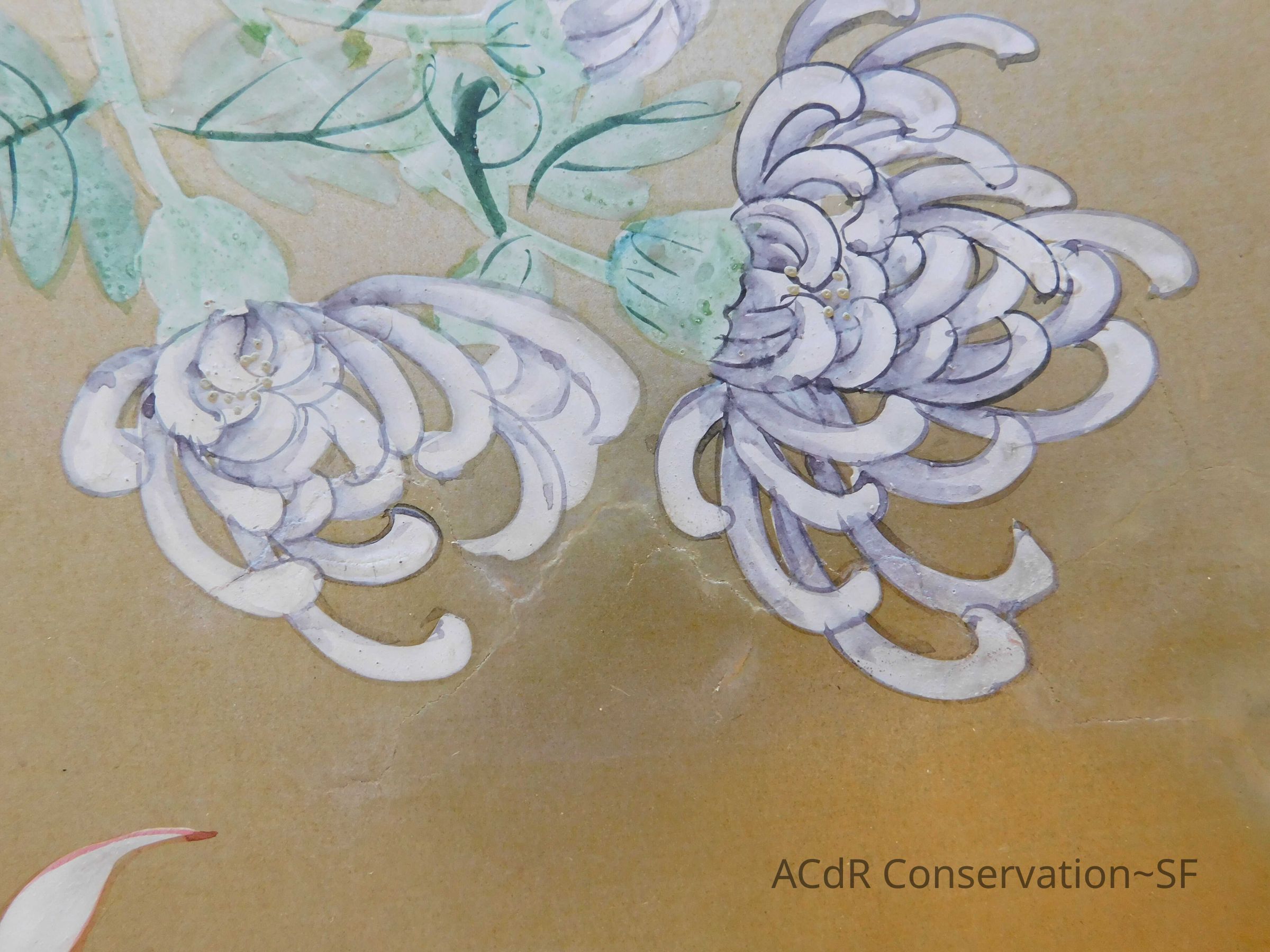

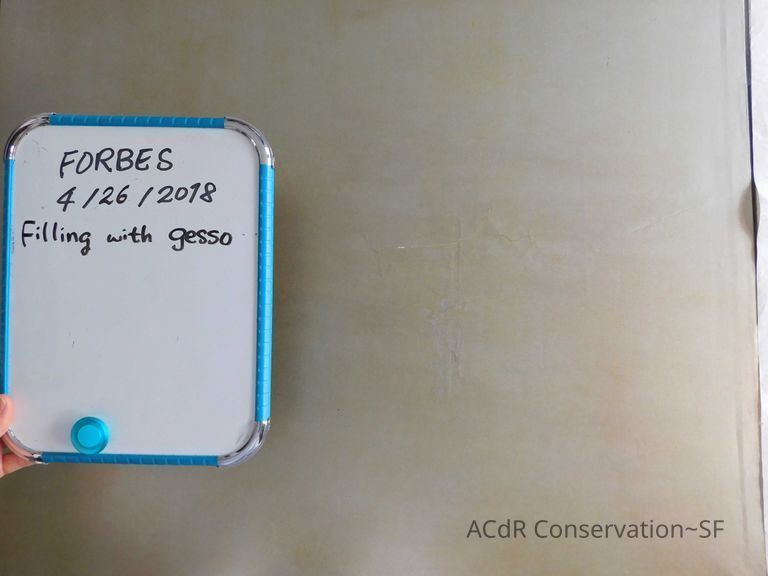

Retouched front side of large puncture, applied clear gesso in the tear gaps to make the surface level. Retouched tears with metallic watercolor. Retouched details on bottom of screen near flaking hinge.

Adhesive Repair/Removal

Apr 29, 2019 - May 1, 2019

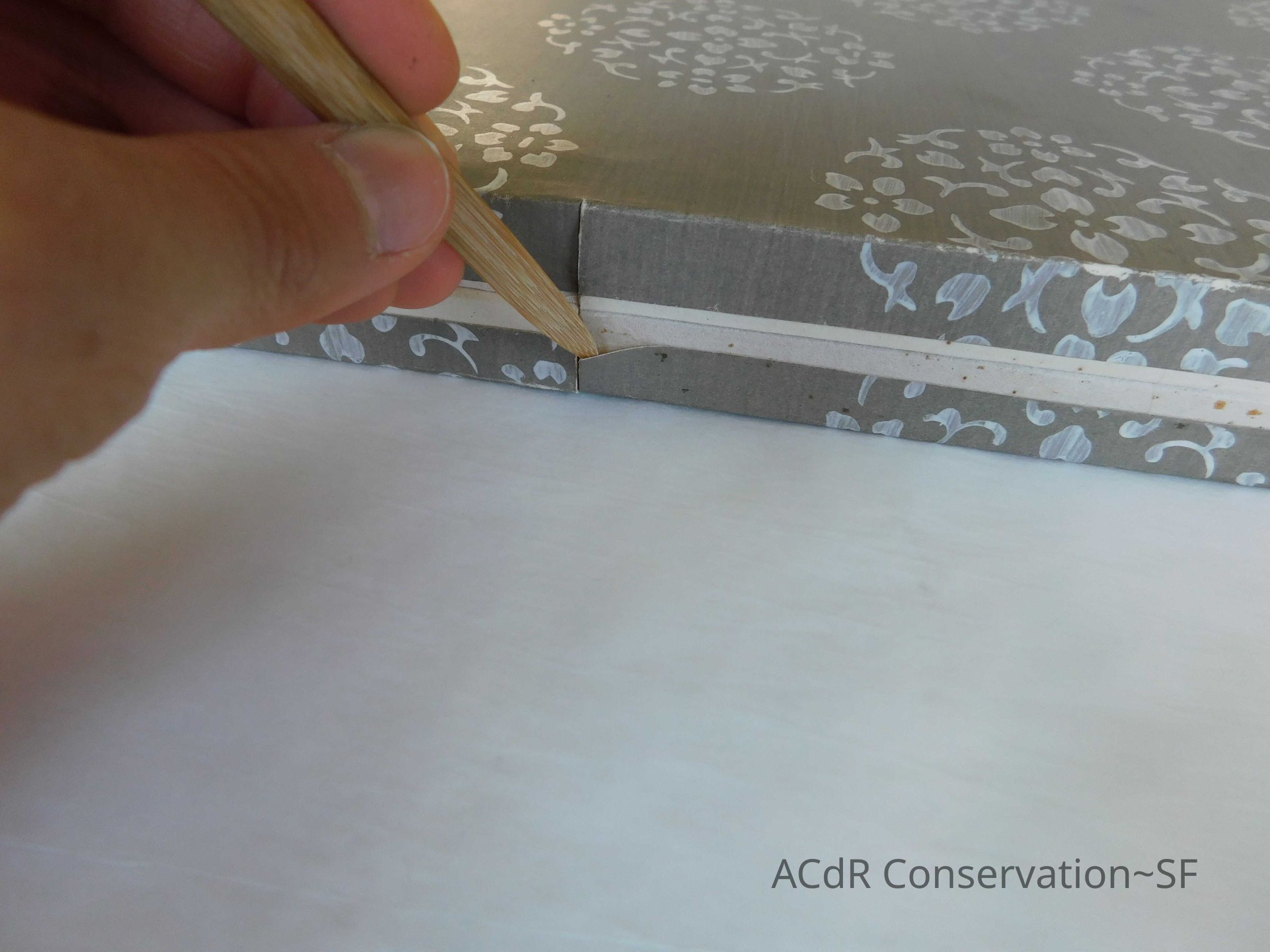

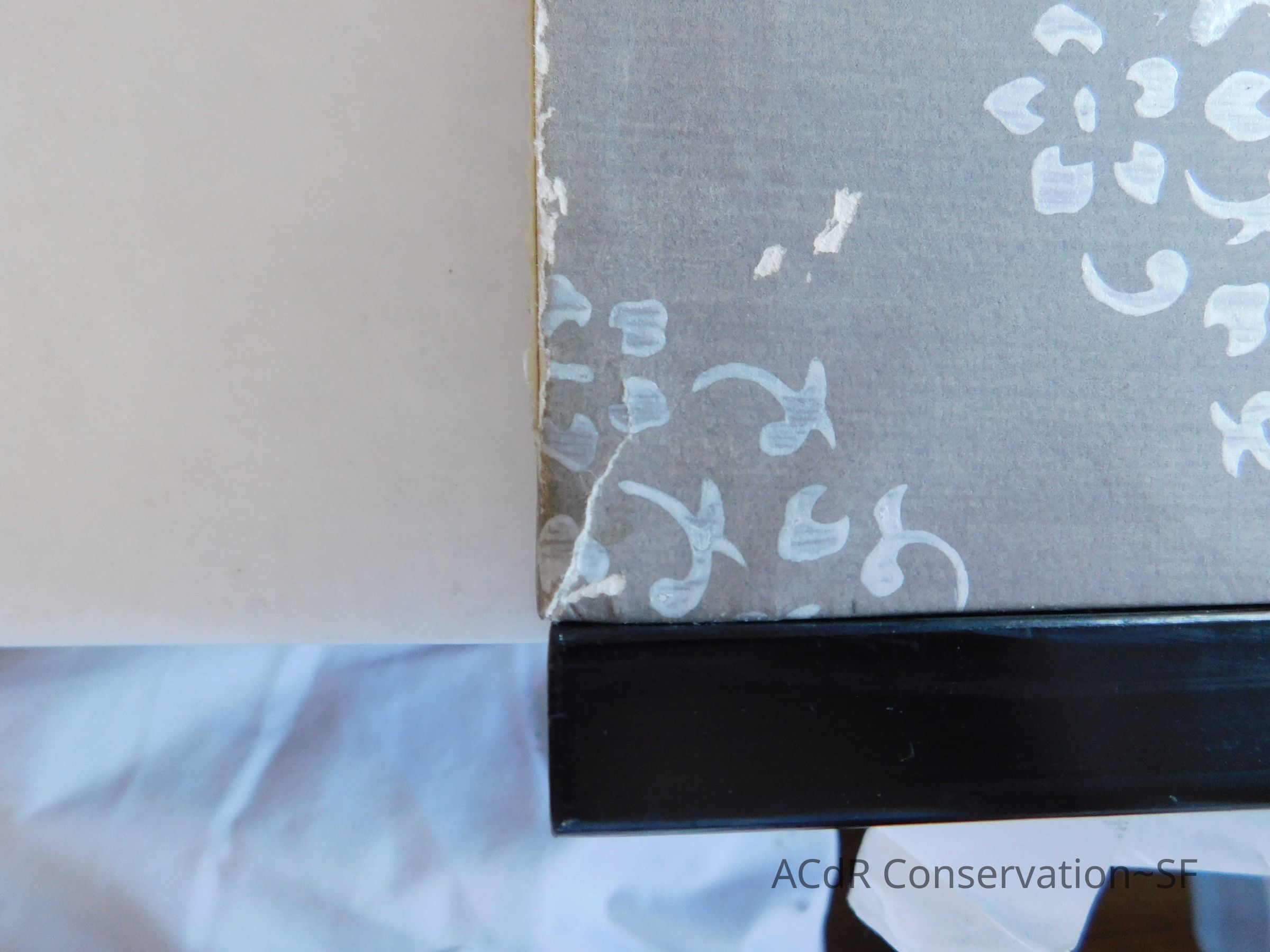

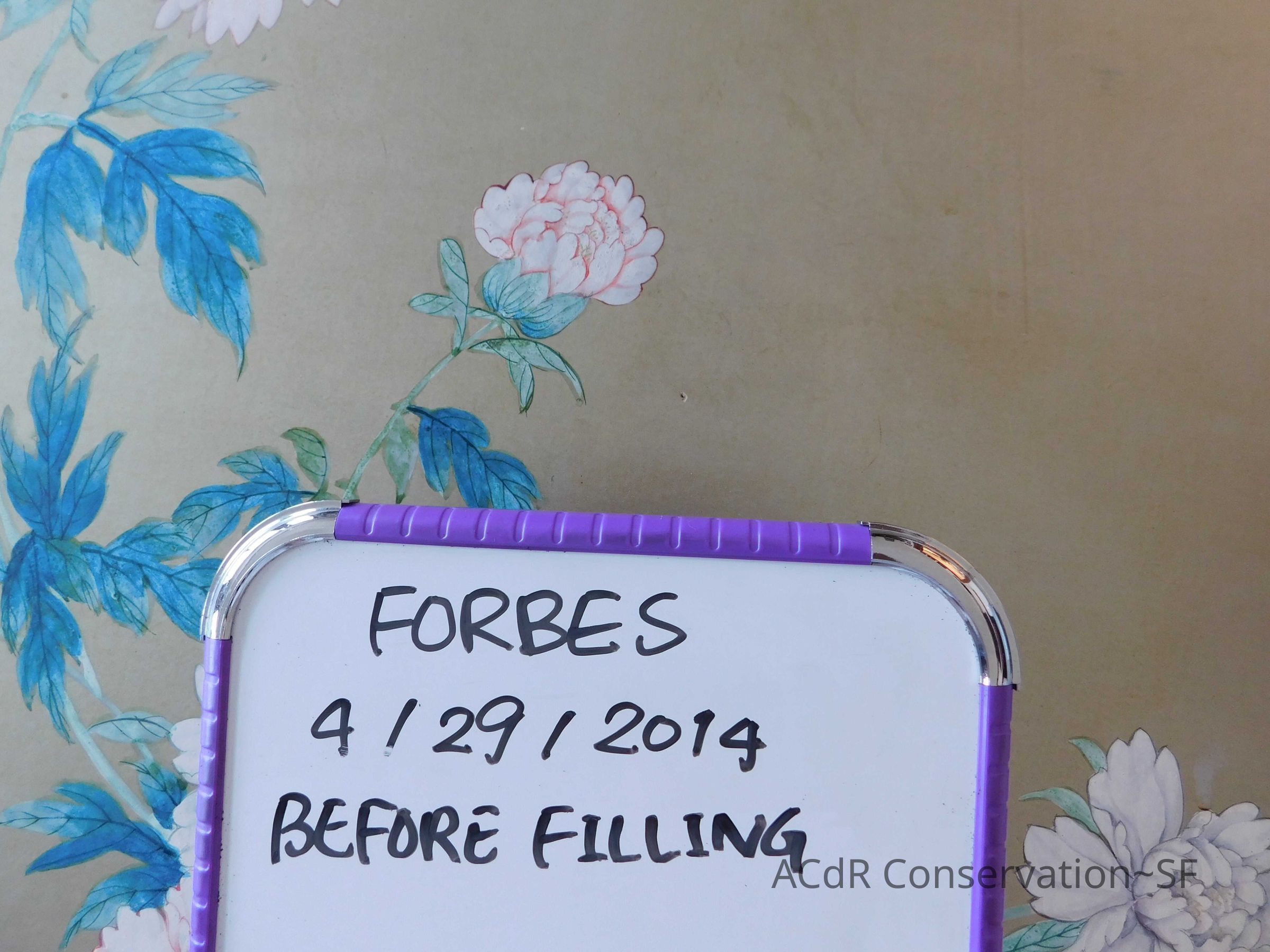

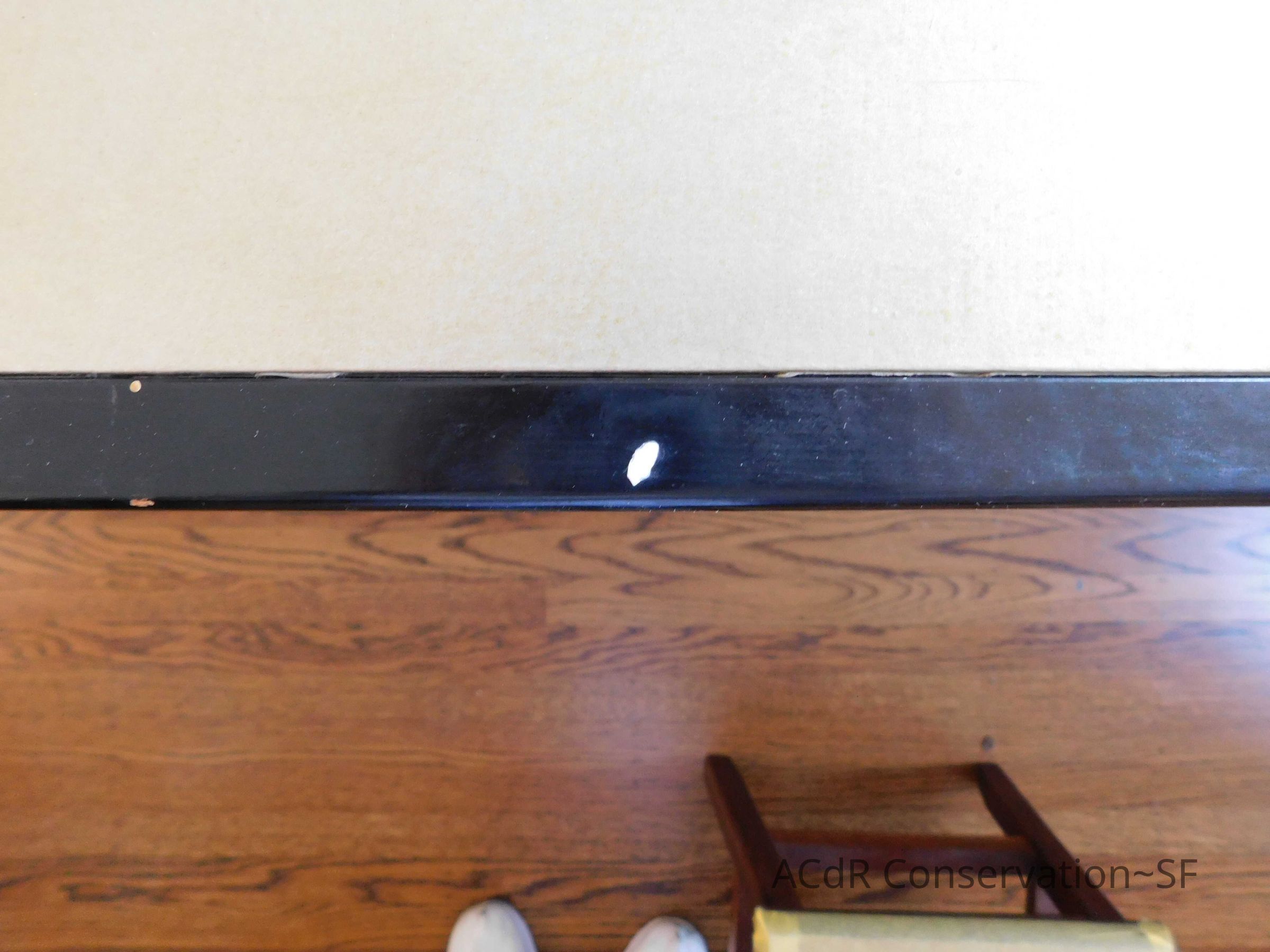

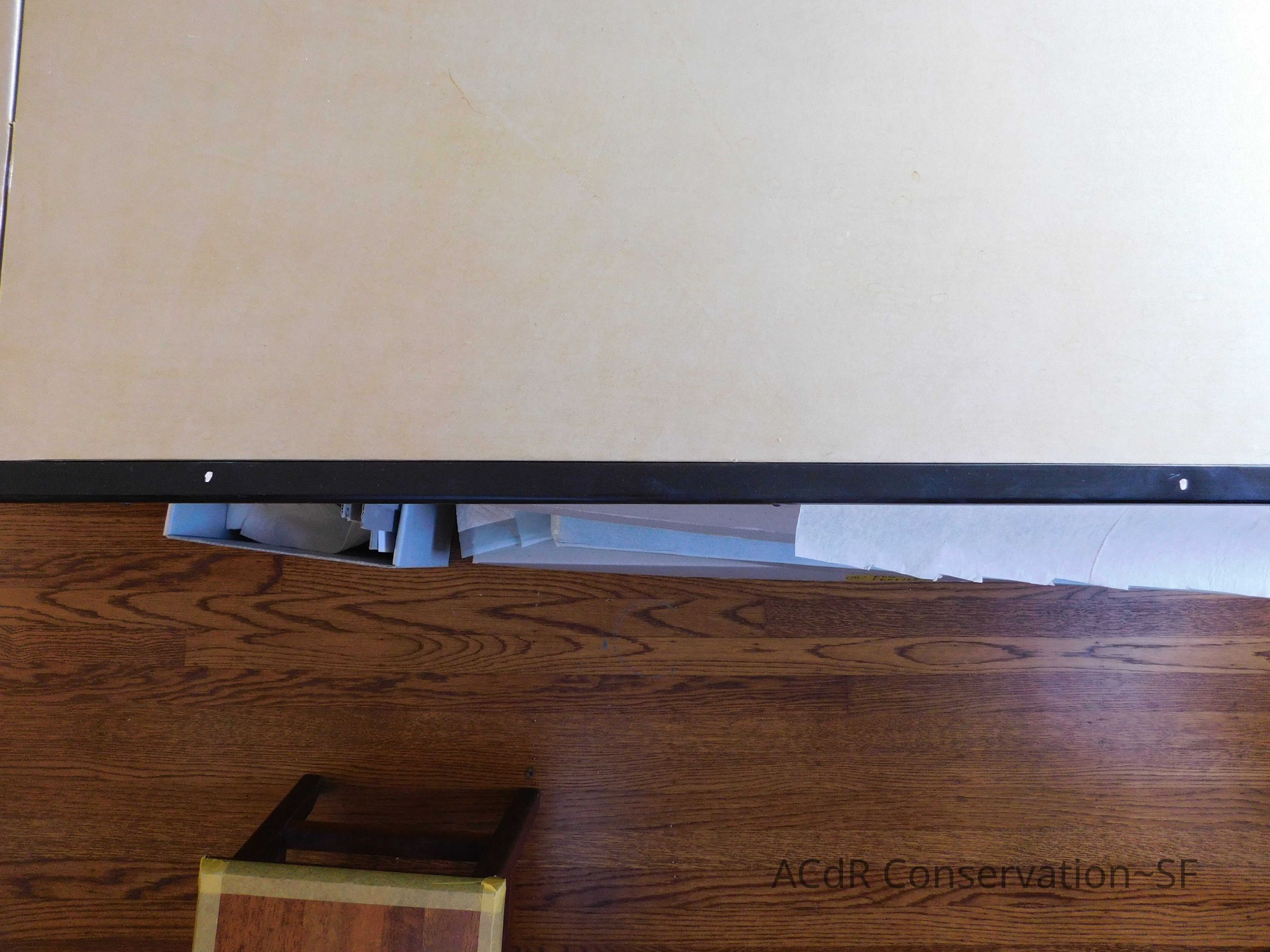

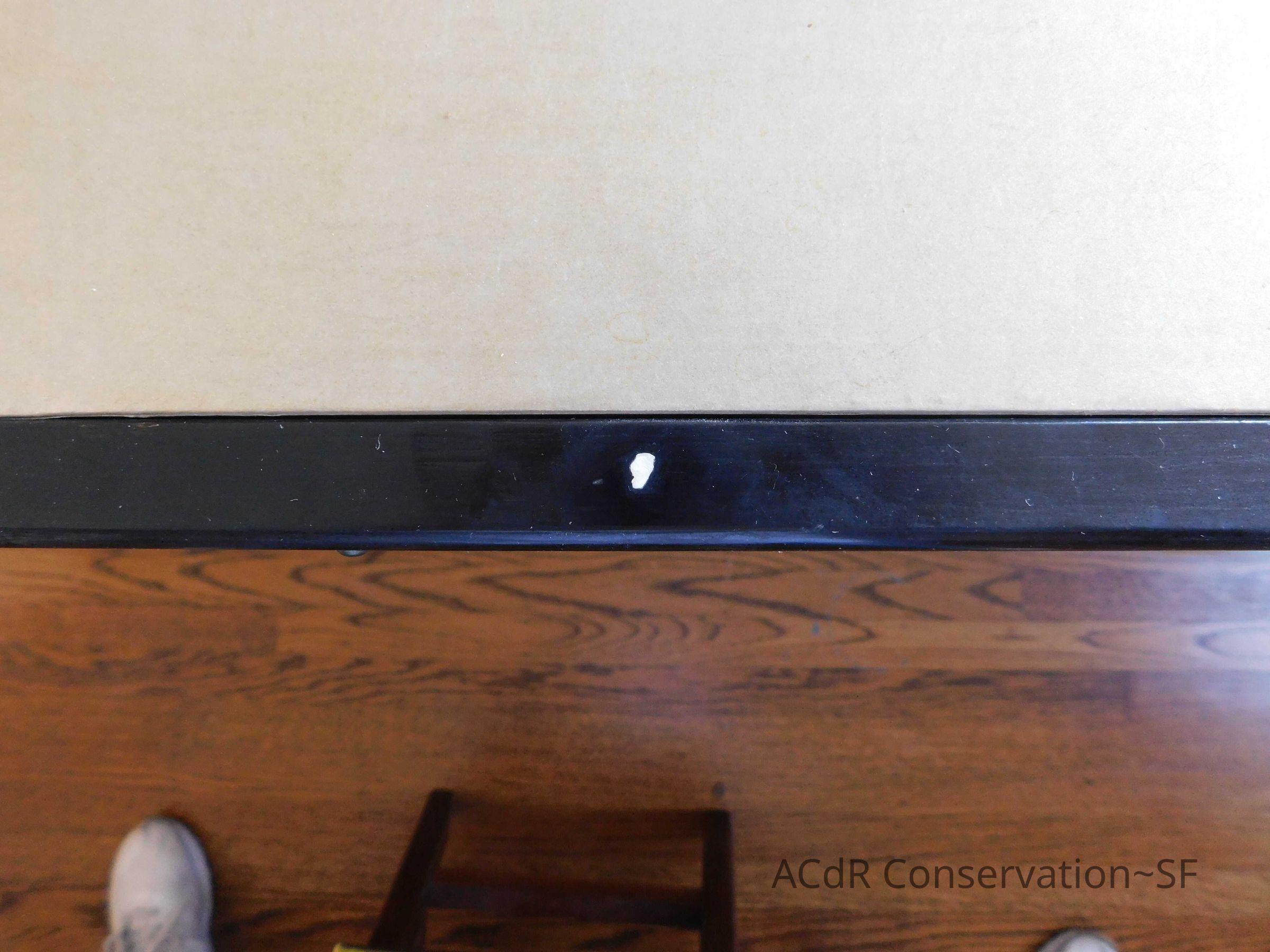

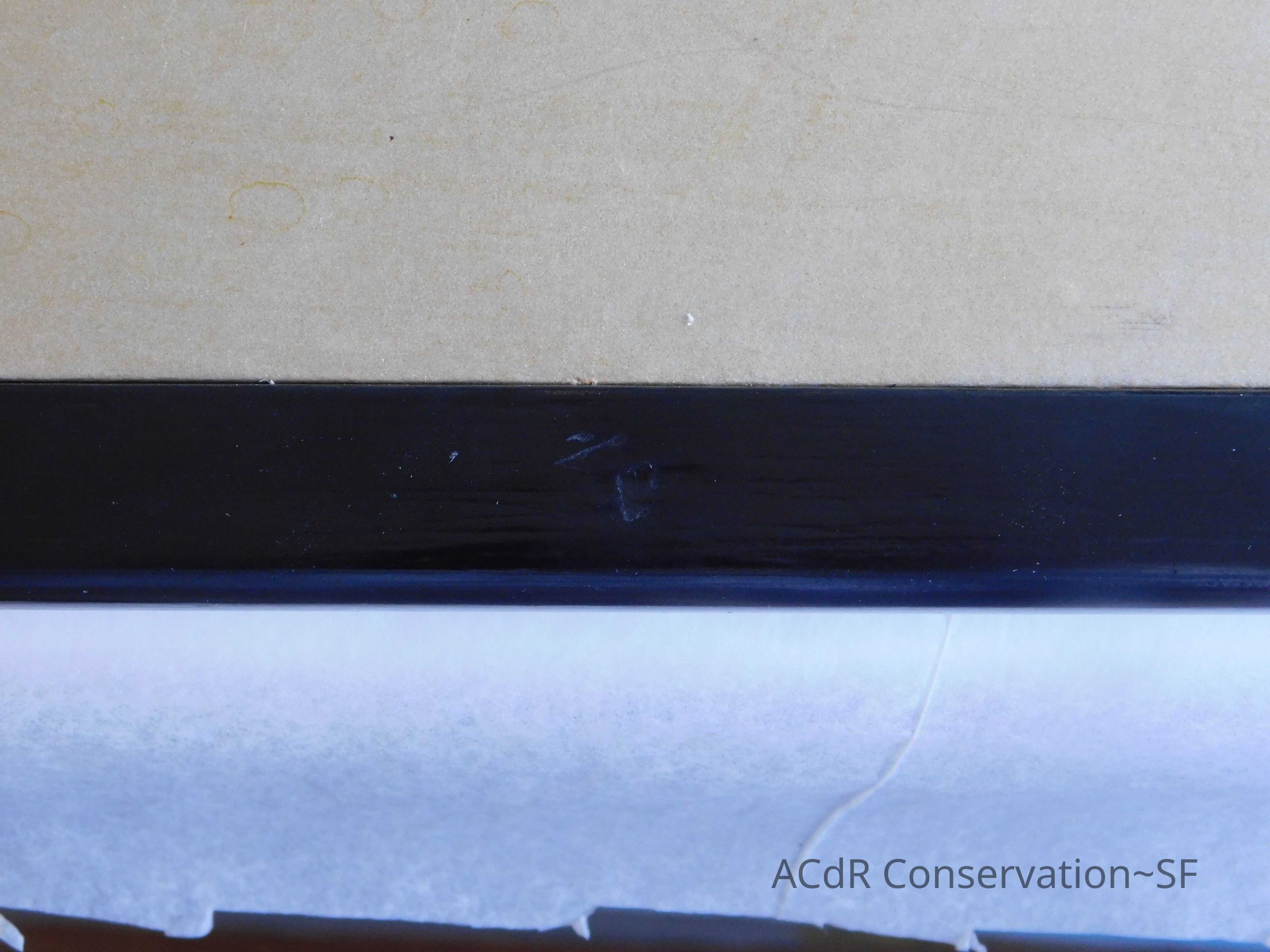

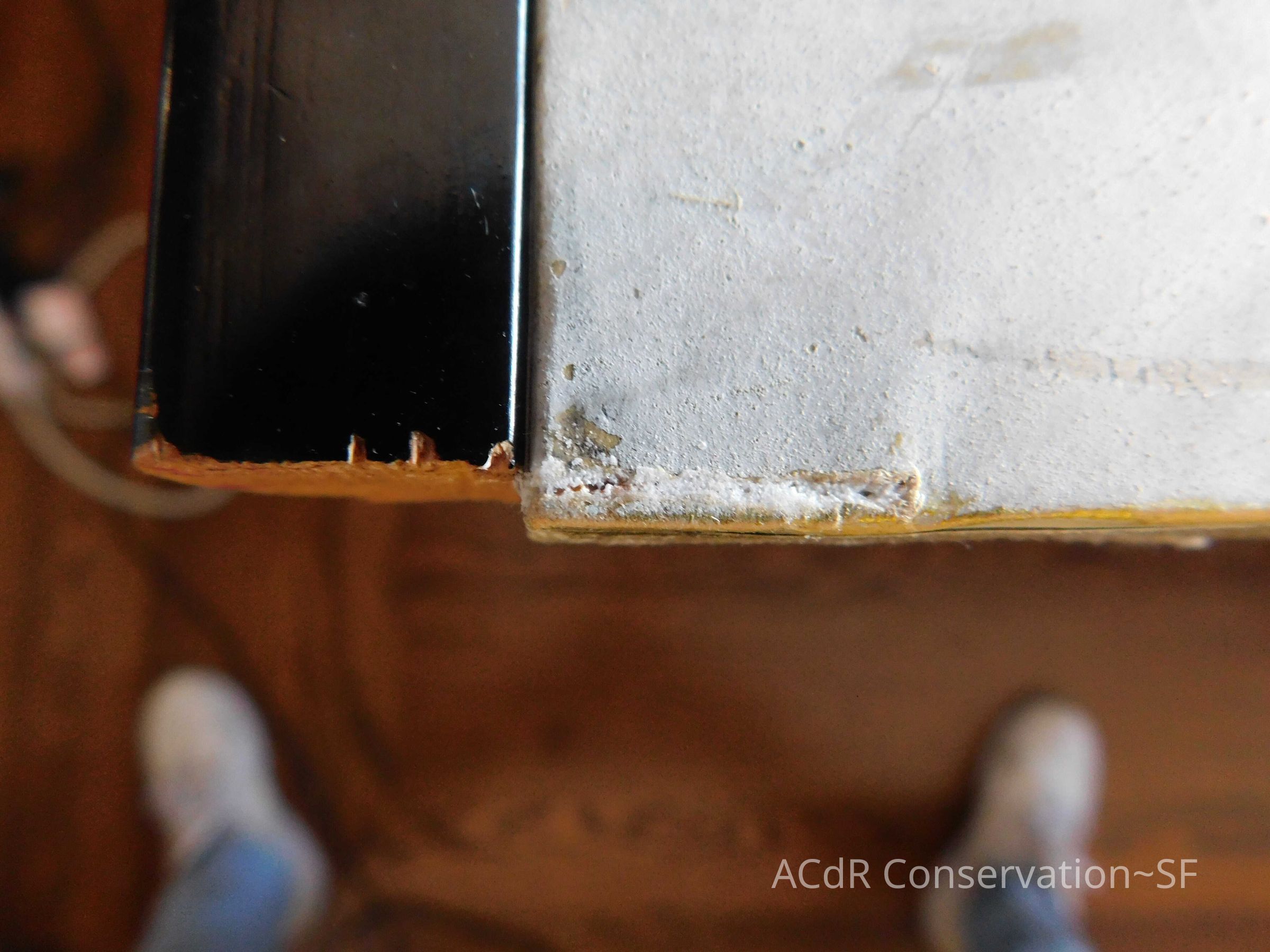

Filled holes on the black frame with modostuc. Took treatment pictures. Attached tears on the hinge from the back side. Filled holes with modostuc to level thesurface by rubbing it slightly. Mended tears on front side hinge.

Retouching

May 1, 2019 - May 7, 2019

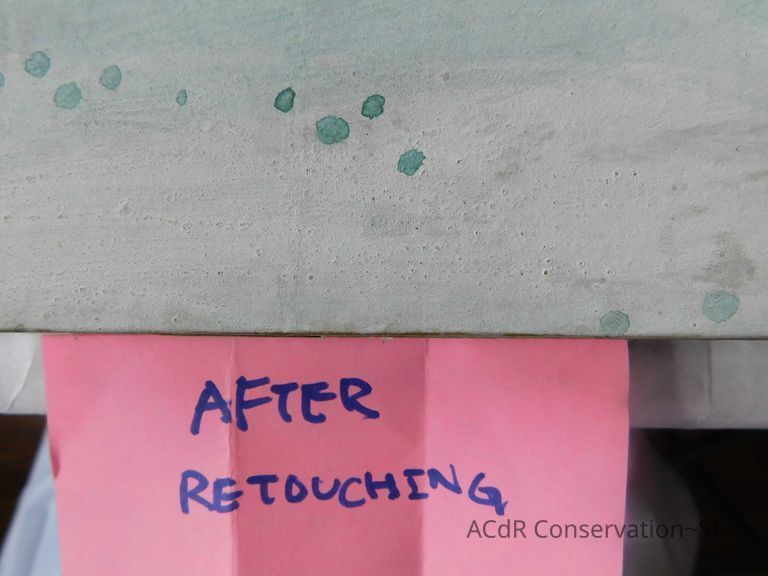

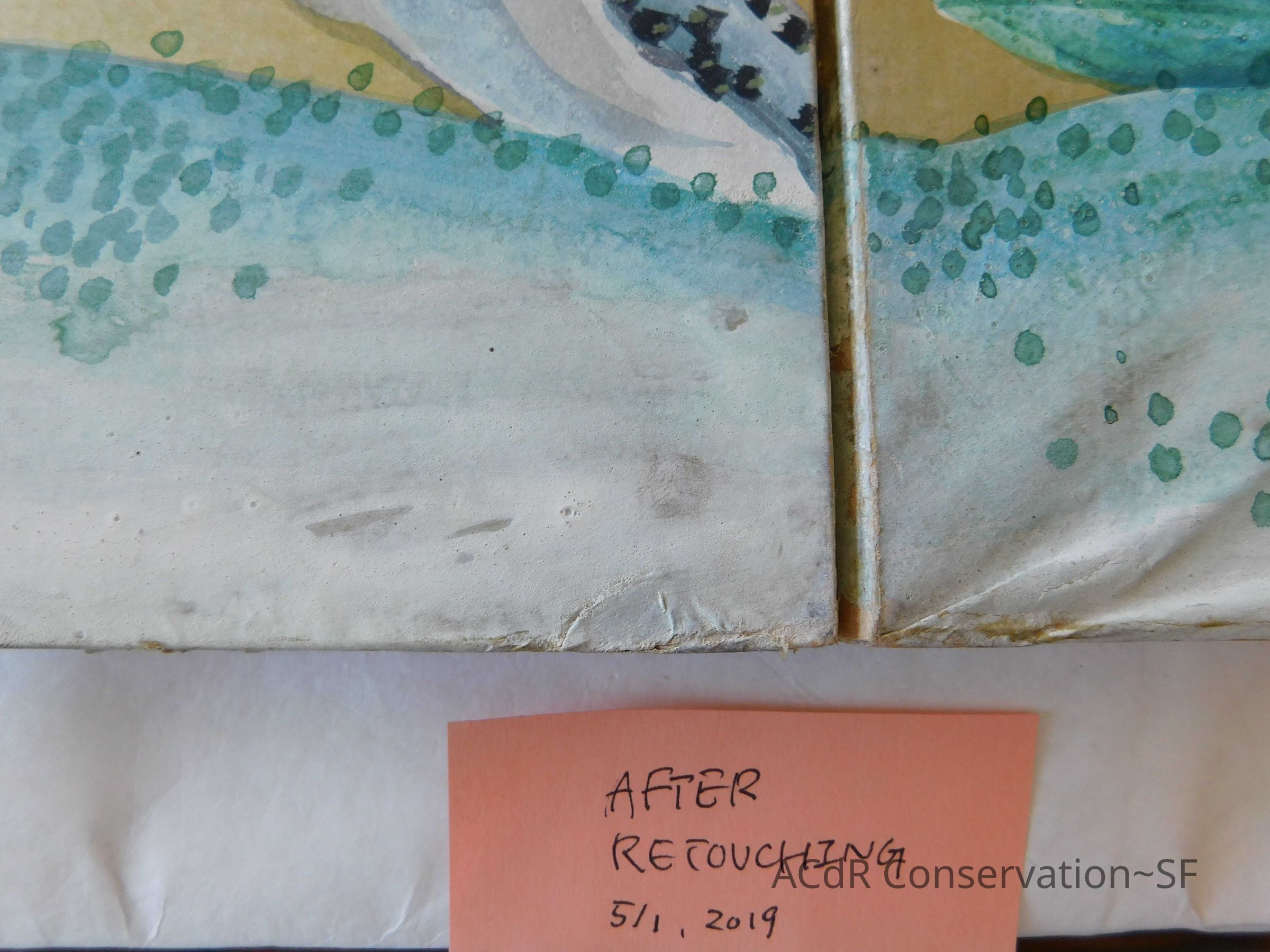

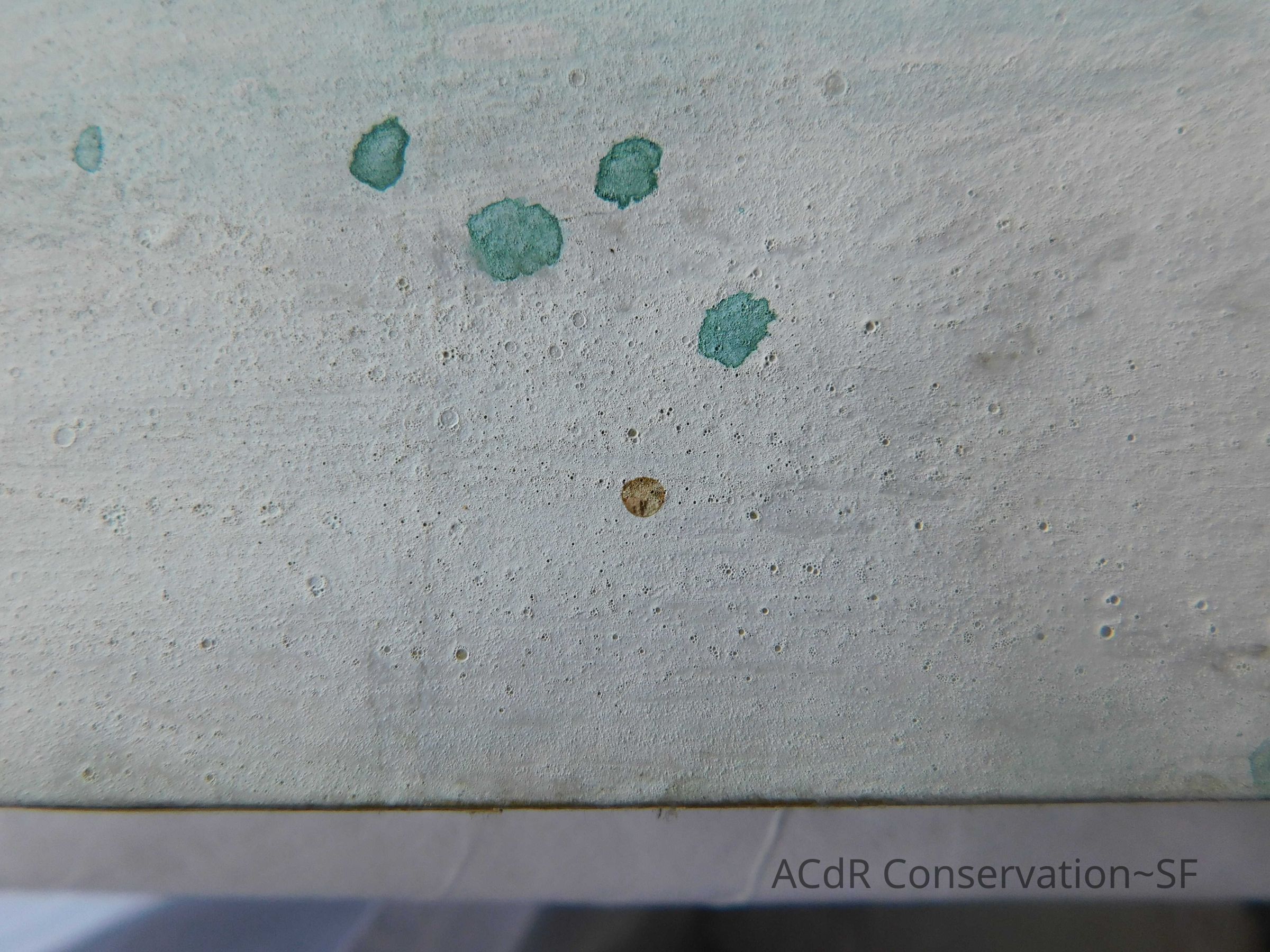

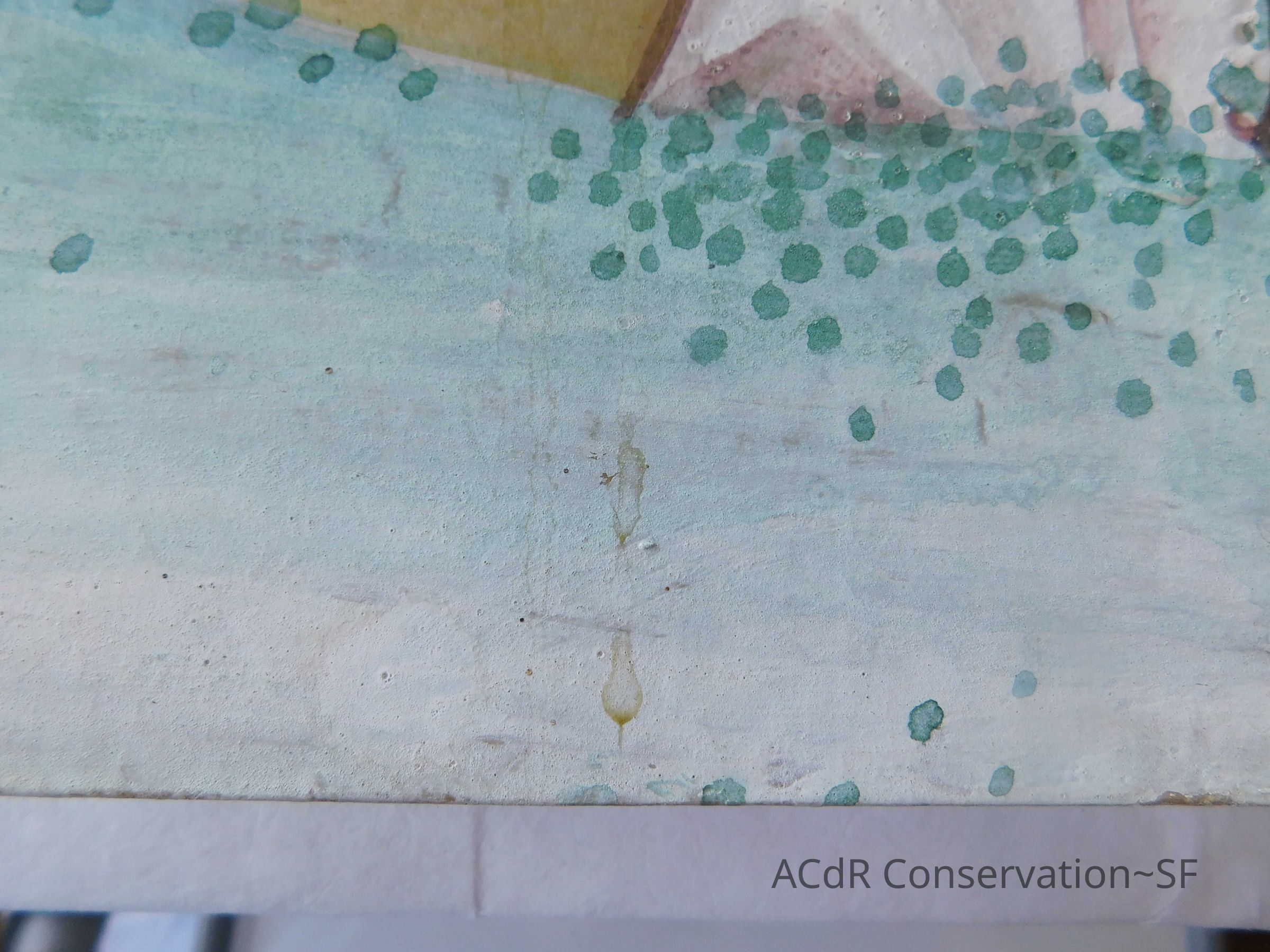

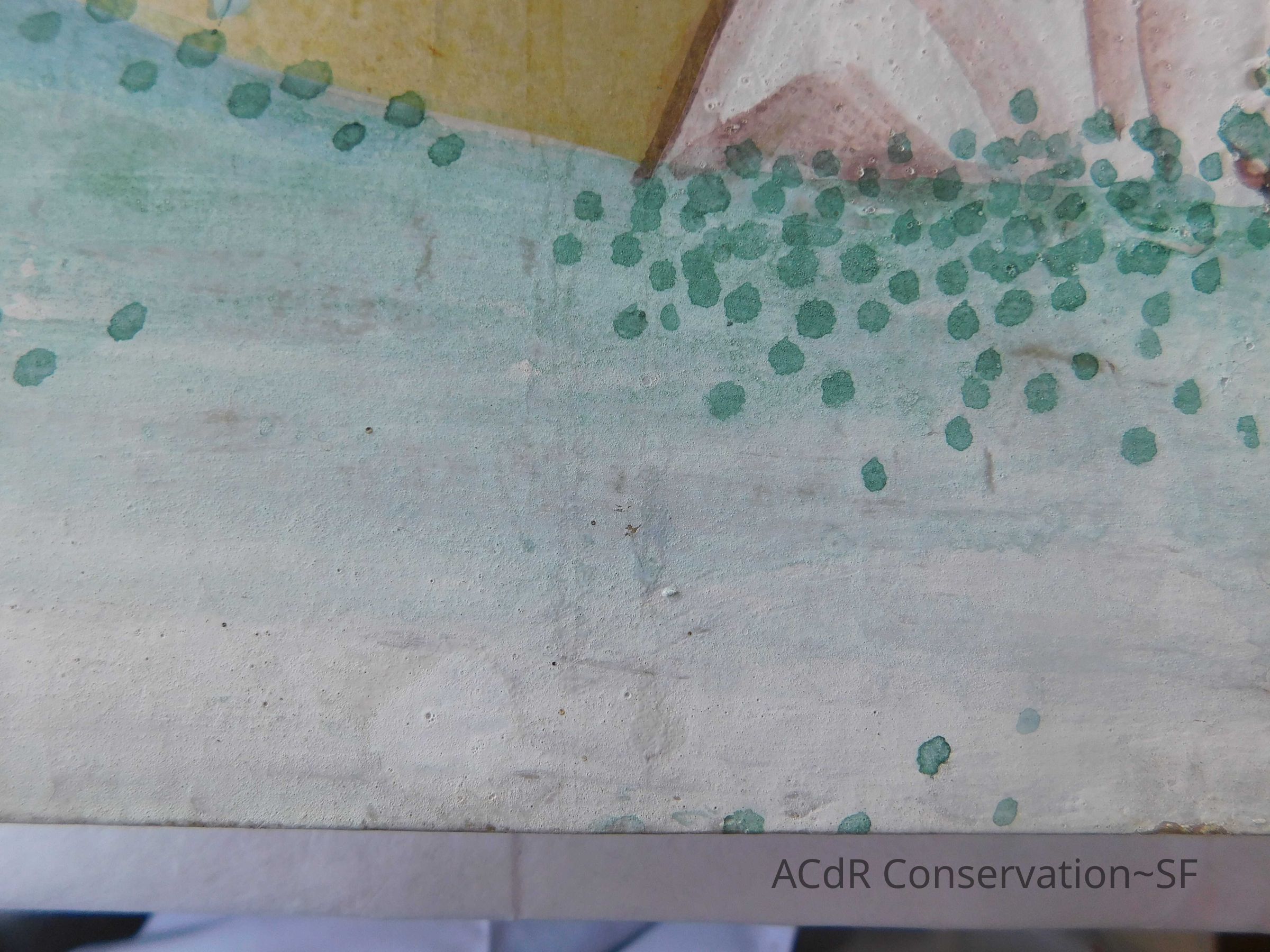

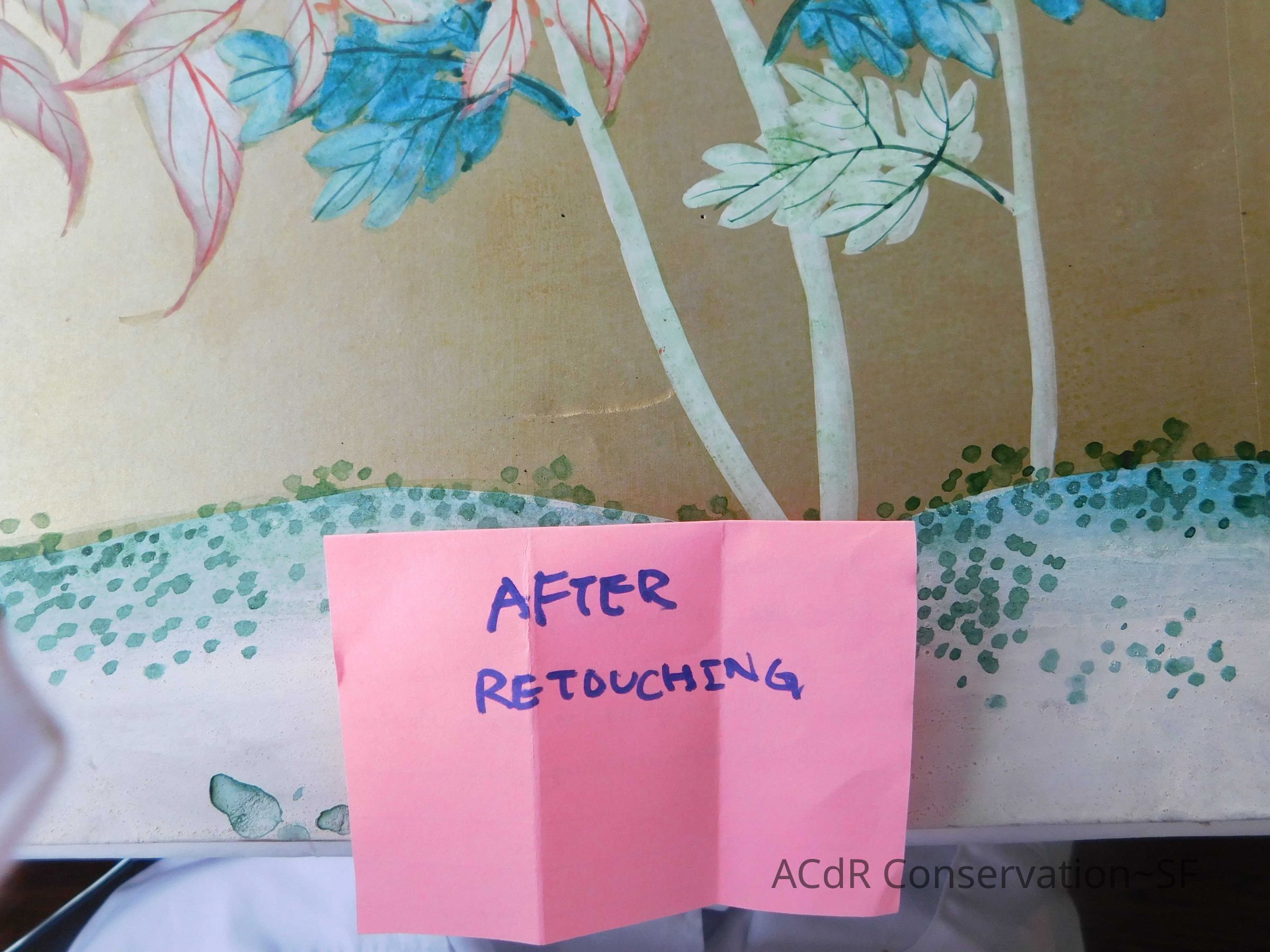

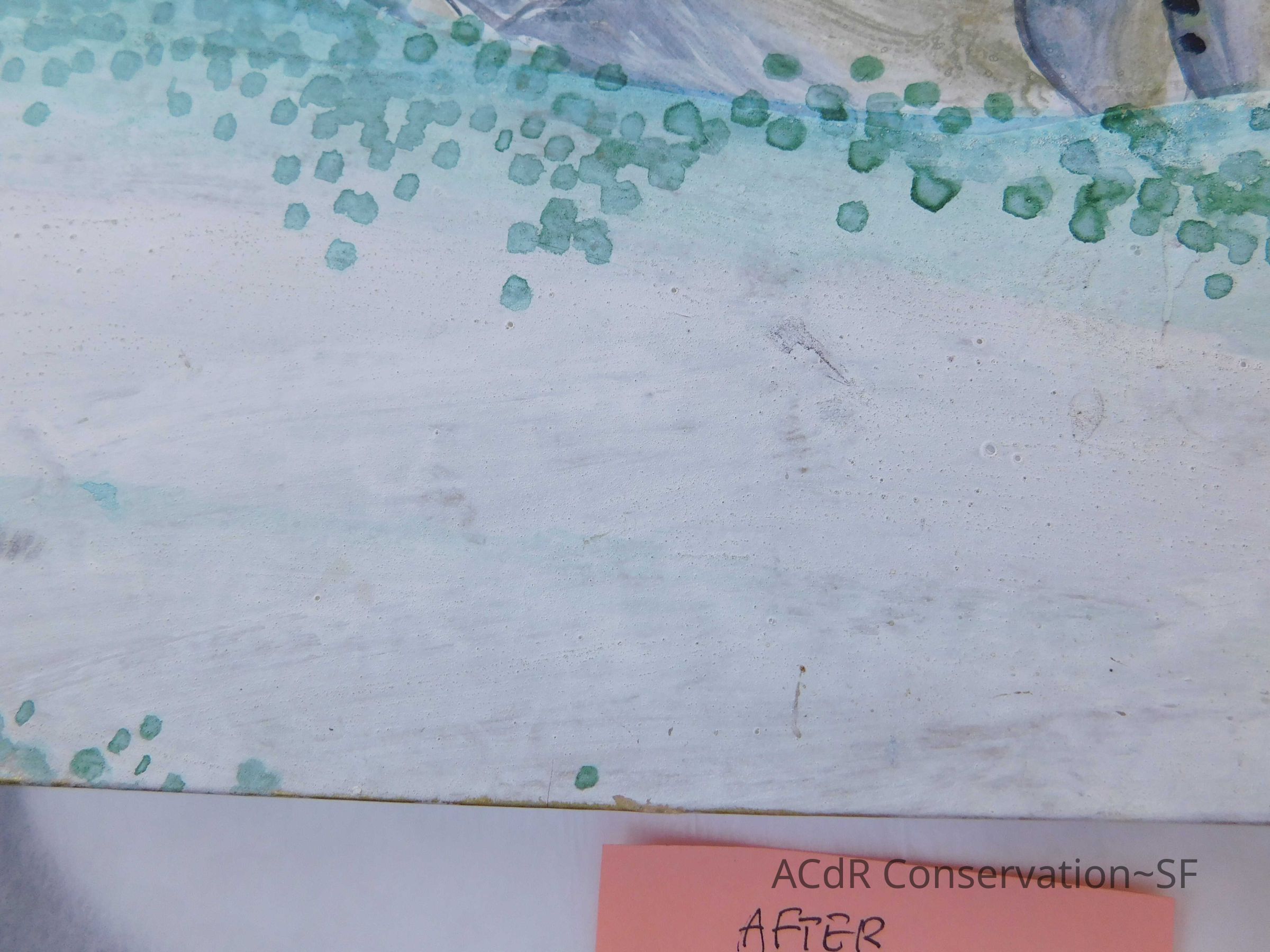

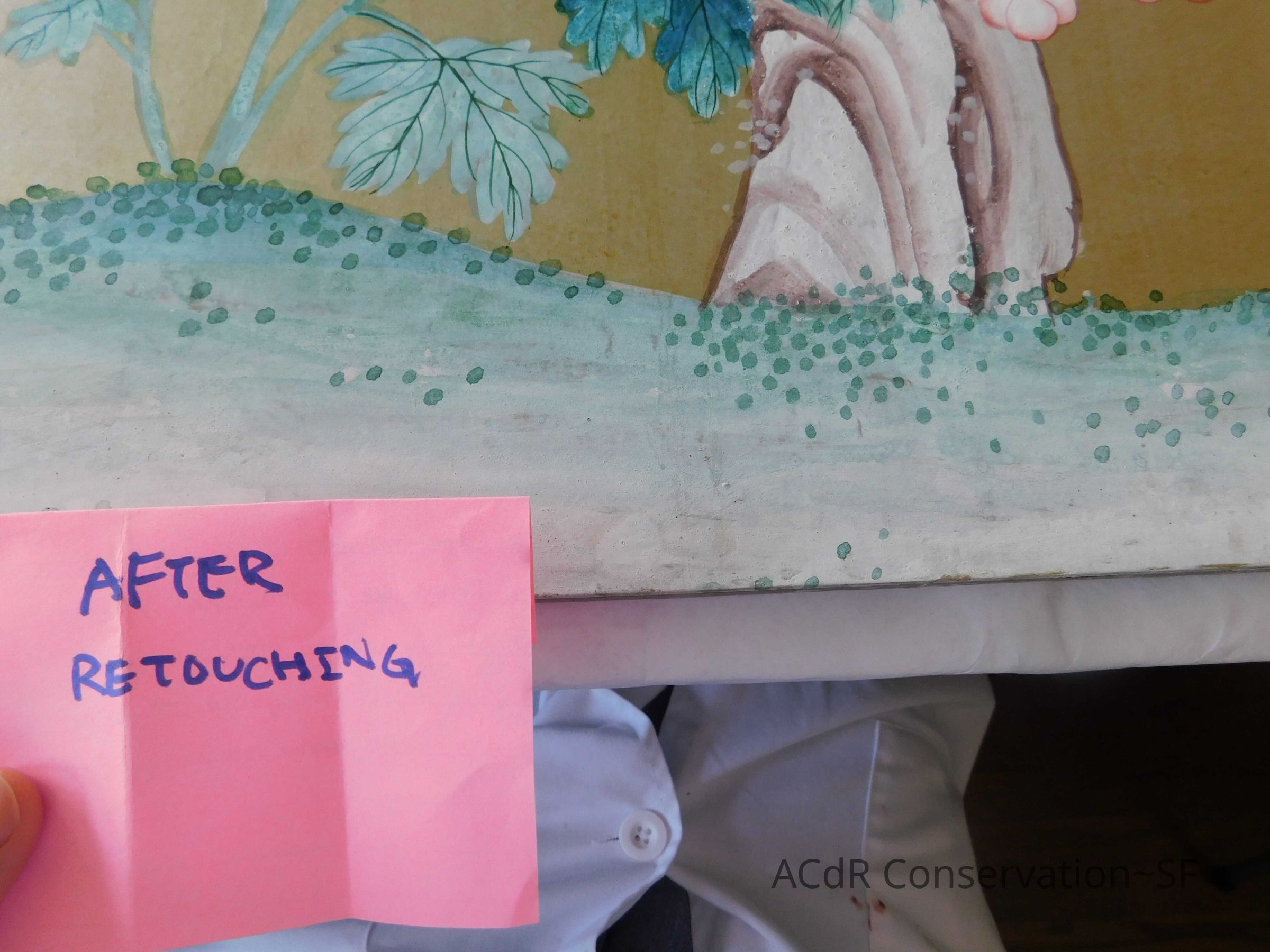

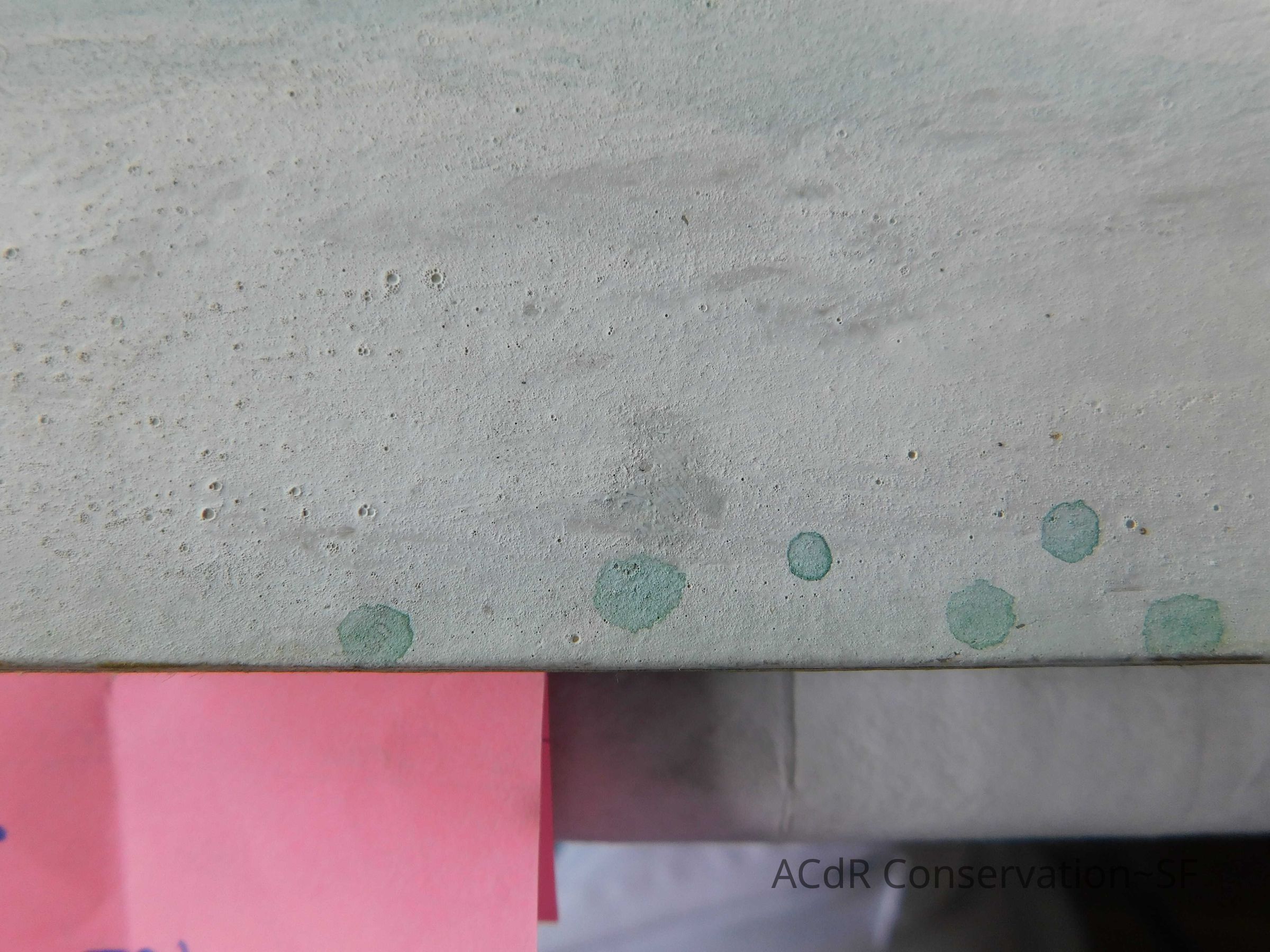

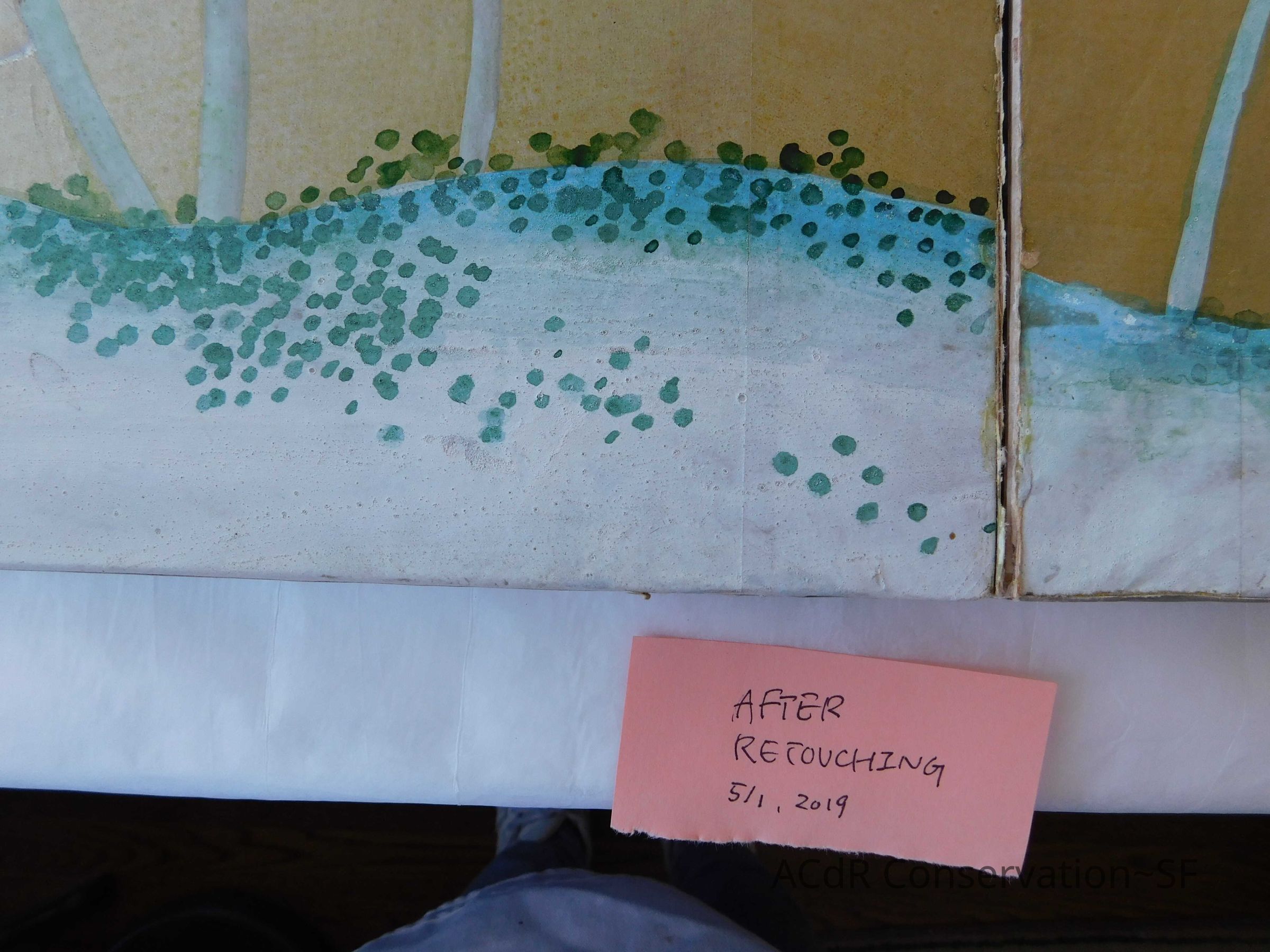

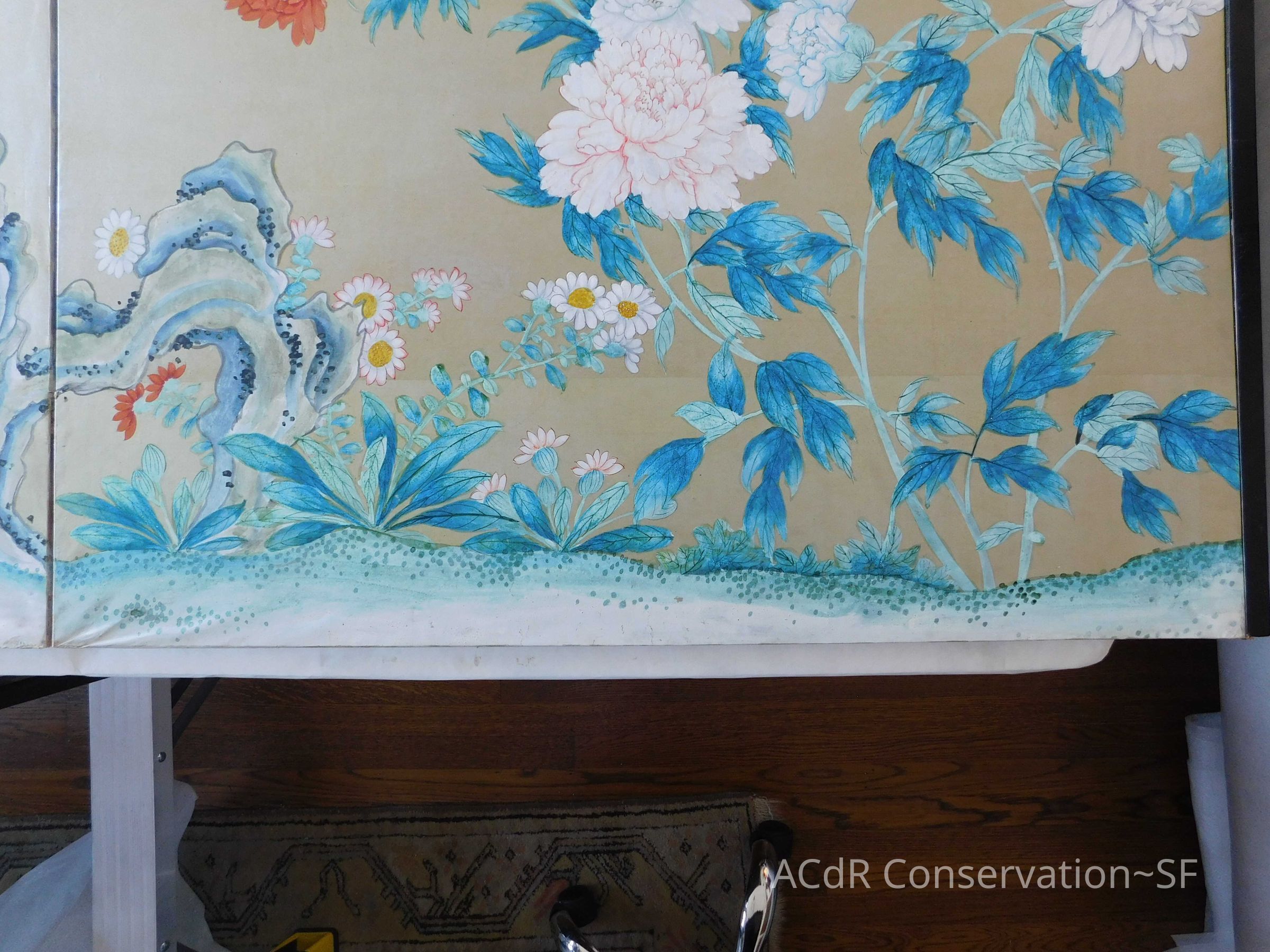

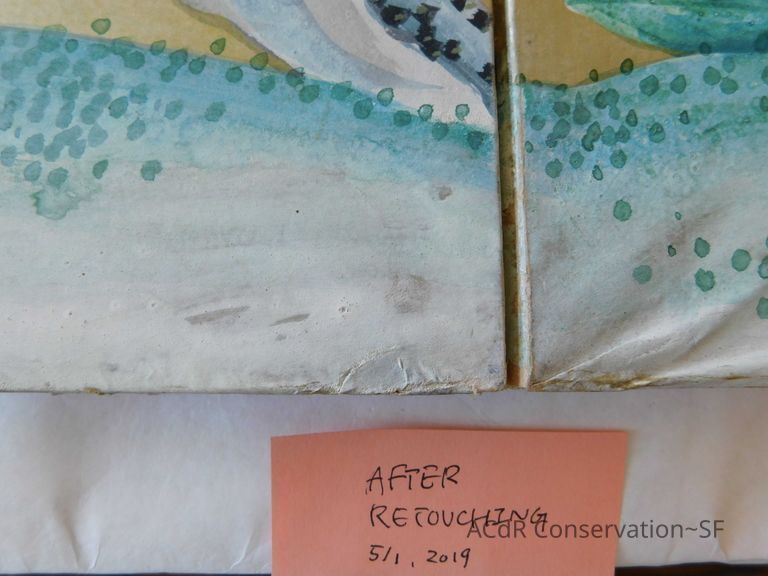

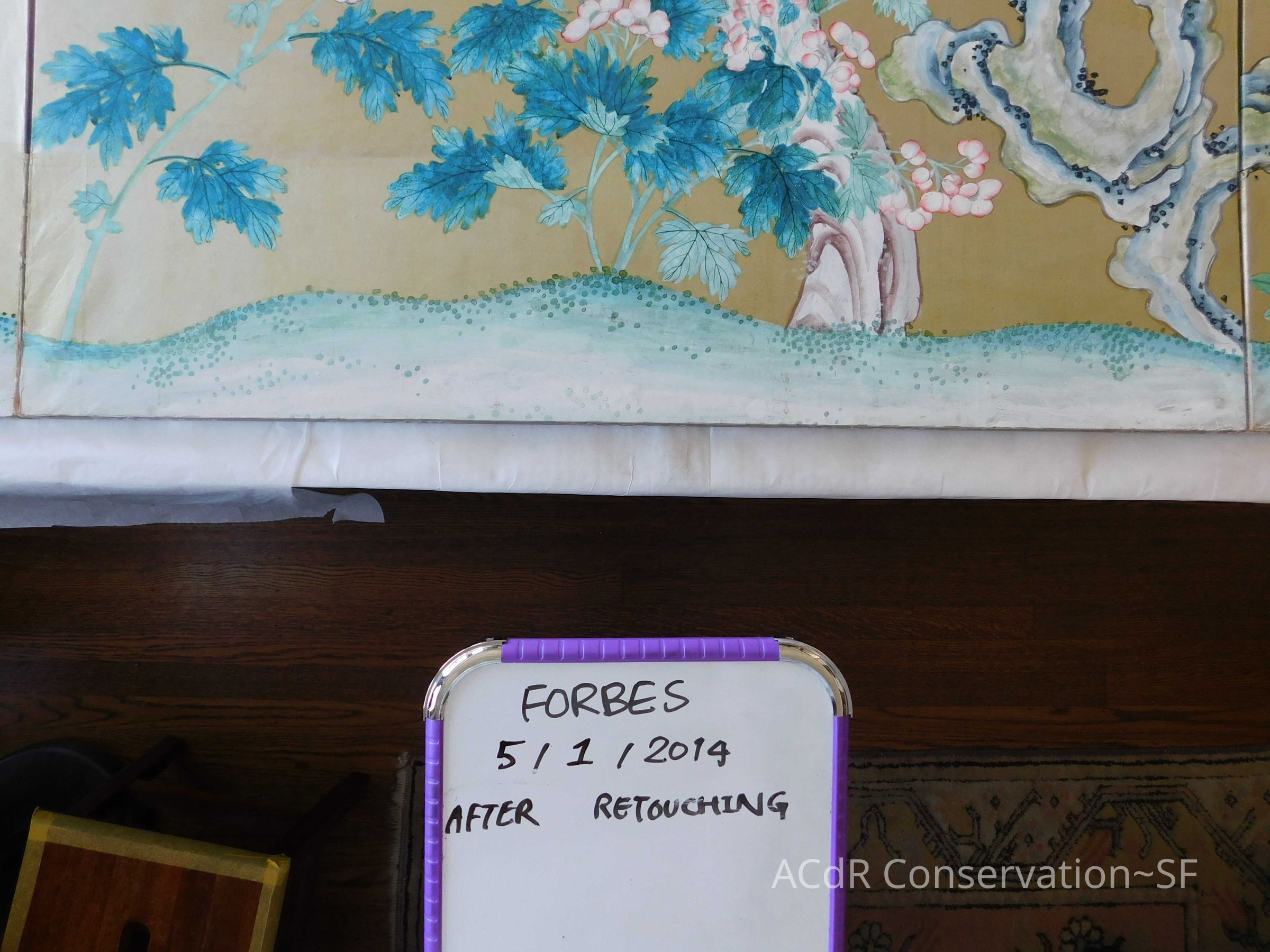

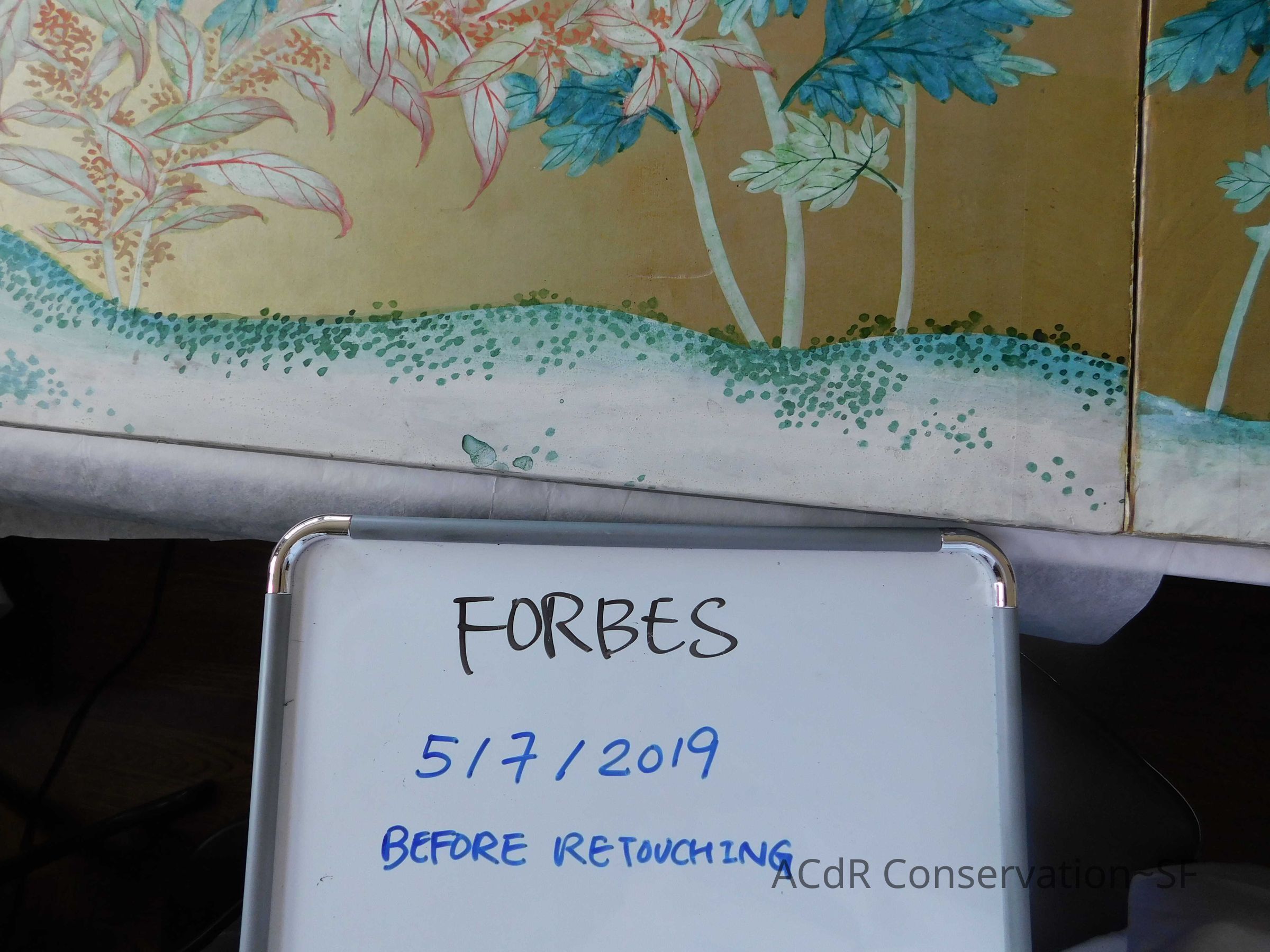

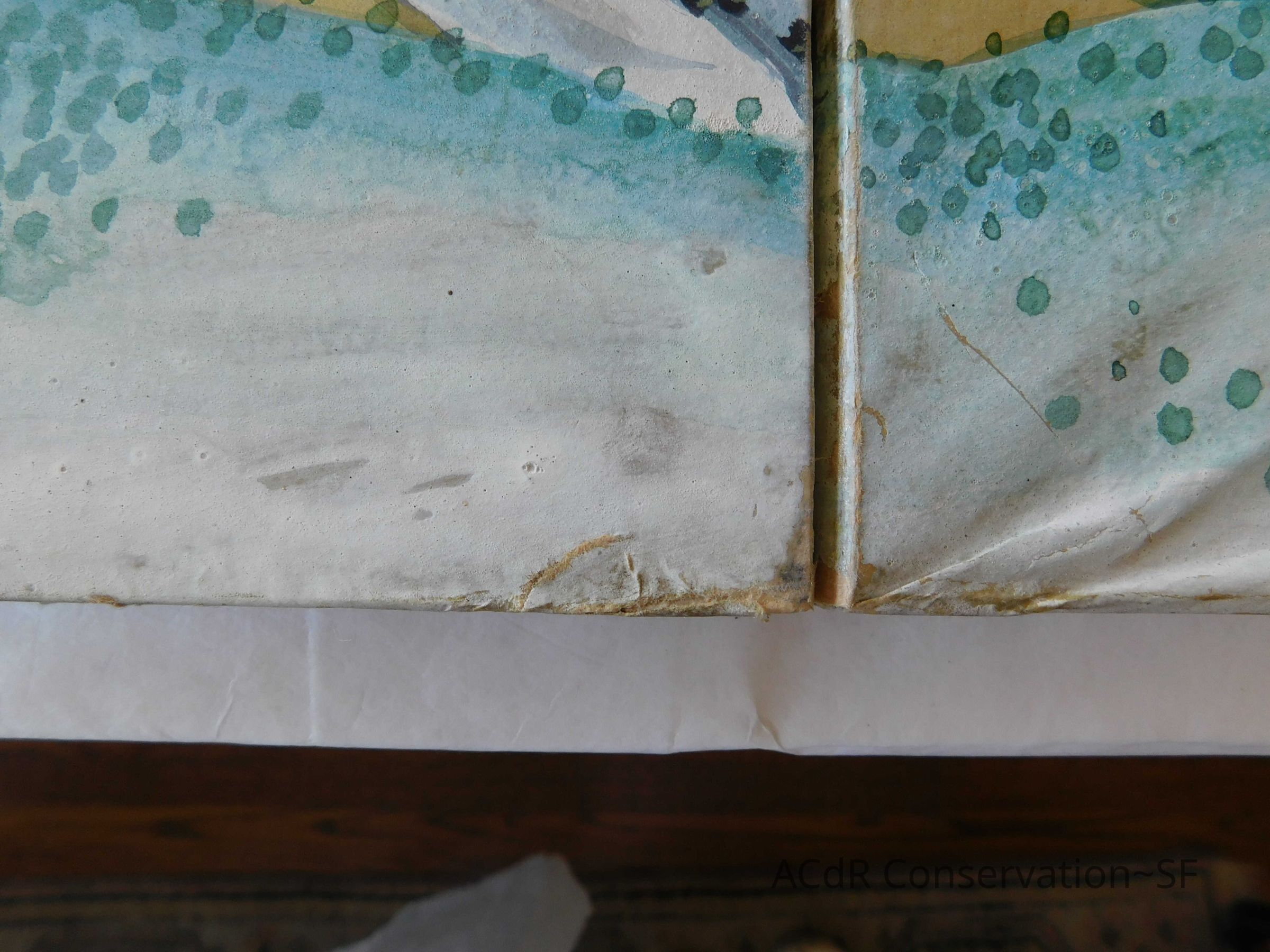

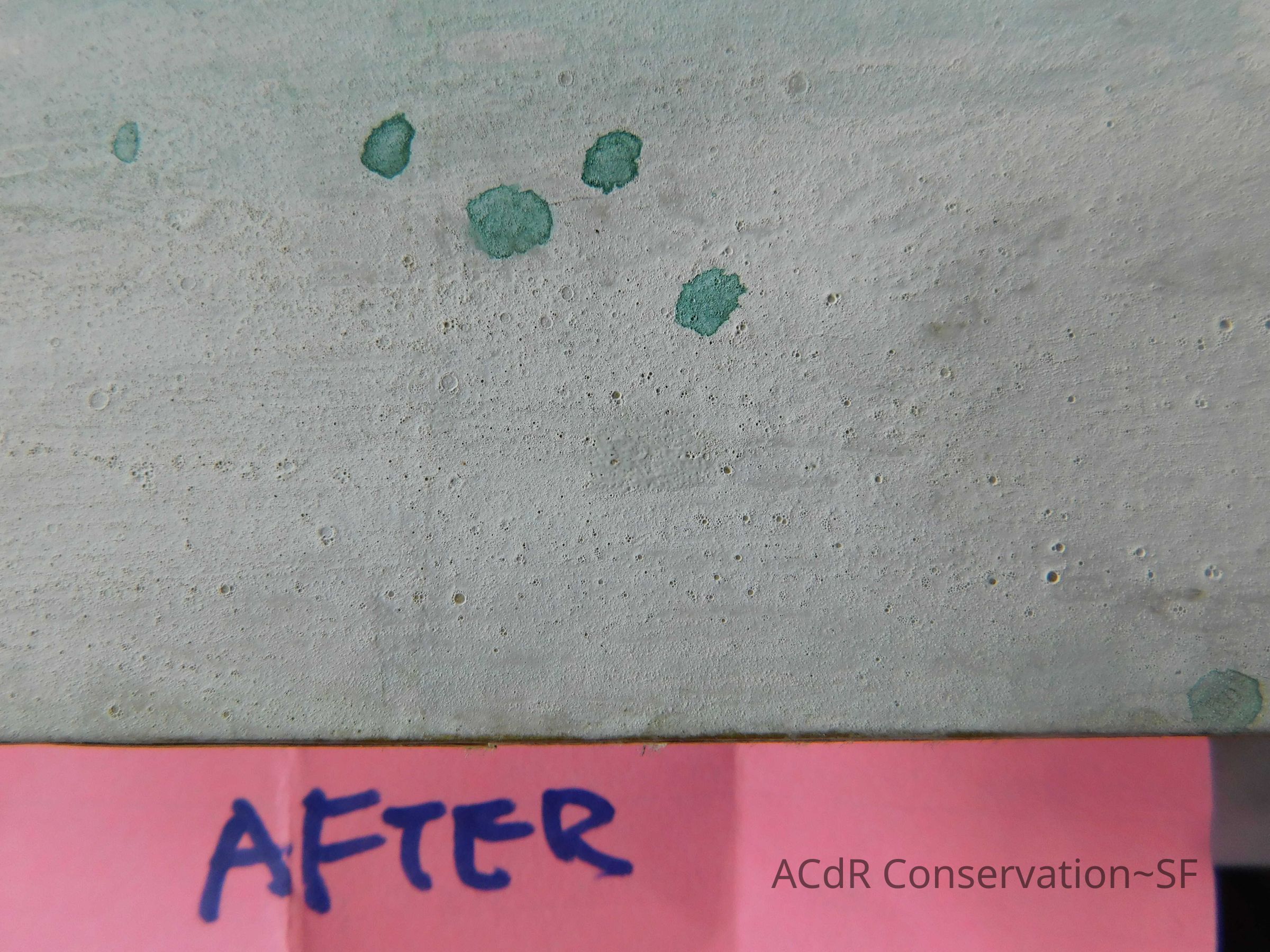

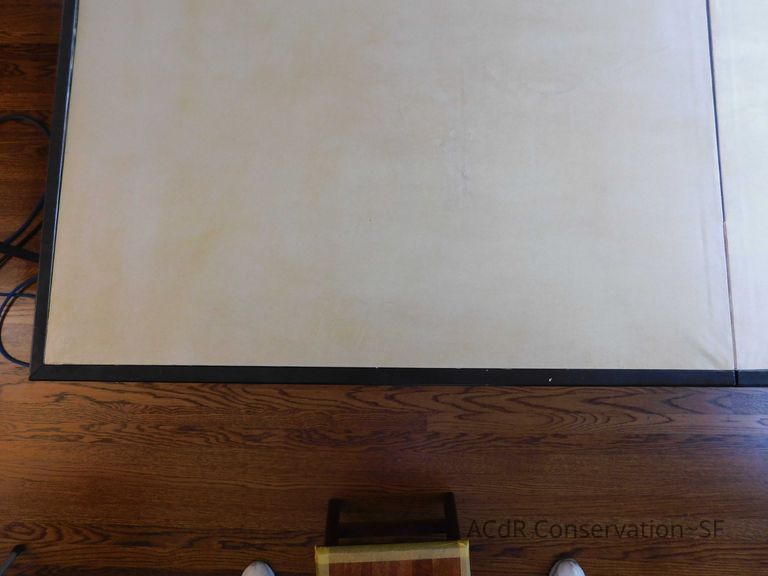

Retouched Bottom part of front side, retouch hole repairs with acrylics mixed with gloss medium (mars black and bone black). Retouched dirty tideline at the bottom of the screen. Attempted cleaning the dirty spot at the top of screen and retouched.

General Repair

May 3, 2019 - May 7, 2019

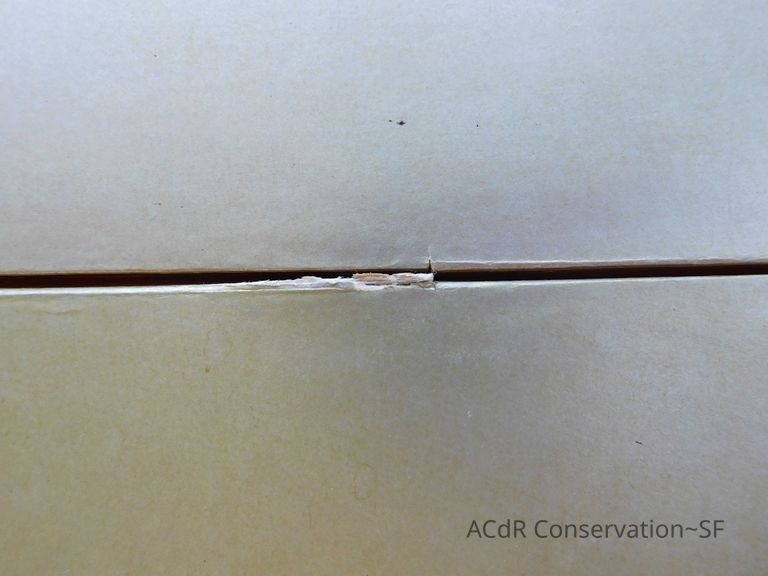

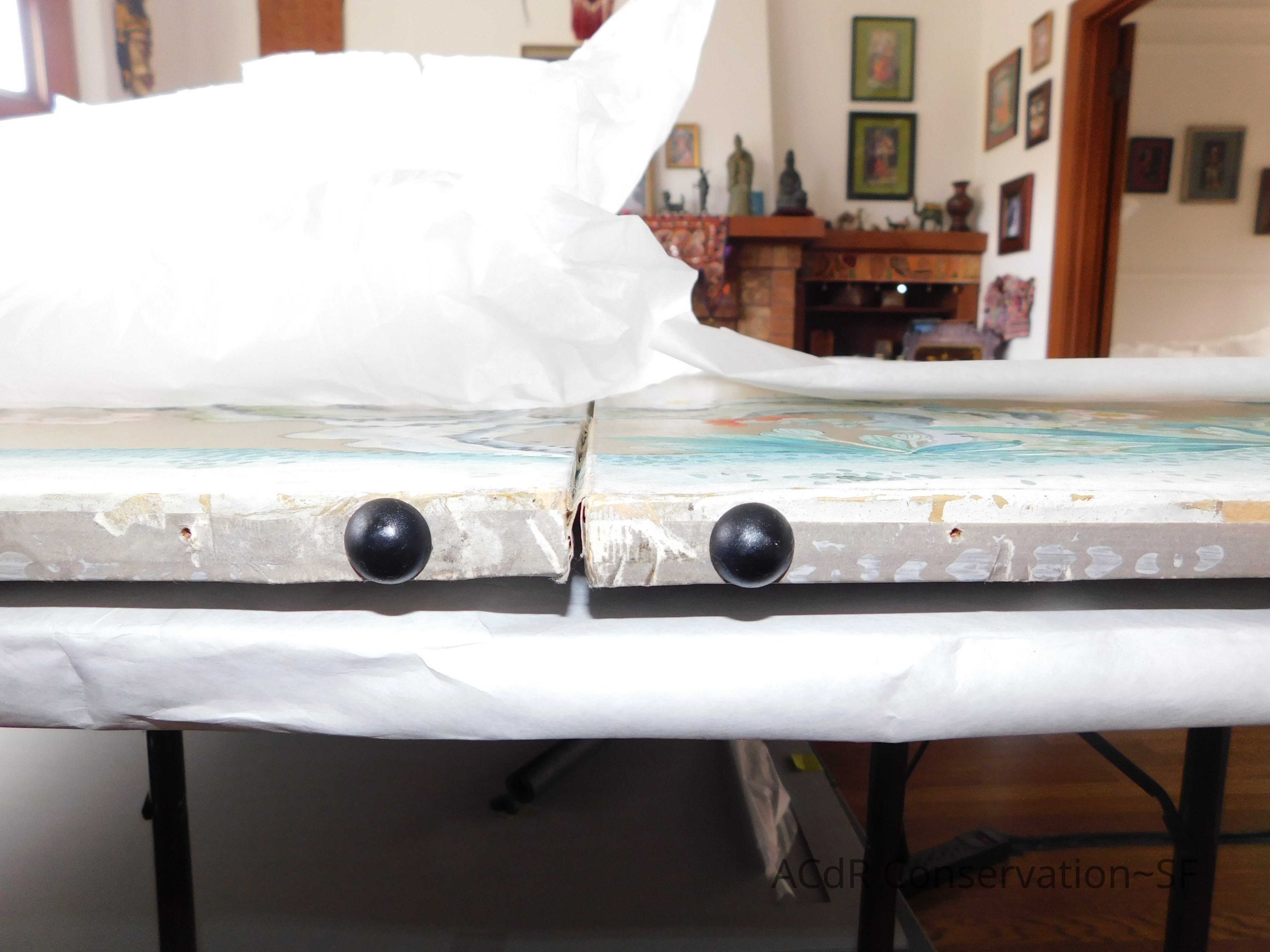

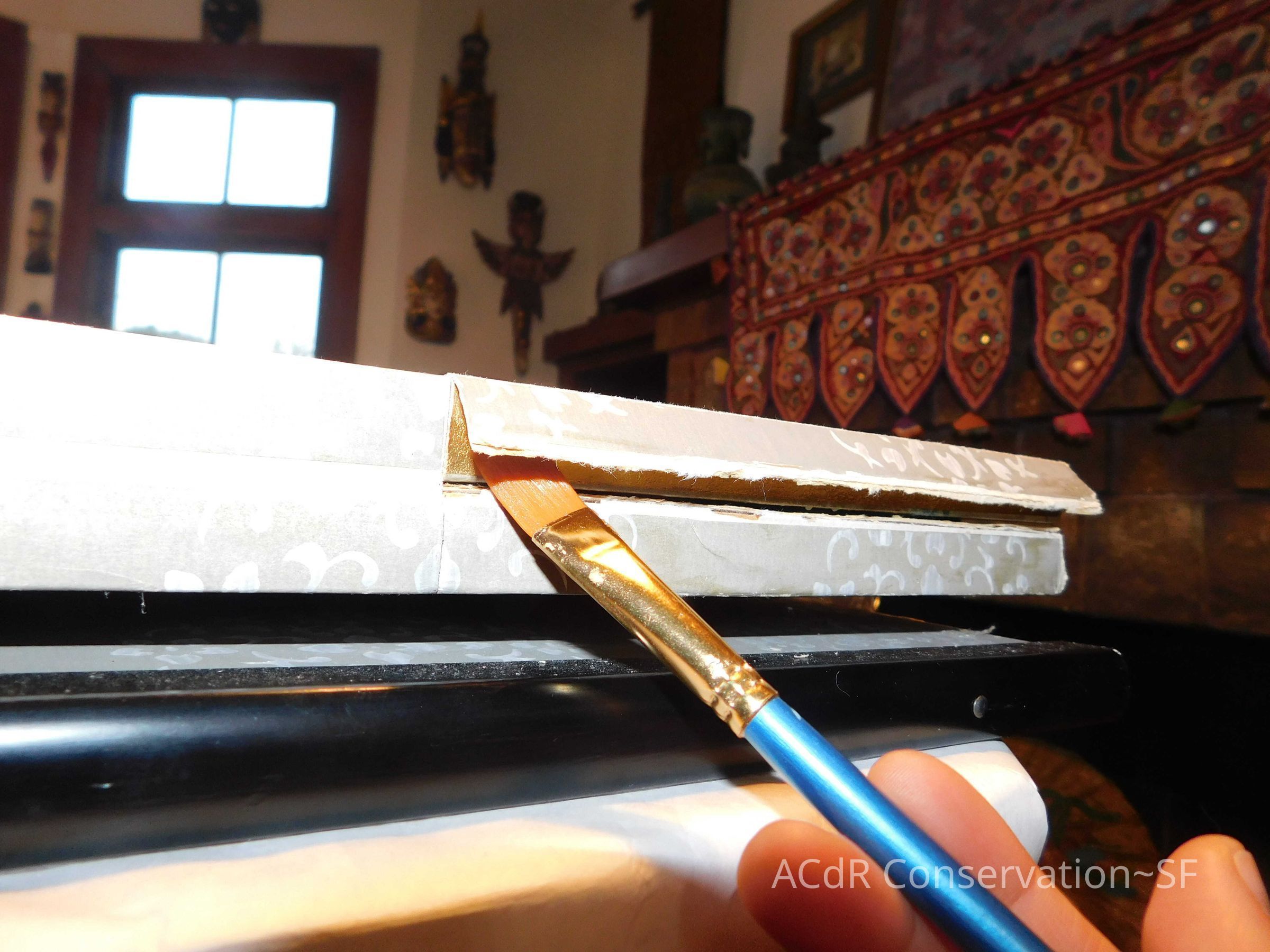

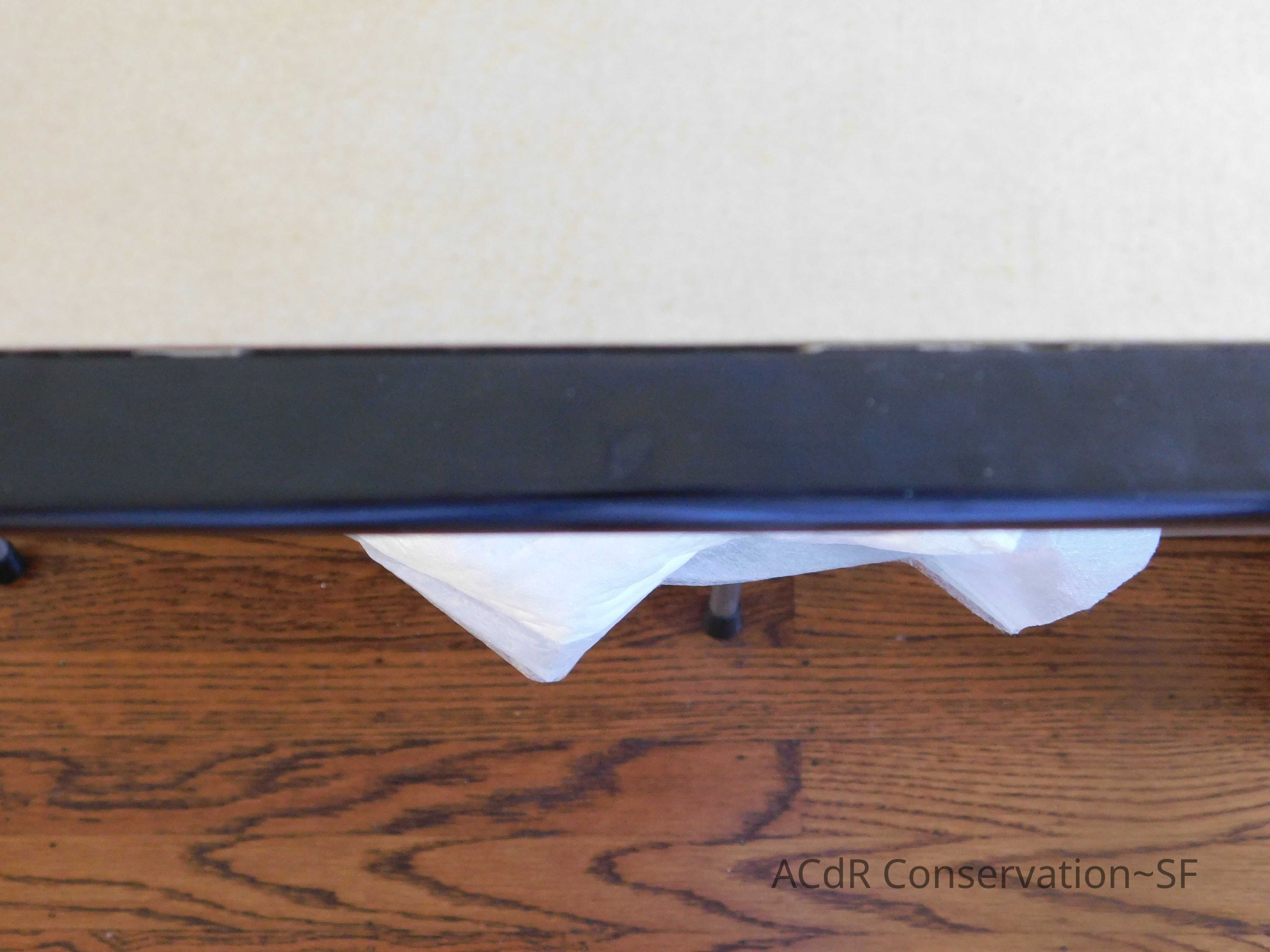

Attached hinge on back side and re-attached hinge on front side (broke again).
